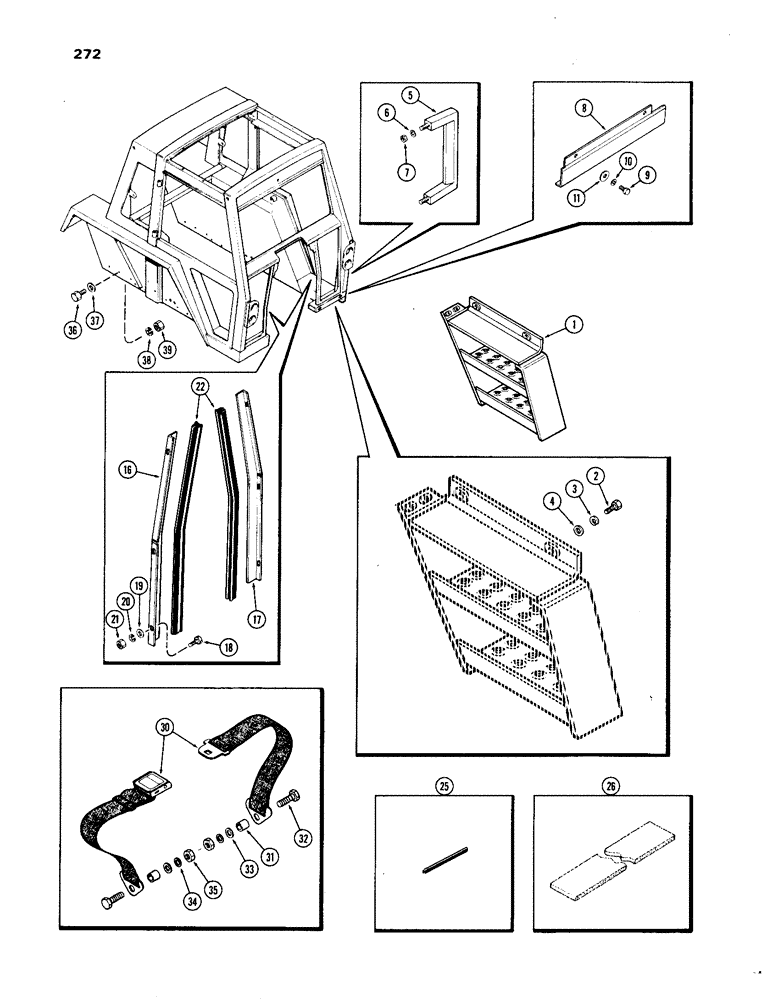

Запчасти Case IH 1270 (272) - CAB ATTACHMENTS (09) - CHASSIS/ATTACHMENTS

1

F89730

STEP

ASSY. - cab mounting

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Steps Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Steps 3/8"

4шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", steps

4шт.

5

A60530

HANDLE

- cab mounting

1шт.

6

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , Handles 3/8"

2шт.

7

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex., handles

2шт.

8

F89690

BRACKET

PANEL - battery access, covers

1шт.

9

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex., covers

2шт.

10

192-45

LOCK WASHER

- lock, 5/16", covers

2шт.

11

195-80

WASHER - 3/8 x 1-1/8 x 1/16", covers

2шт.

12

A31076

GROMMET

- wire (L.H. rear), covers

1шт.

13

353-408

PLUG,Dome, .750" hole, Nylon

- port hole, 3/4" (w/o air conditioners), covers

2шт.

16

A64130

GUARD

FILLER - dust shield, R.H. front, covers

1шт.

17

A64131

GUARD

FILLER - dust shield, R.H. front, covers

1шт.

18

113-30

BOLT - 1/4 x 5/8" N.C. hex., covers

6шт.

19

195-127

WASHER - 1/4 x 9/16 x 3/64", covers

6шт.

20

192-44

LOCK WASHER

- lock, 1/4", covers

6шт.

21

129-517

NUT - 1/4" N.C. hex., covers

6шт.

22

A62885

SEAL

- dust shield (90" long), covers

1шт.

Attached with adhesive 345-21 order glass from Fig. 280

1шт.

25

NSS

NOT SOLD SEPARAT

MOLDING - under hoses (6" long) (Order F63578), covers

2шт.

F63578

GASKET

MOLDING - ("U" type 24-1/2" long), covers

1шт.

26

F63365

FOAM - rear (prior to cab ser. no. 7814176), covers

1шт.

30

A66391

SAFETY BELT

SAFETY BELT

2шт.

31

A60907

BUSHING

SPACER - anchor bolt, seat belts

2шт.

32

A61946

STEP BOLT

BOLT - shoulder, seat belt anchor

2шт.

33

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16", seat belts

2шт.

36

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex., seat belts

18шт.

36

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex. (L.H. side), seat belts

2шт.

36

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex. (thru hat section), seat belts

2шт.

37

195-525

WASHER,3/8", SAE

- 3/8 x 1-1/8 x 1/16", seat belts

42шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Seat belts 3/8"

22шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Seat belts 3/8"-16, G5

20шт.
