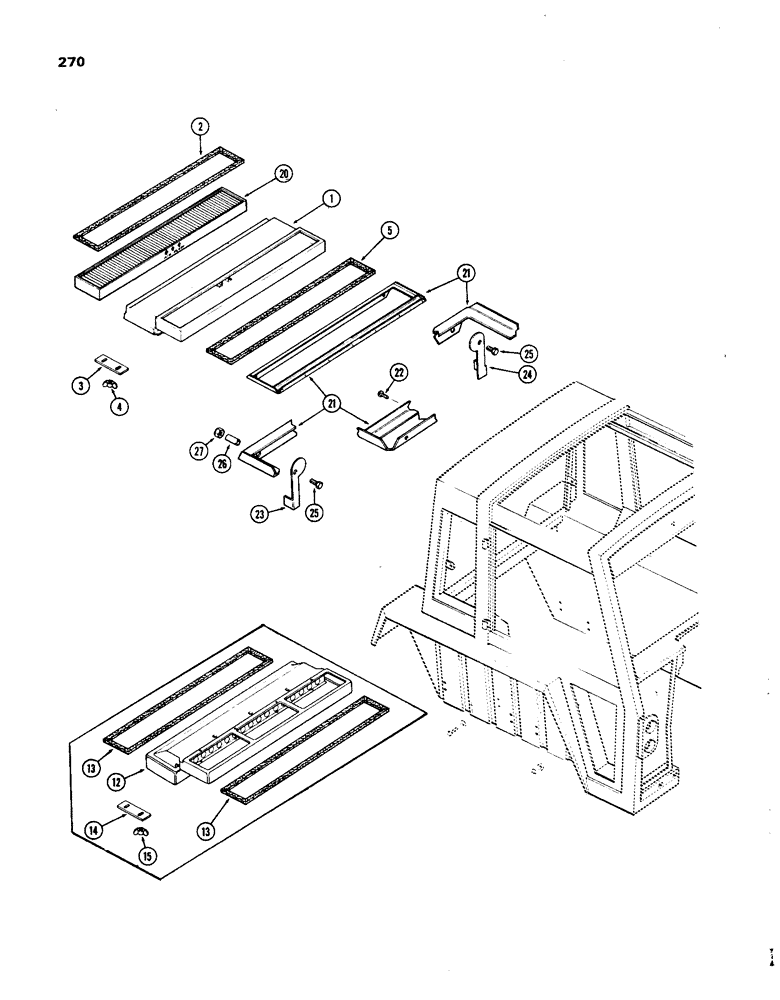

Запчасти Case IH 1270 (270) - CAB, AIR FILTER, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

A66393

KIT - outside air filter w/metal housing (Mach. Item) (1st used cab ser. no. 7800701) (Replaces A65701), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - filter (Order A66393)

1шт.

2

A44660

GASKET -, Serial Range: filter-housing

1шт.

3

NLS

NO LONGER SERVICED

- retaining, air filter

2шт.

4

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

5

F63674

SEAL

GASKET -, Serial Range: housing-cab

1шт.

A65701

KIT - outside air filter w/plastic housing (Mach. Item) (used prior to cab ser. no. 7800701) (Order A66393), Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - (Order A66393)

1шт.

13

A44500

GASKET

- filter & housing

2шт.

14

A44436

BAR

- retaining, air filter

2шт.

15

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

2шт.

20

A42573

FILTER

- air intake

1шт.

21

F89645

PLATE

ASSY. - filter inlet

1шт.

22

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" self-tapping Phillips hd.

7шт.

23

F63267

CAM - latch, R.H.

1шт.

24

F63266

LATCH

CAM - latch, L.H.

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

T32262

SPACER - cam bolt

2шт.

27

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" N.C.

2шт.
