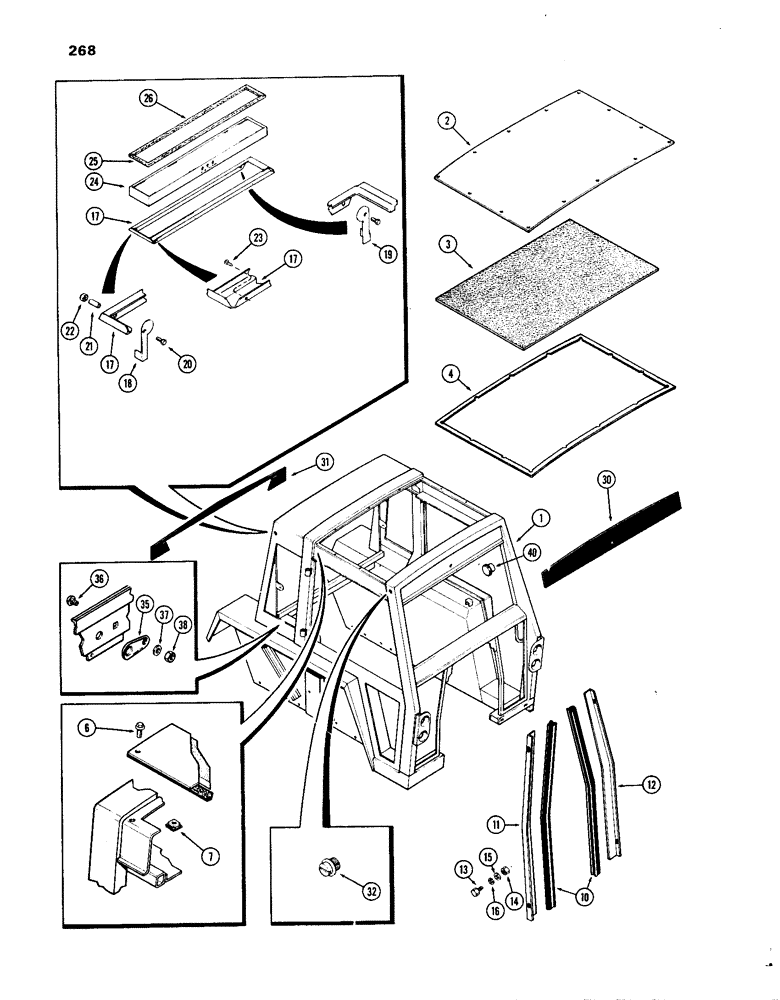

Запчасти Case IH 1270 (268) - CAB, SHEET METAL, USED PRIOR TO CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

F89697

CAB - w/o heater or air conditioner (Mach. Item)

1шт.

F89699

CAB - w/air conditioner (Mach. Item)

1шт.

F89701

CAB - w/heater (Mach. Item)

1шт.

F89703

CAB - w/air conditioner & heater (Mach. Item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63196

ROOF

ASSY. - cab

1шт.

3

F63221

FOAM - roof temperature barrier

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof (25' roll)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex. washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" Tinnerman "J" Type

18шт.

10

A62885

SEAL

- dust shield

2шт.

11

A64130

GUARD

FILLER - dust shield, R.H.

1шт.

12

A64131

GUARD

FILLER - dust shield, L.H.

1шт.

13

113-30

BOLT - (1/4 x 5/8" N.C. hex.)

6шт.

14

129-517

NUT - hex. (1/4" N.C.)

6шт.

15

195-127

WASHER - (1/4 x 9/16 x 3/64")

6шт.

16

192-44

LOCK WASHER

- lock (1/4")

6шт.

17

F89645

PLATE

ASSY. - filter inlet

1шт.

18

F63267

CAM - latch, R.H.

1шт.

19

F63266

LATCH

CAM - latch, L.H.

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

T32262

SPACER - cam bolt

2шт.

22

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna

2шт.

23

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" phillips, self-tapping

7шт.

24

A42573

FILTER

- air intake (See Figure 270 for outside filter kit)

1шт.

25

F63331

SEAL - filter sides, 1/4 x 3/4 x 5-3/32"

2шт.

26

F63332

SEAL

SEAL - filter front & rear, 1/4 x 3/4 x 38-1/2"

2шт.

30

A42582

DECAL

- front panel

1шт.

31

321-1915

DECAL - rear crown

1шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

35

F12598

PLATE

COVER - utility

1шт.

36

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4 x 1/2" N.C. carr.

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. Esna

1шт.

40

353-408

PLUG,Dome, .750" hole, Nylon

- post holes, 3/4" (w/o air conditioner)

2шт.
