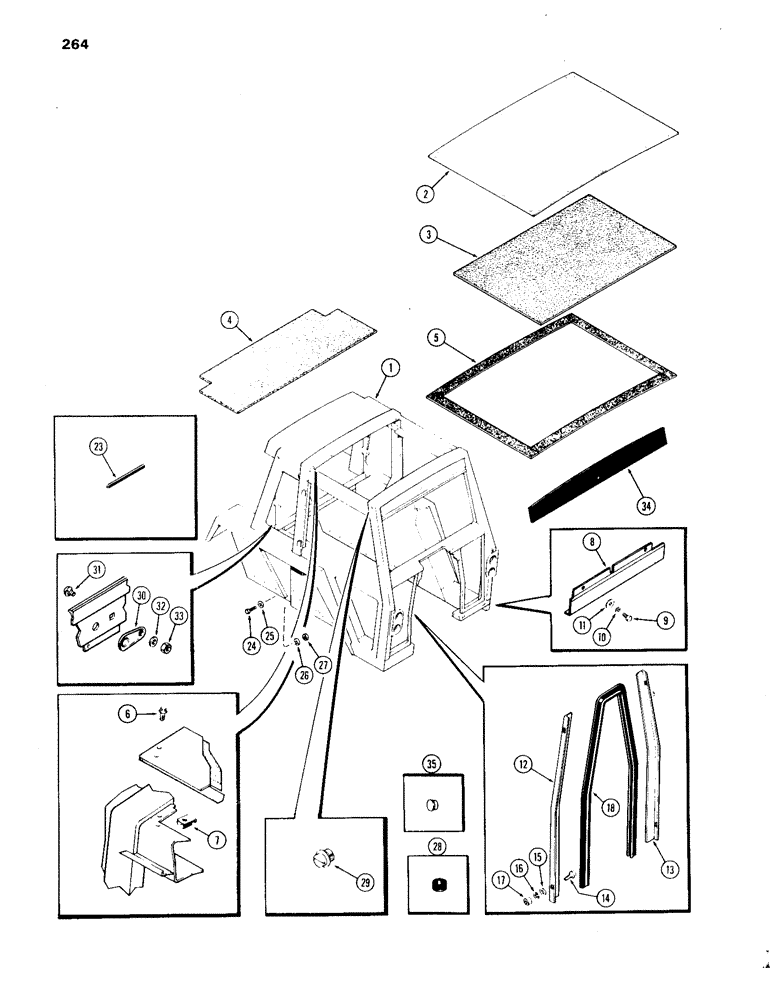

Запчасти Case IH 1270 (264) - CAB, SHEET METAL, FIRST USED CAB SERIAL NUMBER 7814176 (09) - CHASSIS/ATTACHMENTS

F89861

CAB - w/o heater & air conditioner (Mach. Item)

1шт.

F89862

CAB - w/air conditioner (Mach. Item)

1шт.

F89863

CAB - w/heater (Mach. Item)

1шт.

F86864

CAB - w/air conditioner & heater (Mach. Item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63196

ROOF

ASSY. - cab

1шт.

4

F63221

FOAM - roof temperature barrier

1шт.

4

F63812

BAR

FOAM - rear, roof temperature barrier

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - ROOF (1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof (25' roll)

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- (1/4 x 3/4" N.C. hex. w/neoprene washer)

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- (1/4" Tinnerman)

18шт.

8

F89690

BRACKET

PANEL - battery access

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

11

195-521

WASHER,5/16", SAE

- (3/8 x 1-1/8 x 1/16")

2шт.

12

A64130

GUARD

FILLER - dust shield, R.H.

1шт.

13

A64131

GUARD

FILLER - dust shield, L.H.

1шт.

14

113-30

BOLT - (1/4 x 5/8" N.C. hex.)

6шт.

15

195-127

WASHER - (1/4 x 9/16 x 3/64")

6шт.

16

192-44

LOCK WASHER

- lock (1/4")

6шт.

17

129-517

NUT - (1/4" N.C. hex.)

6шт.

18

A62885

SEAL

- dust shield (90" long)

1шт.

To be attached with adhesive 345-21. Order glass from Fig. 280

1шт.

23

NSS

NOT SOLD SEPARAT

MOLDING - under hoses (6" long) (Order F63578)

2шт.

To be attached with adhesive 345-21. Order glass from Fig. 280

1шт.

F63578

GASKET

MOLDING - ("U" type, 24-1/2" long)

1шт.

24

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- (3/8 x 1" N.C. hex.), cab sides

18шт.

24

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- (3/8 x 3/4" N.C. hex.), L.H. side

2шт.

24

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- (3/8 x 1-3/4" N.C. hex.), thru hat section

2шт.

25

195-525

WASHER,3/8", SAE

-(3/8 x 1-1/8 x 1/16")

42шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

28

A31076

GROMMET

- (L.H. fender)

1шт.

29

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

1шт.

30

F12598

PLATE

COVER - utility

1шт.

31

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - (1/4 x 3/4" N.C. rd. hd. sq. neck)

1шт.

32

195-102

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

1шт.

33

86625061

NUT,1/4"-20, GB

NUT - lock (1/4" N.C. hex., Esna)

1шт.

34

A42582

DECAL

- front panel

1шт.

35

353-408

PLUG,Dome, .750" hole, Nylon

- nylon, 3/4" hole (inside frt. port w/o AC)

2шт.
