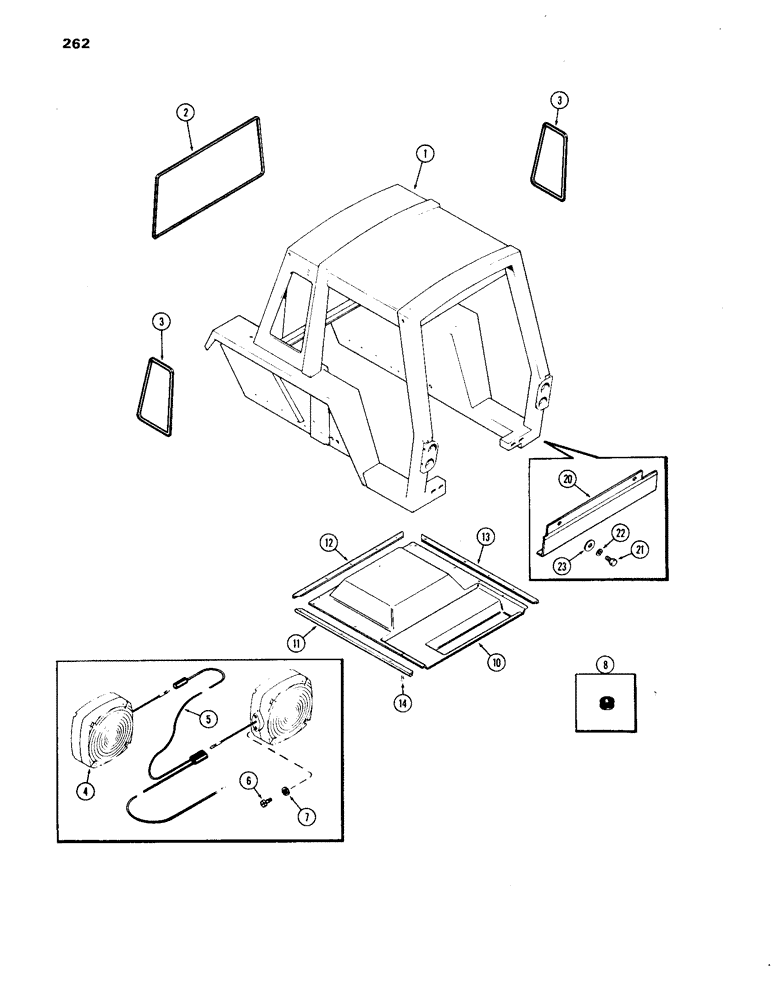

Запчасти Case IH 1270 (262) - ROLLOVER PROTECTIVE STRUCTURE, USED PRIOR TO TRACTOR SERIAL NUMBER 8727601 (09) - CHASSIS/ATTACHMENTS

F89712

ATTACHMENT - R.O.P.S. (Mach. Item), Includes: Ref. 1 - 23

1шт.

1

F89731

ENCLOSURE ASSY. - protective

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear window opening (Order F63758)

2шт.

3

NSS

NOT SOLD SEPARAT

TRIM - rear window opening (Order F63578)

2шт.

4

F89713

INDICATOR LIGHT

LIGHT - flashing warning (Order from Figure 072)

2шт.

5

F63368

ELECTRICAL WIRE

CABLE - flasher

1шт.

6

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW - 1/4 x 1/2" N.C. flat hd.

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

WASHER - lock, 1/4"

4шт.

8

A31076

GROMMET

2шт.

10

F63451

HEADLINER

1шт.

11

F63452

SOFT TRIM

TRIM - headliner, R.H.

1шт.

12

F63453

SOFT TRIM

TRIM - headliner, rear

1шт.

13

F63454

SOFT TRIM

TRIM - headliner, L.H.

1шт.

14

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" N.C. self-tapping

15шт.

20

F89690

BRACKET

PANEL - battery access

1шт.

21

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex

2шт.

22

192-45

LOCK WASHER

- lock, 5/16"

2шт.

23

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

F63578

GASKET

TRIM - window (50' roll)

1шт.
