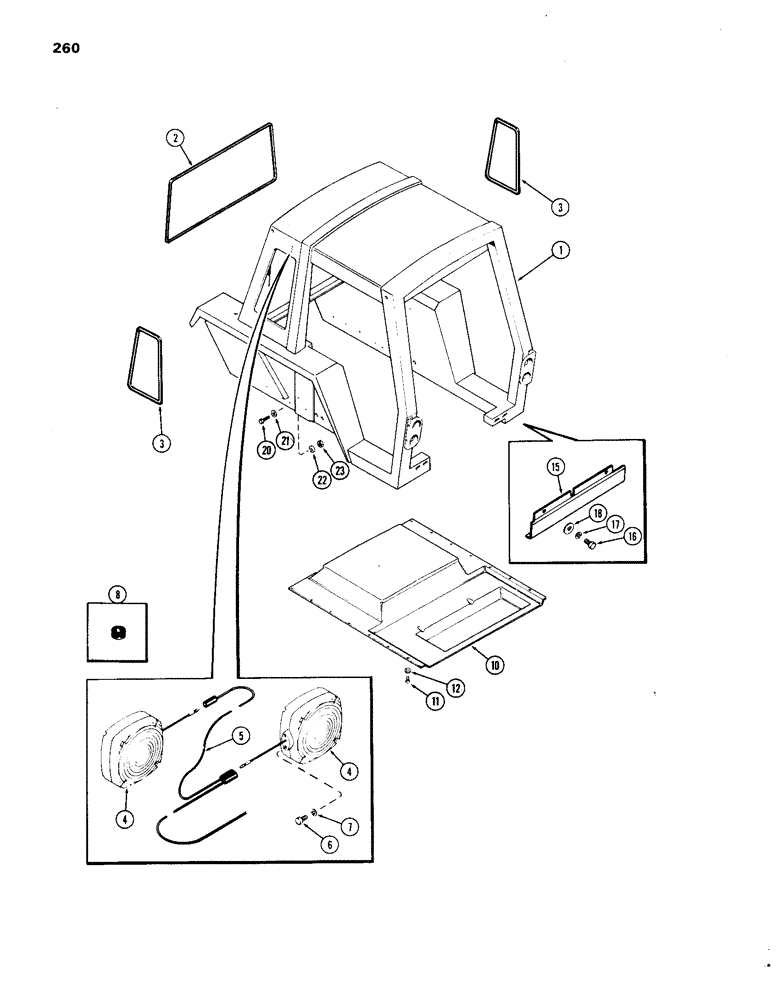

Запчасти Case IH 1270 (260) - ROLLOVER PROTECTIVE STRUCTURE, FIRST USED TRACTOR SERIAL NUMBER 8727601 (09) - CHASSIS/ATTACHMENTS

F89877

ATTACHMENT - R.O.P.S. (Mach. Item), Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

ENCLOSURE ASSY. - welded

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear window (Order F63758)

2шт.

3

NSS

NOT SOLD SEPARAT

TRIM - side window (Order F63578)

2шт.

F63578

GASKET

TRIM - window (50 ft. roll)

1шт.

4

REF

INSTRUCTION

LIGHT - flasher (See Fig. 72)

2шт.

5

F63368

ELECTRICAL WIRE

CABLE - flasher light

1шт.

6

113-69

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

- 1/4 x 1/2" N.C. hex.

4шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

WASHER - lock, 1/4"

4шт.

8

A31076

GROMMET

- cable

2шт.

10

F63791

LINING

HEADLINER

1шт.

11

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, #10-16 x 3/4"

19шт.

12

F63765

WASHER

- finishing

19шт.

15

F89690

BRACKET

PANEL - battery access

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

18

195-521

WASHER,5/16", SAE

- plain, 11/32 x 11/16 x 5/64"

2шт.

20

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- mounting, 3/8 x 1" N.C. hex.

18шт.

20

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex.

2шт.

20

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- mounting, 3/8 x 1-3/4" N.C. hex.

2шт.

21

195-25

WASHER,3/8"

- plain, 13/32 x 13/16 x 5/64"

42шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.
