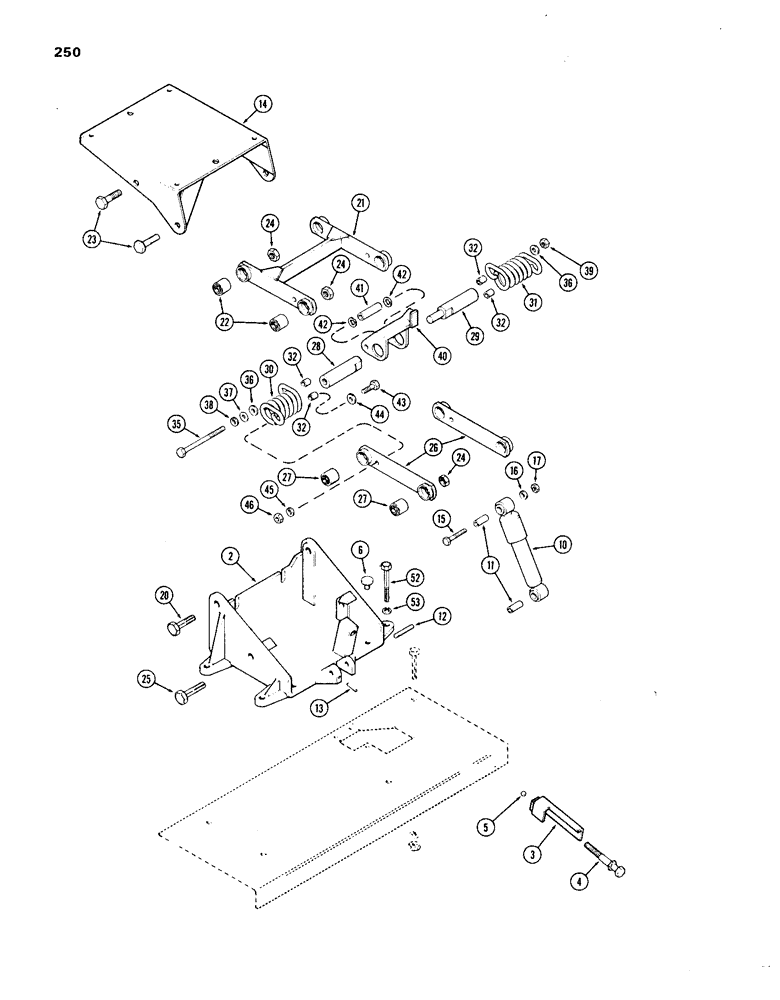

Запчасти Case IH 1270 (250) - SEAT SUSPENSION, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

A62670

SUSPENSION

ASSY. - seat, Includes: Ref. 2 - 46

1шт.

2

A62671

SUPPORT

- seat

1шт.

3

A60675

BRACKET ASSY. - seat adjusting

1шт.

4

A60677

SCREW - seat adjusting

1шт.

5

211-12

BALL,7/16 Dia

- seat adjusting screw, 7/16" dia. steel

1шт.

6

A60333

BUMPER - support arm

2шт.

10

A60342

SHOCK ABSORBER

SHOCK - seat adjusting

1шт.

11

A60343

BUSHING

- Seat shock mounting

2шт.

12

A60344

PIN - seat adjusting shock pivot

1шт.

13

138-64

LOCK PIN,1/8" x 1 3/8", Slotted

Pin, 1/8" x 1 3/8", Slotted

1шт.

14

A60345

PLATE ASSY. - seat shock mounting

1шт.

15

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

21

A61846

ARM

ASSY. - seat support, upper, Includes: Ref. 22

1шт.

22

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

4шт.

23

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

24

25-1010

NUT,5/8"-11, G5

6шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

26

A60325

ARM ASSY. - seat support, lower, Includes: Ref. 27

2шт.

27

A60330

BUSHING,15.95mm ID x 35.56mm OD x 30.48mm L

- Arm

4шт.

28

A60678

SPACER - seat support, R.H.

1шт.

29

A60679

SPACER

- seat support, L.H.

1шт.

30

A60684

SPRING

- torsion, R.H.

1шт.

31

A60685

SPRING

- torsion, L.H.

1шт.

32

A60335

BUSHING

- seat spring bolt

4шт.

35

13-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- 3/8 x 4-1/2" N.C. hex.

1шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bracket adjusting (21/32 x 1 x 1/8")

1шт.

37

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

40

A60680

BRACKET ASSY. - seat spring adjustment

1шт.

41

A60683

SPACER - seat bracket adjustment

1шт.

42

195-26

WASHER

WASHER - 7/16 x 7/8 x 3/32"

1шт.

43

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-3/4" N.C. hex.

2шт.

44

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64

2шт.

45

92-6

LOCK WASHER,3/8"

2шт.

46

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.
