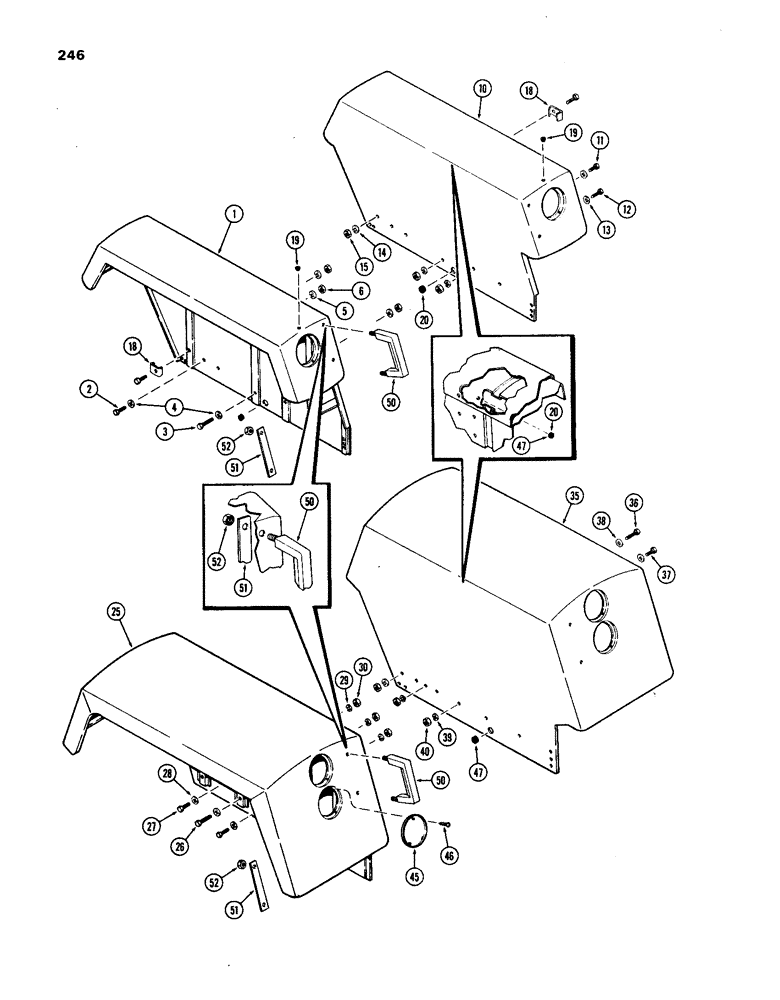

Запчасти Case IH 1270 (246) - FENDERS (09) - CHASSIS/ATTACHMENTS

1

A63774

FENDER

- 12", R.H. (w/handle holes) (Order A64890)

1шт.

1

A64890

FENDER

- 12", R.H. (less handle holes)

1шт.

2

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

12" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

3

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

12" fender Hex, 3/8"-16 x 1 3/4", G5

6шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", 12" fender

7шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 12" fender 3/8"

7шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 12" fender 3/8"-16, G5

7шт.

10

A63775

FENDER

- 12", L.H. (w/handle hole) (Order A64891)

1шт.

10

A64891

FENDER

- 12", L.H. (less handle holes)

1шт.

11

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

12" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

12

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

12" fender Hex, 3/8"-16 x 1 3/4", G5

4шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", 12" fender

5шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 12" fender 3/8"

5шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 12" fender 3/8"-16, G5

5шт.

18

A59318

BRACKET

- fender side sheet mounting, 12"

8шт.

19

353-405

PLUG,Dome, .562" hole, Nylon

- 9/16" button, 12" fender

2шт.

19

A63779

HOLE PLUG BUTTON,17/32"

PLUG - button (R.H. fender), 12" 17/32"

1шт.

20

A59722

GROMMET

- wire harness, 12" fender

2шт.

25

A63780

FENDER

- 24" R.H. (w/handle holes) (Order A64892)

1шт.

25

A64892

FENDER

- 24", R.H. (less handle holes)

1шт.

26

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

24" fender Hex, 3/8"-16 x 2 1/2", G5

6шт.

27

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

24" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

28

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", 24" fender

7шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 24" fender 3/8"

7шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 24" fender 3/8"-16, G5

7шт.

35

A63781

FENDER

- 24", L.H. (w/handle holes) (Order A64893)

1шт.

35

A64893

FENDER

- 24", L.H. (less handle holes)

1шт.

36

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

24" fender Hex, 3/8"-16 x 2", G5

2шт.

37

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/4" N.C. hex., 24" fender

4шт.

37

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

24" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

38

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", 24" fender

5шт.

39

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 24" fender 3/8"

5шт.

40

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , 24" fender 3/8"-16, G5

5шт.

45

A59330

COVER

- cultivator light opening, 24" fender

2шт.

46

187-1050

SCREW

- #10 x 1/2" N.C. type "T" tap, 24" fender

6шт.

47

A59722

GROMMET

- wire harness, 24" fender

2шт.

A63779

HOLE PLUG BUTTON,17/32"

PLUG - button (R.H. fender), 24" 17/32"

1шт.

A65434

KIT

ATTACHMENT - mounting handle, used prior to Trac. SN 8693037

1шт.

50

A60530

HANDLE

- L.H. fender, used prior to Trac. SN 8693037

1шт.

51

A59338

PLATE

- handle mounting, used prior to Trac. SN 8693037

1шт.

52

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., lock, handles, used prior to Trac. S/N 8693037

4шт.

175-467

BOLT,Sl Truss Hd, 3/8" - 16 x 5/8"

SCREW - 3/8 x 5/8" N.C. sltd. truss hd., handles, used prior to Trac. SN 8693037

2шт.

Used on 12" R.H. fender & 2 used on 24" R.H. fender

1шт.

92-6

LOCK WASHER,3/8"

handles, used prior to Trac. SN 8693037 3/8"

2шт.

Used on 12" R.H. fender & 2 used on 24" R.H. fender

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., handles, used prior to Trac. SN 8693037

2шт.

Used on 12" R.H. fender & 2 used on 24" R.H. fender

1шт.

353-403

PLUG,Dome, .437" hole, Nylon

Lower hole (RH 12" fender) (Used w/o handle), Used prior to Trac. S/N 8693037 Dome, .437" hole, Nylon

1шт.
