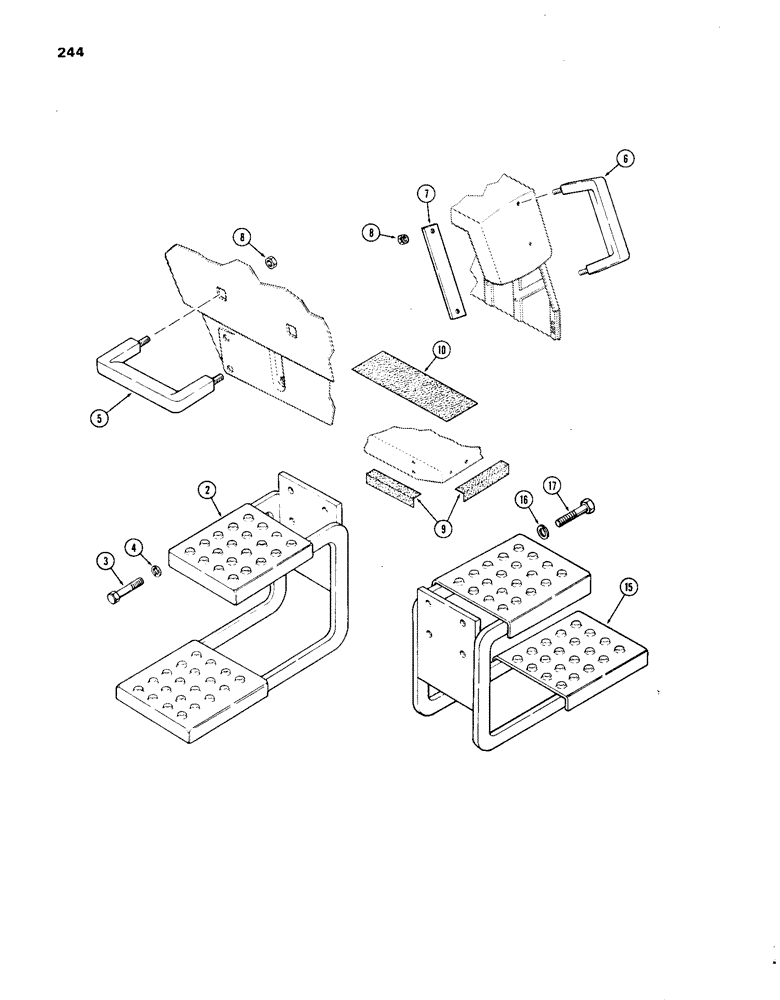

Запчасти Case IH 1270 (244) - STEPS (09) - CHASSIS/ATTACHMENTS

A63824

ATTACHMENT - step & handles, R.H. (Mach. Item)

1шт.

2

A63825

STEP

ASSY. - R.H.

1шт.

3

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

A63828

HANDLE

- hood, R.H.

1шт.

6

A60530

HANDLE

- fender, R.H.

1шт.

7

A59338

PLATE

- fender handle

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. whiz lock

4шт.

9

A62468

TREAD

- non-slip, 2 x 6"

2шт.

10

A62469

COVER

TREAD - non-slip, 4 x 12"

1шт.

15

A63825

STEP

ASSY. - L.H.

1шт.

16

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.
