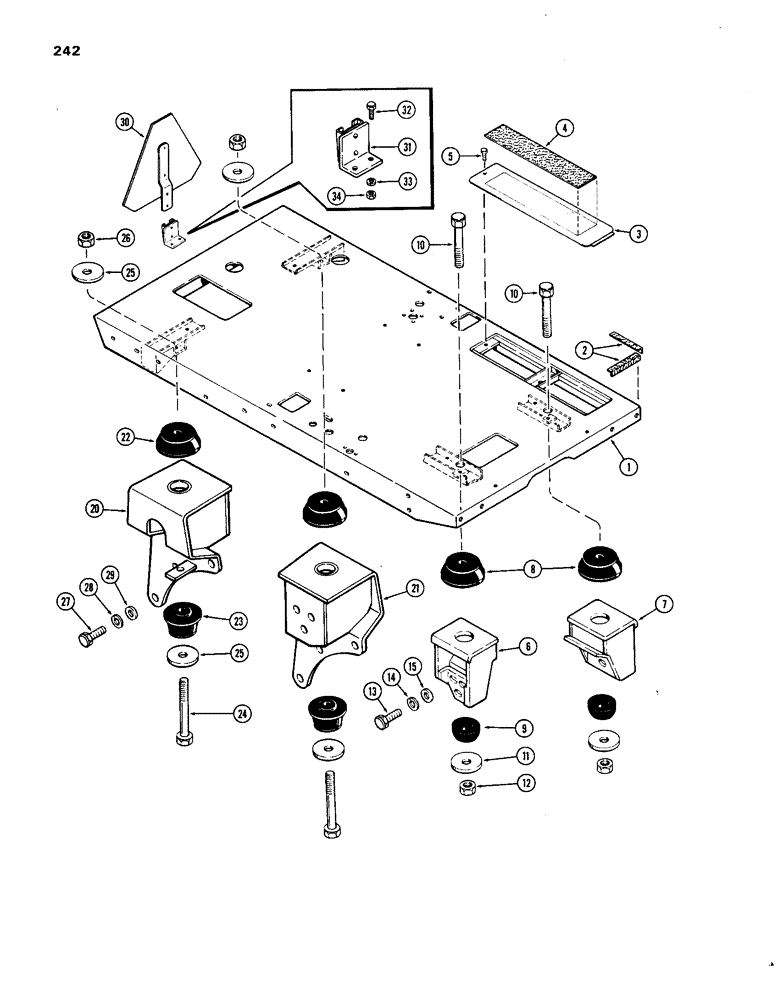

Запчасти Case IH 1270 (242) - PLATFORM (09) - CHASSIS/ATTACHMENTS

1

A63601

DECK ASSY. - platform (used prior to trans. ser. no. 2411358)

1шт.

1

A65839

PLATFORM

DECK ASSY. - platform (1st used trans. ser. no. 2411358)

1шт.

2

A62468

TREAD

- platform (non-slip)

2шт.

3

A59507

GUARD

COVER ASSY. - battery access

1шт.

4

A62469

COVER

TREAD - battery cover (non-slip)

1шт.

5

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. hex. lock

1шт.

6

A63628

MOUNTING PARTS

MOUNT ASSY. - platform, R.H. front

1шт.

7

A63629

MOUNTING PARTS

MOUNT ASSY. - platform, L.H. front

1шт.

8

A64854

RUBBER MOUNTING

MOUNT - platform upper, front

2шт.

9

A63638

PAD, RUBBER

MOUNT - platform lower, front

2шт.

10

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8 x 3-3/4" N.C. hex.

2шт.

11

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4"

2шт.

12

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

13

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

6шт.

14

92-8

LOCK WASHER,1/2"

6шт.

15

195-33

WASHER,1/2"

- plain, 1/2 x 1-1/16 x 5/64"

6шт.

20

A65608

BRACKET

MOUNT ASSY. - platform, R.H. rear (Replaces A64742)

1шт.

21

A65609

BRACKET

MOUNT ASSY. - platform, L.H. rear (Replaces A64743)

1шт.

22

A64854

RUBBER MOUNTING

MOUNT - platform upper, rear

2шт.

23

A64855

WASHER

MOUNT - platform lower, rear

2шт.

24

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8 x 4-3/4" N.C. hex.

2шт.

25

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4"

4шт.

26

131-1105

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

27

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

6шт.

28

92-8

LOCK WASHER,1/2"

6шт.

29

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 5/64") 1/2"

6шт.

30

A59450

WARNING SIGN

EMBLEM ASSY. - slow moving vehicle

1шт.

31

A63898

BRACKET

ASSY. - emblem, S.M.V.

1шт.

32

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

S.M.V. emblem Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

33

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , SMV emblem 3/8"

2шт.

34

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , S.M.V. emblem 3/8"-16, G5

2шт.
