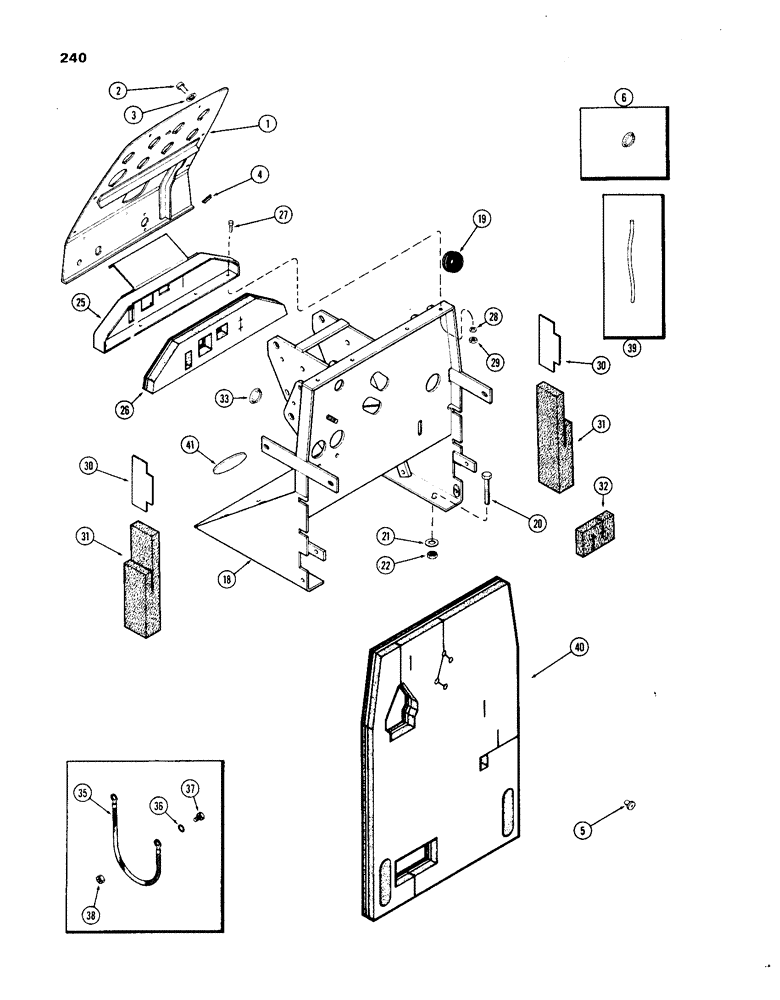

Запчасти Case IH 1270 (240) - INSTRUMENT PANEL, FIRST USED TRACTOR SERIAL NUMBER 8727601 (09) - CHASSIS/ATTACHMENTS

1

A65994

PANEL

ASSY. - instrument (Replaces A64901)

1шт.

2

A63896

SCREW,Hex, #10 - 32 x 7/8"

- #10 x 7/8" N.F. hex. hd., mach. (brass)

6шт.

3

193-93

LOCK WASHER,#10

WASHER - Shakeproof, int. #10

6шт.

4

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

6шт.

5

A63897

NUT

- #10 N.F. well (neoprene)

6шт.

6

353-411

PLUG,Dome, 1.000" hole, Nylon

(Ether start opening) Dome, 1.000" hole, Nylon

1шт.

18

A65531

FRAME

FIREWAL ASSY.

1шт.

19

A59719

GROMMET

- firewall (1-1/8 x 2-1/2 x 1/2")

1шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

4шт.

21

92-8

LOCK WASHER,1/2"

firewall 1/2"

4шт.

22

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., firewall

4шт.

25

A66374

BAFFLE

- firewall top

1шт.

26

A66545

PAD

- firewall top baffle

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Firewall Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A66378

SUPPORT

- sealing foam, firewall sides

2шт.

31

A66379

BAFFLE

- foam, lower sides (See Note), firewall

2шт.

To be attached with adhesive 345-22

1шт.

32

A64965

SEAL

- sealing, firewall

2шт.

To be attached with adhesive 345-22

1шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2", firewall

4шт.

35

A64704

STRAP

- ground (inst. panel), firewall

1шт.

36

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Firewall Ext-Int Tooth, 1/2"

2шт.

37

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Firewall Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

38

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Firewall

1шт.

39

345-27

BEAD - filler (use 345-17 sealant), firewall

1шт.

40

A66552

PAD

- acoustical, firewall

1шт.

41

A63059

COVER

- diff. lock hole (w/o diff. lock), firewall

1шт.
