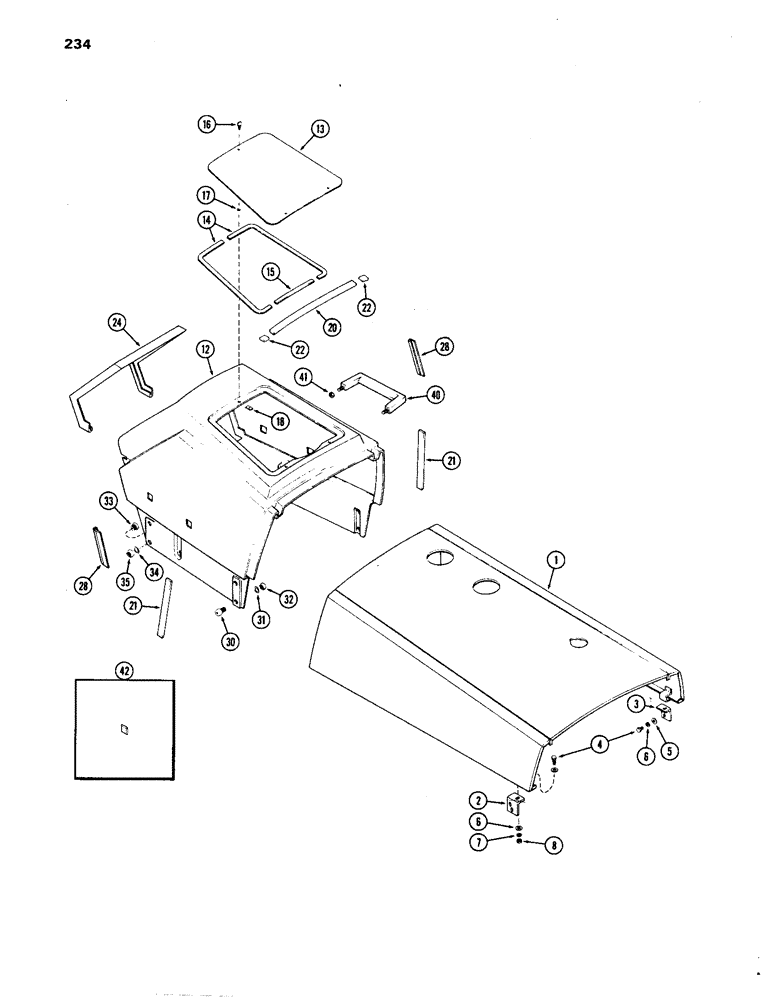

Запчасти Case IH 1270 (234) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A63971

HOOD

ASSY. - front

1шт.

2

A63972

BRACKET

- hood to grille, R.H.

1шт.

3

A63973

BRACKET

- hood to grille, L.H.

1шт.

4

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex.

6шт.

5

195-30

WASHER

- 1/2 x 1-1/8 x 1/16"

8шт.

6

195-128

WASHER,5/16"

- 3/8 x 1-1/8 x 5/64"

4шт.

7

192-45

LOCK WASHER

- lock, 5/16"

6шт.

8

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex.

6шт.

12

A66383

COVER

HOOD ASSY. - rear (Replaces A64316 or A65346)

1шт.

13

A59391

COVER

- hood access

1шт.

14

A59400

SEAL

- hood access cover

2шт.

To be attached with adhesive 345-22

1шт.

15

A59401

SEAL

- hood access cover

1шт.

To be attached with adhesive 345-22

1шт.

16

A61044

STUD

- wing head, rear hood cover

3шт.

17

A61045

RETAINER

- stud, rear hood cover

3шт.

18

A63849

CLIP

RECEPTACLE CLIP - rear hood cover

3шт.

20

A63857

SEAL

- rear hood, center

1шт.

To be attached with adhesive 345-22

1шт.

21

A59408

SEAL

- rear hood, outer

2шт.

To be attached with adhesive 345-22

1шт.

22

A62122

SEAL

- rear hood, upper corners

2шт.

To be attached with adhesive 345-22

1шт.

24

A64867

MOLDING - rear hood & inst. panel (Replaces A63862)

1шт.

28

A64868

MOLDING - rear hood & side panel, R.H. & L.H. (Replaces A64924 & A64925)

2шт.

30

A63855

SPACER

- rear hood

4шт.

31

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

32

129-107

NUT,5/8"-11, G5

4шт.

33

A63856

SPACER

- rear hood

4шт.

34

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

35

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex., jam

4шт.

40

A63828

HANDLE

- hood

1шт.

41

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex. lock, Handles

2шт.

42

A64359

PLUG

- handle hole

1шт.
