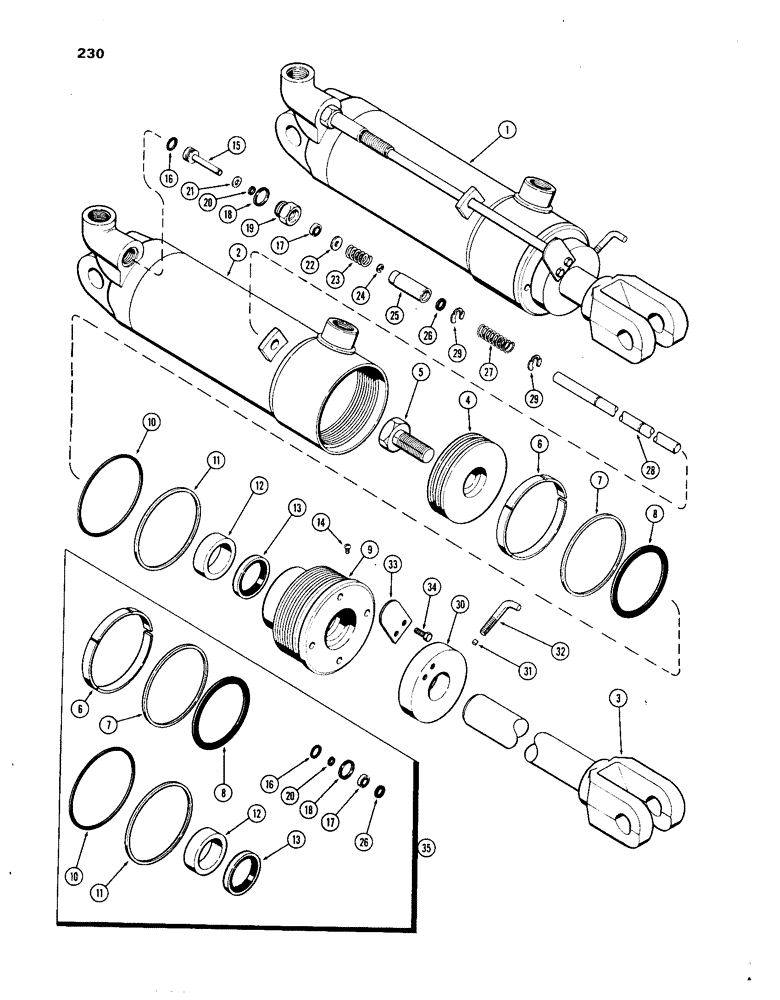

Запчасти Case IH 1270 (230) - G31945 REMOTE HYDRAULIC CYLINDER, 4 X 8 CYLINDER, WITHOUT GLAND IDENTIFICATION GROOVE (08) - HYDRAULICS

1

G31945

HYDRAULIC CYLINDER

CYLINDER ASSY. - hydraulic (Order G33769 Figure 231A), Includes: Ref. 2 - 35

1шт.

2

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

3

G32072

ROD

- piston (Order G33772 and G33774 piston and G33773 gland assy. from Figure 231A)

1шт.

4

G31923

PISTON - cylinder

1шт.

5

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

G31927

RING

- wear, piston (nylon)

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

7

G31928

RING

- seal, piston (teflon)

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - 3-1/2 x 3-3/4 x 1/8"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

9

G32796

GLAND

ASSY. - packing, piston rod, Includes: Ref. 10 - 13

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

12

D36969

CUP

SEAL - piston rod, 1-1/2 x 2 x 7/16"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

13

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

SCRAPPER - piston rod, 1-1/2 x 2 x 5/16"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" rd. hd. sltd., self tapping

1шт.

15

G31943

PLUNGER

- valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING - 27/64 x 5/8 x 3/32"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

17

G31932

WIPER SEAL

SEAL - wiper, 3/16 x 1/2 x 1/8"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

19

G31933

GLAND

ASSY. - valve, Includes: Ref. 20

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - 11/64 x 3/8 x 7/64"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

21

G31948

WASHER

- 13/64 x 13/32 x 1/16"

1шт.

22

G31929

WASHER

- spring backing, 7/32 x 5/8 x 1/16"

1шт.

23

G31980

SPRING

- plunger return (1" long)

1шт.

24

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

25

G32427

SLEEVE

- protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

"O" RING - 7/16 x 9/16 x 1/16"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.

27

G31934

SPRING

- rod return (2-5/16" long)

1шт.

28

G32428

ROD

- push

1шт.

29

G32429

RING

- retaining, "Y" type

2шт.

30

G32074

COLLAR

- stop

1шт.

31

G32076

PLUG

- locking

1шт.

32

G32077

BOLT

- hook

1шт.

33

G32075

PLATE

- stop

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

35

G31946

KIT

- cylinder repair (Incl. ref. 6, 7, 8, 10, 11, 12, 13, 16, 17, 18, 20 & 26)

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32" x 3/32"

1шт.

Part of Cylinder Repair Kit, P/N G31946

1шт.
