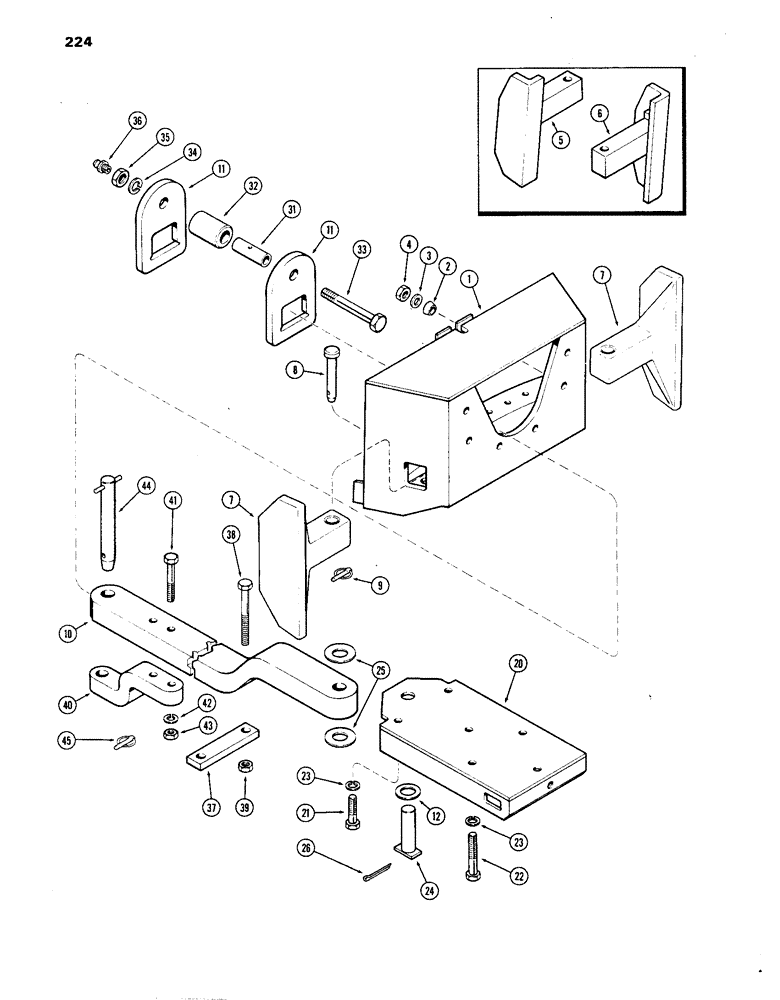

Запчасти Case IH 1270 (224) - DRAWBAR, WITH HITCH (08) - HYDRAULICS

1

A64162

SUPPORT

ASSY. - drawbar

1шт.

2

A64167

PIN

DOWEL - support mounting

6шт.

3

A64166

WASHER

- 5/8 x 1-1/8 x 1/4"

6шт.

4

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex.

6шт.

5

A63586

STOP

SWAY STOP - draft arm, R.H. (Order A65439)

1шт.

6

A63587

STOP

SWAY STOP - draft arm, L.H. (Order A65439)

1шт.

7

A65439

STOP

SWAY STOP - draft arm (Replaces A63586 & A63587)

2шт.

8

A63585

PIN

- sway stop retaining

2шт.

9

A30338

PIN

- klik

2шт.

10

A63591

BAR

DRAWBAR - (2" thick) (used prior to trac. ser. no. 8717277) (Order A65753, 192-2120 & 2-A65754)

1шт.

10

A65753

SWINGING DRAWBAR

DRAWBAR - (1-3/4" thick) (1st used trac. ser. no. 8717277)

1шт.

11

A63596

PLATE - hanger (used prior to trac. ser. no. 8717277)

2шт.

11

A65754

PLATE

- hanger (1st used trac. ser. no. 8717277)

2шт.

12

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

- 1-1/4 x 2 x 1/4" (use w/1-3/4" drawbar)

1шт.

20

A63595

WASHER

BRACKET - drawbar pivot (Replaces A64170)

1шт.

21

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" N.C. hex.

2шт.

22

26-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

- 3/4 x 4" N.C. hex.

2шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

24

A65748

PIN

- drawbar pivot (Replaces A63592)

1шт.

25

A63595

WASHER

- anti-rattle

2шт.

26

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

31

A63597

BUSHING

SLEEVE - roller

1шт.

32

A63598

ROLLER

- drawbar

1шт.

33

A63599

BOLT

- roller, drilled

1шт.

34

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

35

25-1016

NUT,1"-8, G5

1шт.

36

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., straight

1шт.

37

A63600

STRAP

- drawbar clamp

1шт.

38

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8 x 5-3/4" N.C. hex.

2шт.

39

25-1010

NUT,5/8"-11, G5

2шт.

A61836

KIT

- drawbar yoke (Machinery Attachment)

1шт.

40

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

41

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

42

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

43

25-1012

NUT,3/4"-10, G5

2шт.

44

A65760

PIN

ASSY. - drawbar (Replaces A61558)

1шт.

45

A61560

LOCK PIN

PIN - klik

1шт.
