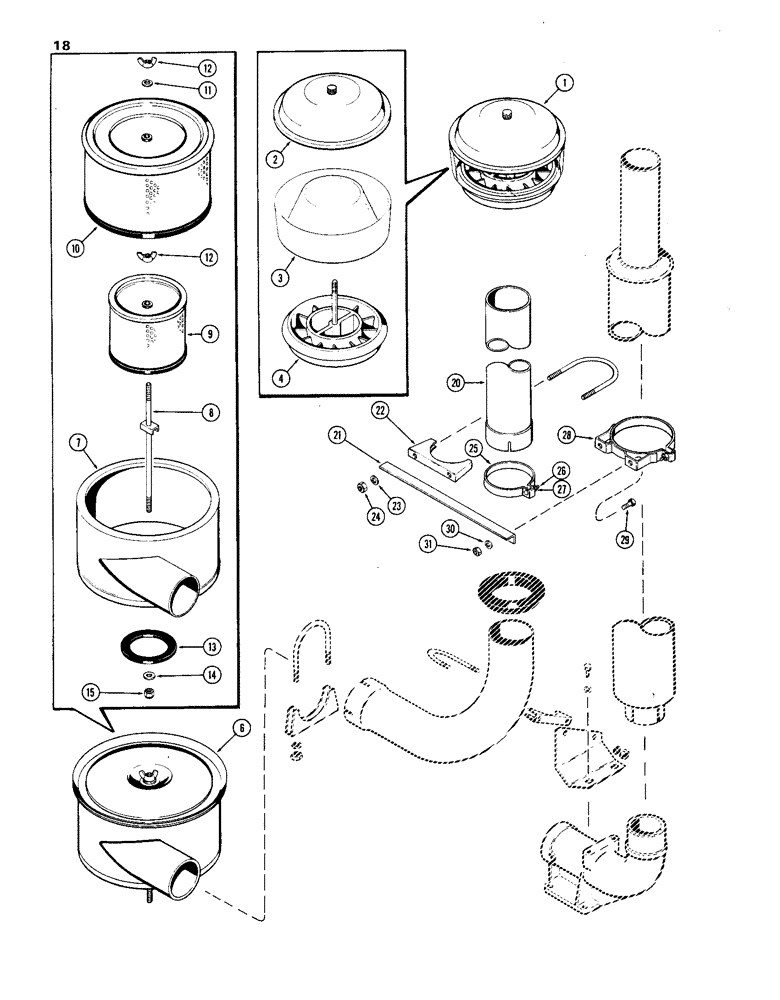

Запчасти Case IH 1270 (018) - PRE CLEANER, 451 BDT, DIESEL ENGINE (02) - ENGINE

1

A43616

FILTER

PRE-CLEANER ASSY., Includes: Ref. 2 - 4

1шт.

2

A42465

COVER

- pre-cleaner

1шт.

3

A42467

HOUSING

BOWL - pre-cleaner

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE - pre-cleaner

1шт.

6

A63745

X

AIR CLEANER ASSY., Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

8

A43737

STUD

- air cleaner mounting

1шт.

9

A43735

AIR CLEANER

ELEMENT - inner safety, air cleaner

1шт.

10

A43734

AIR CLEANER

ELEMENT - outer primary, air cleaner

1шт.

11

A42755

WASHER

- sealing, air cleaner

1шт.

12

129-549

WING NUT,Locking, 3/8"-16

NUT - 3/8" N.C. wing, air cleaner

2шт.

13

A43736

GASKET

- bottom mount sealing, air cleaner

1шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16", air cleaner

1шт.

15

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. essna lock, air cleaner

1шт.

20

A64804

TUBE

- pre-cleaner extension, air cleaner

1шт.

21

A64805

BRACKET

- extension clamp, air cleaner

1шт.

22

A64801

CLAMP

- extension to bracket, air cleaner, Includes: Ref. 23 and 24

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Air cleaner 3/8"

2шт.

24

129-123

NUT,3/8"-24, G5

Air cleaner 3/8"-24, G5

2шт.

25

A64802

CLAMP

- extension tube, air cleaner, Includes: Ref. 26 and 27

1шт.

26

11-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2"

BOLT, CARRIAGE, , Air cleaner Short NK, 5/16"-18 x 1 1/2"

1шт.

27

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., air cleaner

1шт.

28

A64803

CLAMP

- muffler to bracket, air cleaner

1шт.

29

113-168

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

- 5/16 x 5/8" N.C. hex., air cleaner

2шт.

30

192-45

LOCK WASHER

- lock, 5/16", air cleaner

2шт.

31

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex., air cleaner

2шт.
