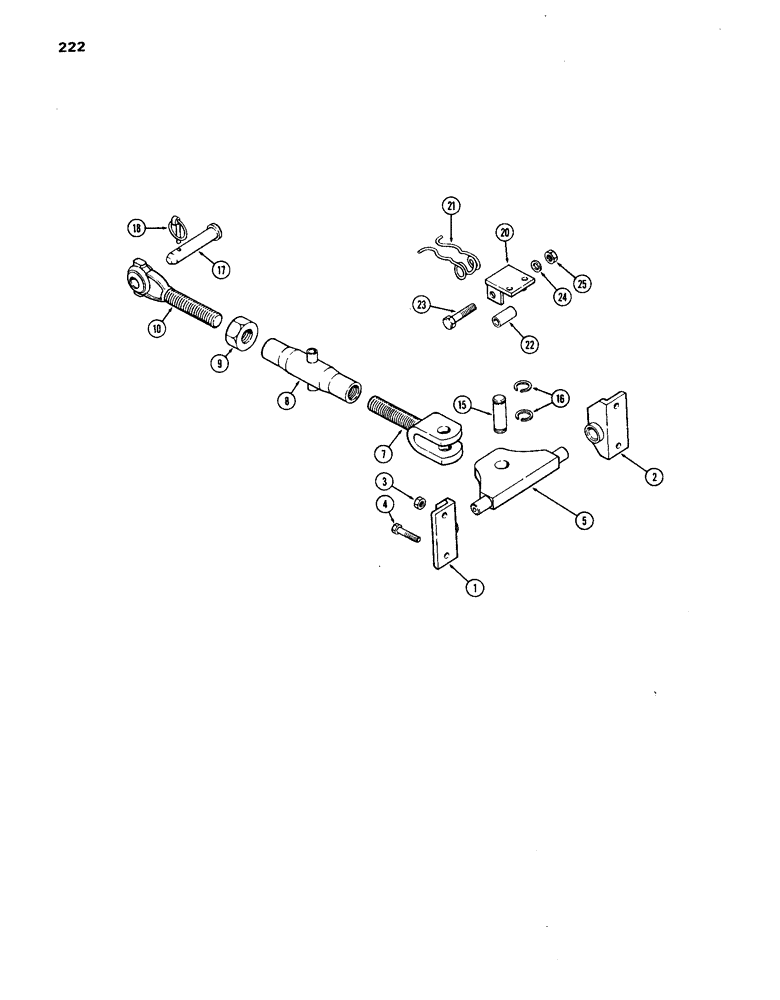

Запчасти Case IH 1270 (222) - THREE POINT HITCH, D.O.M. SYSTEM, UPPER LIFT LINK (08) - HYDRAULICS

1

A66218

BRACKET

ANGLE - upper link bracket, R.H. (Replaces A63516 or A65982)

1шт.

2

A66219

BRACKET

ANGLE - upper link bracket, L.H. (Replaces A63517 or A65983)

1шт.

3

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex., bracket to stud

2шт.

4

26-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- 5/8 x 2-1/2" N.C. hex.

2шт.

5

A66217

PLATE

- upper link bracket (Replaces A63521 or A65981)

1шт.

NSS

NOT SOLD SEPARAT

LINK ASSY. - upper lift, Includes: Ref. 7 - 10

1шт.

7

A63523

CLEVIS

- upper link

1шт.

8

A63527

TURNBUCKLE

- upper link

1шт.

9

25-1124

NUT,1 1/2"-12, G5

- 1-1/2" N.F. hex.

1шт.

10

A63526

ROD

BALL - upper link end

1шт.

15

A63529

PIN

-, Serial Range: link-plate

1шт.

16

A28253

RING

- snap, link to plate pin

2шт.

17

A63514

PIN

- upper link to implement (in tool box)

1шт.

18

A64204

PIN

- klik, upper link pin (in tool box)

1шт.

20

A64393

BRACKET

- upper link storage

1шт.

21

A61684

CLIP

- turnbuckle transport

1шт.

22

A64392

SPACER

- upper link clip

1шт.

23

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

24

195-105

WASHER,7/16"

- lock, 1/2"

1шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.
