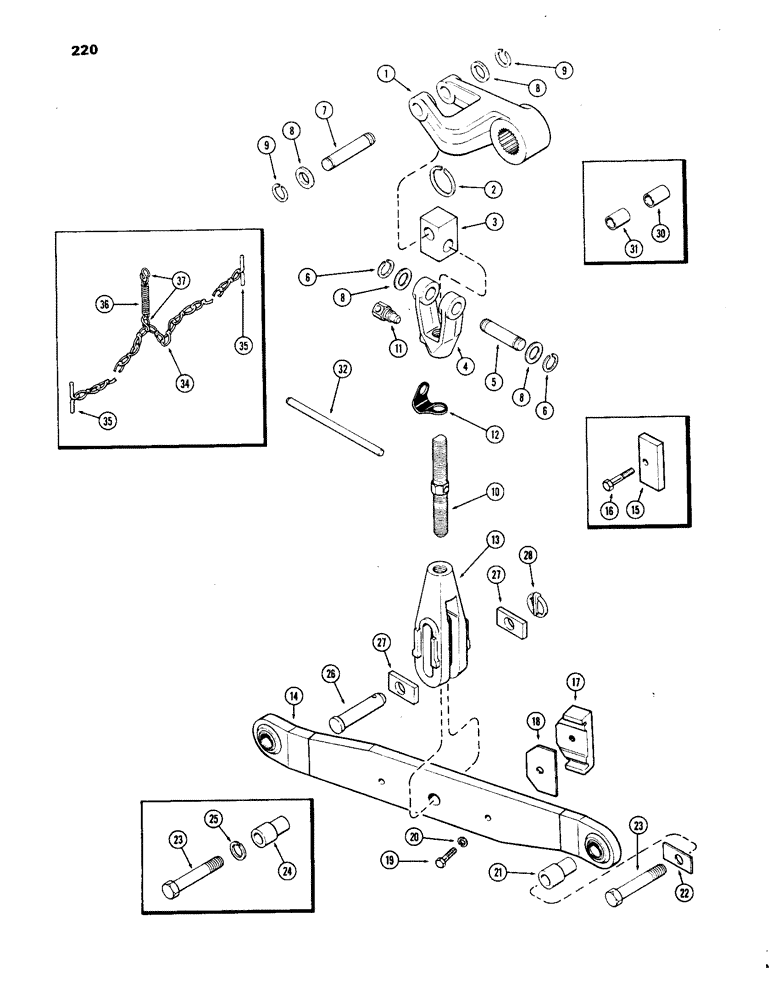

Запчасти Case IH 1270 (220) - THREE POINT HITCH, D.O.M. SYSTEM, LOWER LIFT LINKS AND DRAFT ARMS (08) - HYDRAULICS

1

A63959

ARM

- rockshaft lift

2шт.

2

A63499

SNAP RING,#268, 2.535, Ext

RING - snap, arm to rockshaft

2шт.

3

A63501

BLOCK

- swivel, lift link

2шт.

4

A63502

YOKE

- lift link upper

2шт.

5

A63503

PIN

- yoke (4-3/4" long) (Order A66100 & 2-A63507 washer)

2шт.

5

A66100

PIN

- yoke (5" long) (Replaces A63503)

2шт.

6

A28253

RING

- snap, yoke pin

4шт.

7

A63506

PIN

- block to lift arm

2шт.

8

A63507

WASHER

- lift arm pin (1-9/32 x 2 x 1/8")

4шт.

9

A28253

RING

- snap, arm pin

4шт.

10

A63504

ADJUSTMENT SCREW,1 1/4" - 12 x 10.50mm

- lift link adjusting

2шт.

11

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

- yoke locking

2шт.

12

A62986

HOLDER

KEEPER - yoke locking screw

2шт.

13

A63505

YOKE

- lift link lower

2шт.

14

A63508

ARM

- draft

2шт.

15

A65438

BUSHING

SPACER - sway block (Cat. II)

2шт.

16

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- (1/2 x 3" N.C. hex.)

2шт.

17

A65436

BLOCK

- sway (Replaces A63512)

2шт.

18

A64331

BUSHING

SPACER - sway block

4шт.

19

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- (1/2 x 2-1/4" N.C. hex.)

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

A65552

INSERT

- draft arm (3-3/8" long) (Replaces A63513)

2шт.

22

A65551

PLATE

LOCK - insert bolt (Replaces 192-171)

2шт.

23

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

2шт.

24

A63513

INSERT

- draft arm (3-1/4" long) (Order A65552 & A65551)

2шт.

25

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

26

A63514

PIN

- lower lift link to draft arm

2шт.

27

A63515

PLATE

- pin stop

4шт.

28

A64204

PIN

- klik

2шт.

30

L10462

BUSHING

ADAPTER - upper hitch pin (Cat. III to Cat. II)

1шт.

31

L10463

BUSHING

ADAPTER - lower hitch pin (Cat. III to Cat. II)

2шт.

32

A63520

HANDLE

- link adjusting (in tool box)

1шт.

A65684

CHAIN (AG)

CHAIN ASSY. - anti-sway, Includes: Ref. 34 - 37

1шт.

34

NSS

NOT SOLD SEPARAT

CHAIN - (30 links) (Order A65684)

1шт.

35

A65686

CHAIN

KEEPER - chain

2шт.

36

A65688

SPRING

- chain

1шт.

37

A65687

HOOK

- spring

2шт.
