(216) - D.O.M. SYSTEM, DEPTH AND POSITION VALVE, MANIFOLD AND TUBES

Запчасти Case IH 1270 (216) - D.O.M. SYSTEM, DEPTH AND POSITION VALVE, MANIFOLD AND TUBES (08) - HYDRAULICS

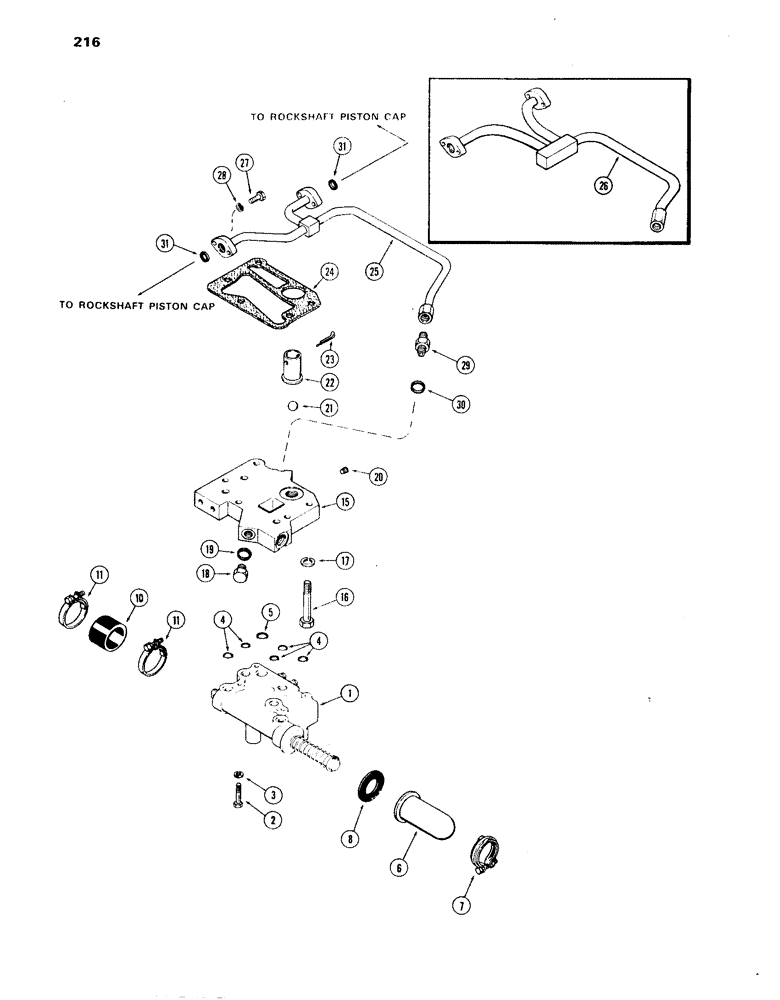

Схема запчастей Case IH 1270 - (216) - D.O.M. SYSTEM, DEPTH AND POSITION VALVE, MANIFOLD AND TUBES (08) - HYDRAULICS
28
20
10
11
18
27
19
4
30
21
26
2
16
8
23
11
15
1
25
31
5
3
7
31
22
29
24
6
4
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A63470

VALVE

ASSY. - depth & position (For Repairs See Figure 218)

1шт.

2

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2", Valve to manifold

1шт.

2

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Valve to manifold Hex, 5/16"-18 x 2 3/4", G5

3шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - valve to manifold (1/2 x 11/16 x 3/32")

5шт.

5

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - valve to manifold (5/8 x 13/16 x 3/32")

1шт.

6

A63473

COVER

- control valve spool

1шт.

7

A63475

CLAMP,50.29mm ID

- control valve spool cover

1шт.

8

A63474

GASKET

- control valve spool cover

1шт.

10

A63472

HOSE

- control valve to linkage hsg.

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

15

A64013

MANIFOLD

- depth control valve

1шт.

16

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex), manifold to trans. case

5шт.

17

92-6

LOCK WASHER,3/8"

5шт.

18

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy (Manifold), Incl Ref 19 Hex Soc, 3/4"-16 ORB

1шт.

20

221-844

PLUG,Hex Soc, 1/2"-14

- pipe (1/2" hex. socket hd.) (manifold)

1шт.

21

211-19

BALL,7/8" Dia

- (.) 7/8" Dia

1шт.

22

A63458

TUBE

- manifold oil return valve

1шт.

24

A64014

GASKET

- draft control valve manifold

1шт.

25

A65166

TUBE

- lift cylinder (Replaces A63463)

1шт.

26

A63463

TUBE

- lift cylinder (Order A65166)

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Swivel flange Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

28

92-5

LOCK WASHER,5/16"

4шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSY. - straight (tube to manifold), Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

31

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - flange to cap (3/4 x 15/16 x 3/32")

2шт.

23

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
