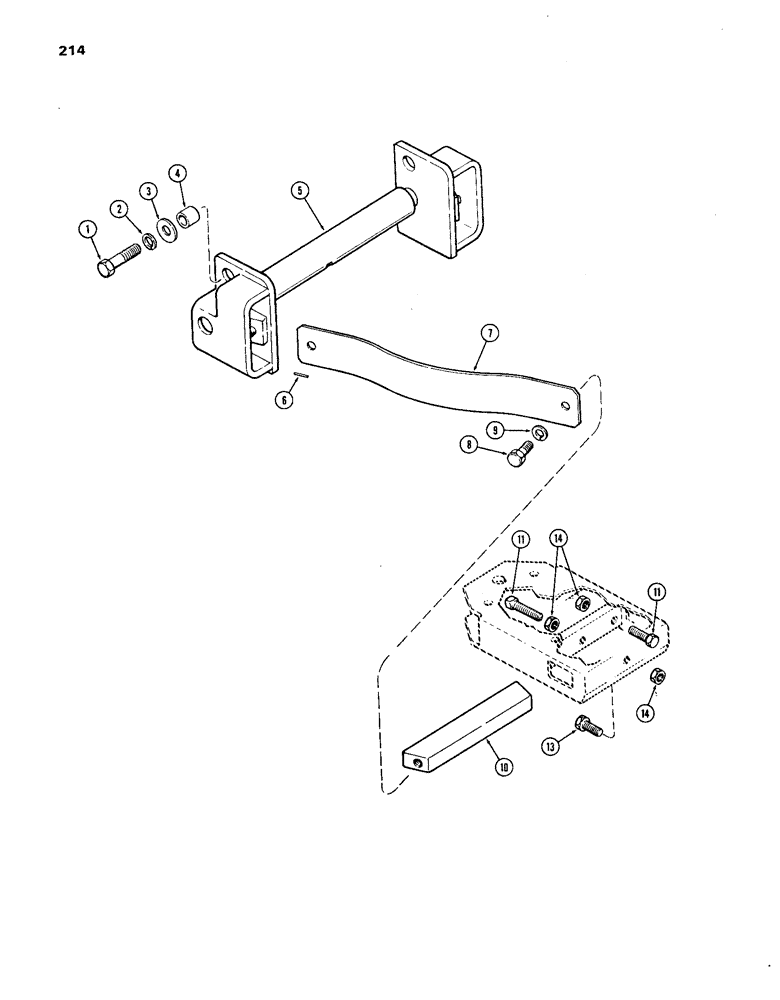

Запчасти Case IH 1270 (214) - D.O.M. SYSTEM, CROSSBAR AND WISHBONE SPRINGS (08) - HYDRAULICS

1

13-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

2шт.

2

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

3

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain (1")

2шт.

4

A66411

SLEEVE

- bolt (Replaces A63485)

2шт.

5

A65254

CROSSBAR

- draft-o-matic (Replaces A63476)

1шт.

6

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, , Wishbone spring to cross shaft 1/4" x 1 1/4", Slotted

2шт.

7

A63488

SPRING

- wishbone

2шт.

8

A63490

BOLT

- mounting, wishbone spring

2шт.

9

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

10

A63489

BAR

- wishbone spring equalizer

1шт.

11

181-529

SET SCREW,Sq Hd, 3/4"-10 x 3"

SCREW - set (3/4 x 3" N.C., sq. hd. oval point) (equalizer bar adjusting)

3шт.

13

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- (3/4 x 1-3/4" N.C. hex.) (locks equalizer bar-center)

1шт.

14

25-1412

JAM NUT,Jam, 3/4"-10, G5

- hex. (3/4" N.C. jam) (setscrew & locking bolts)

4шт.
