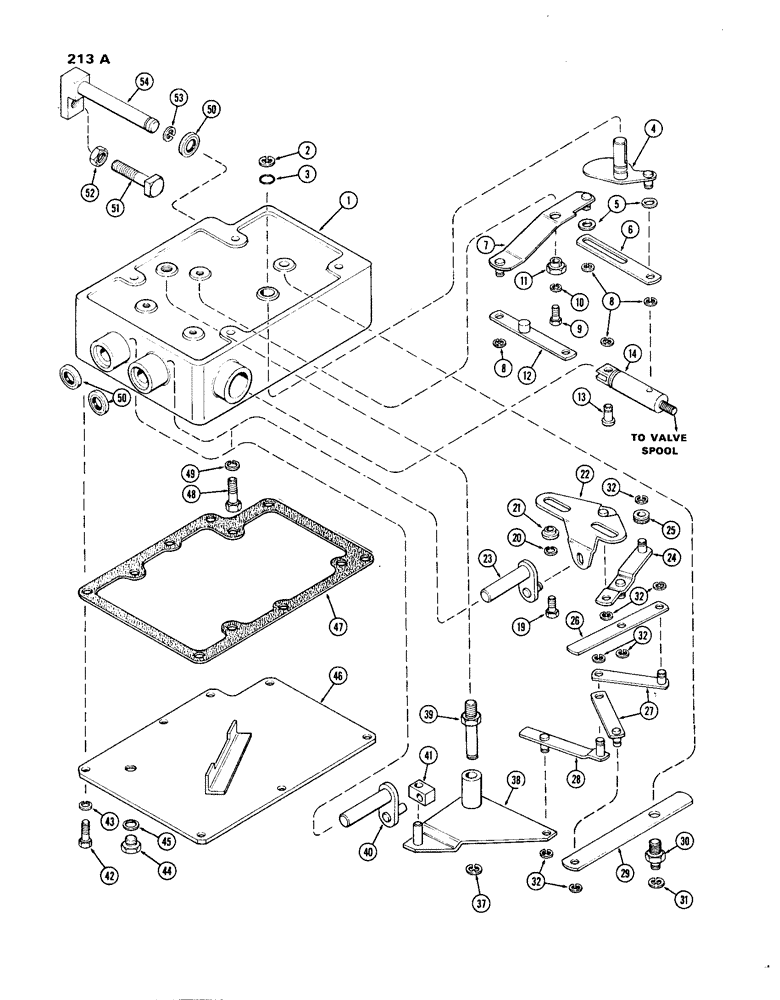

Запчасти Case IH 1270 (213A) - DRAFT CONTROL SENSING LINKAGE (08) - HYDRAULICS

1

A63398

HOUSING

- draft control linkage

1шт.

2

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , follow-up cam shaft #62, .480" Dia, E-Type

1шт.

3

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O" RING - follow-up camshaft (1/2 x 5/8 x 1/16")

1шт.

4

A63403

CAM

- follow-up

1шт.

5

122-19

GROMMET

BURR - steel (3/8")

2шт.

6

A63424

LINK

- ("J"), valve lockout

1шт.

7

A65087

ARM

- ("H"), valve lockout (Replaces A63420)

1шт.

8

A27795

RING

- retaining

4шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Arm to hsg. Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

10

92-5

LOCK WASHER,5/16"

1шт.

11

A63423

TRUNNION

- eccentric

1шт.

12

A63425

PLATE

LINK - ("G"), valve spool

1шт.

13

A63428

PIN

- valve spool

1шт.

14

A63471

END

- valve spool (See Figure 218)

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Slide to hsg. Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

A63415

SLIDE

- trunnion

2шт.

22

A63413

SLIDE

- manual signal

1шт.

23

A63407

SHAFT

- manual signal

1шт.

24

A63416

LINK

- ("F"), draft control

1шт.

25

A63418

ROLLER

- cam follower

1шт.

26

A63419

LINK

- ("E"), draft control

1шт.

27

A63429

LINK

- ("D"), draft control

2шт.

28

A63433

LINK

- ("B"), draft control

1шт.

29

A63431

LINK

- ("C"), draft control

1шт.

30

A63432

STUD

- link pivot "C" (in housing)

1шт.

31

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , C link to stud #50, .392" Dia, E-Type

1шт.

32

A27795

RING

- retaining

7шт.

37

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, , pivot stud #50, .392" Dia, E-Type

1шт.

38

A63436

LINK

- ("A"), draft control

1шт.

39

A63439

STUD

- link pivot "A"

1шт.

40

A63411

SHAFT

- sensitivity adjustment

1шт.

41

A63440

BLOCK

- sliding pivot

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Cover to hsg. Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

43

92-5

LOCK WASHER,5/16"

7шт.

44

A20826

PLUG

- draft control housing cover

1шт.

45

A11530

GASKET

- draft control housing cover plug

1шт.

46

A63441

PLATE

COVER - draft control linkage

1шт.

47

A65553

GASKET

- draft control linkage cover (Replaces A64463)

1шт.

48

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing to trans. case Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

49

92-6

LOCK WASHER,3/8"

4шт.

50

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

- draft control linkage housing

3шт.

51

181-480

SET SCREW,Sq Hd, 1/2"-13 x 2 1/4"

SCREW - set (1/2 x 2-1/4" oval point), arm

1шт.

52

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex (1/2" NC jam)

1шт.

53

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , draft control signal shaft #62, .480" Dia, E-Type

1шт.

54

A63400

SHAFT

- signal, draft control

1шт.
