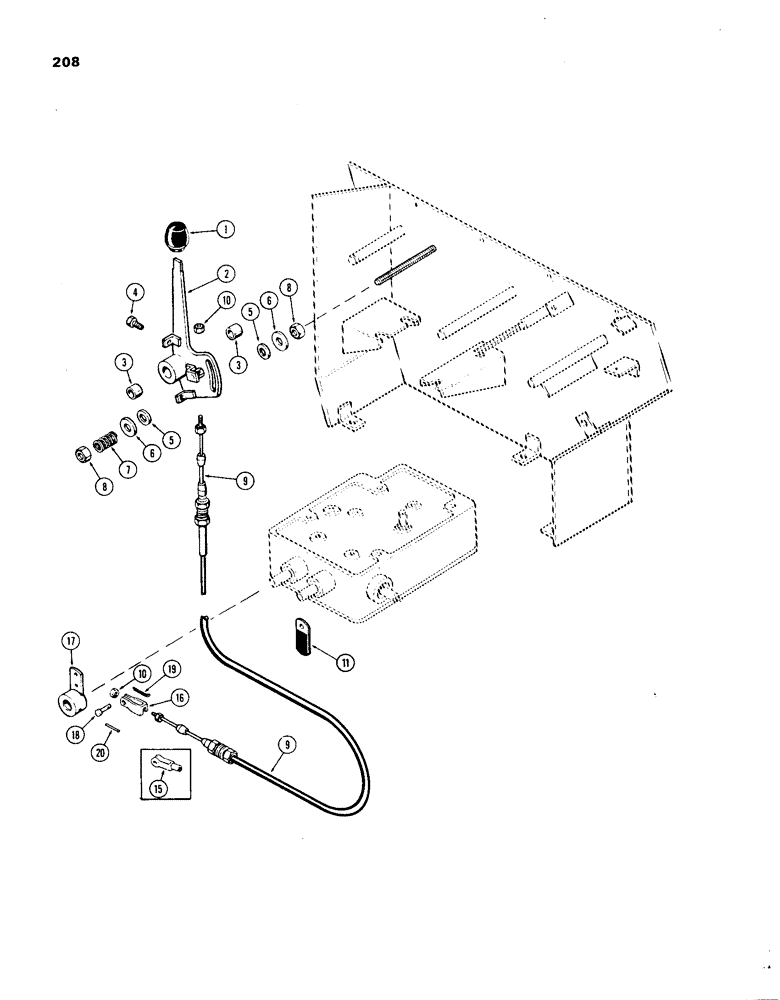

Запчасти Case IH 1270 (208) - D.O.M. SYSTEM, DRAFT SENSING CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

- sensing hand lever (Replaces A62078)

1шт.

2

A61076

LEVER

ASSY. - hand, sensing, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- sensing hand lever

2шт.

4

A59463

BOLT

- (1/4 x 5/8" w/nylon insert), lever stop

2шт.

5

A61069

DISC

- friction

2шт.

6

195-2172

WASHER,7/16" x 1 1/4" x .083"

- back-up, friction disc (7/16 x 1-1/4 x 5/32")

2шт.

7

A65583

SPRING

- friction disc (Replaces A26546)

1шт.

8

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex. (3/8" N.C. jam, plated), friction disc

2шт.

9

A63040

CABLE

- console control

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- hex. (#10 N.F. Keps)

2шт.

11

A37179

CLIP

- cable to lower rear shift cover bolt

1шт.

15

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable (Order A65265 & 193-1000)

1шт.

16

A65265

YOKE

- cable (Replaces 213-1)

1шт.

17

A63037

LEVER

- lower sensing

1шт.

18

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis (3/16")

1шт.

19

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Lever to signal shaft 3/16" x 1 3/8", Slotted

1шт.
