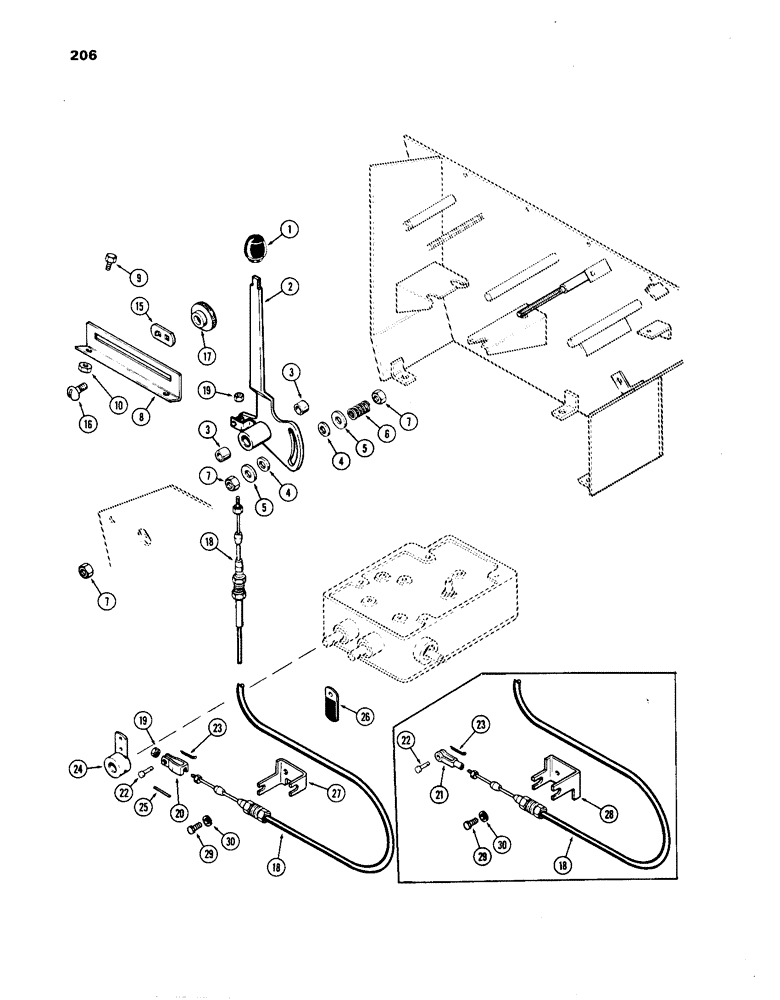

Запчасти Case IH 1270 (206) - D.O.M. SYSTEM, D.O.M. CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

- D.O.M. hand lever (Replaces A62078)

1шт.

2

A63033

LEVER

ASSY. - hand, D.O.M., Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- hand lever

2шт.

4

A61069

DISC

- friction

2шт.

5

195-2172

WASHER,7/16" x 1 1/4" x .083"

- back-up, friction disc (7/16 x 1-1/4 x 5/32")

2шт.

6

A65583

SPRING

- friction disc (Replaces A26546)

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex. (3/8" N.C. jam, plated), friction disc

2шт.

8

A59273

BRACKET

QUADRANT - D.O.M. hand lever

1шт.

9

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Quadrant to console

2шт.

10

131-113

SPRING NUT,J, Ret, 5/16"-18

Tinnerman J, Ret, 5/16"-18

2шт.

15

G15950

STOP

- quadrant hand lever

2шт.

16

113-317

SCREW,Locking, 7/16"-14 x 1 1/4", G8

BOLT - (3/8 x 1" N.C. rd. hd. square neck, plated)

2шт.

17

G15951

NUT

- hand lever

2шт.

18

A63040

CABLE

- D.O.M. control

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- hex. (#10 N.F. Keps, plated)

1шт.

20

A65265

YOKE

- cable to lower lever (Replaces 213-1)

1шт.

21

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to lower lever (Order A65265 & 193-1000)

1шт.

22

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis (yoke)

1шт.

23

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

24

A63037

LEVER

- D.O.M. control

1шт.

25

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, , Lever to D.O.M. shaft 3/16" x 1 3/8", Slotted

1шт.

26

A37179

CLIP

- cable to lower front shift cover bolt

1шт.

27

A65264

BRACKET

- control cables (Replaces A63036)

1шт.

28

A63036

BRACKET

- D.O.M. and sensing cables (Order A65264)

1шт.

29

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Bracket to D.O.M. manifold Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.
