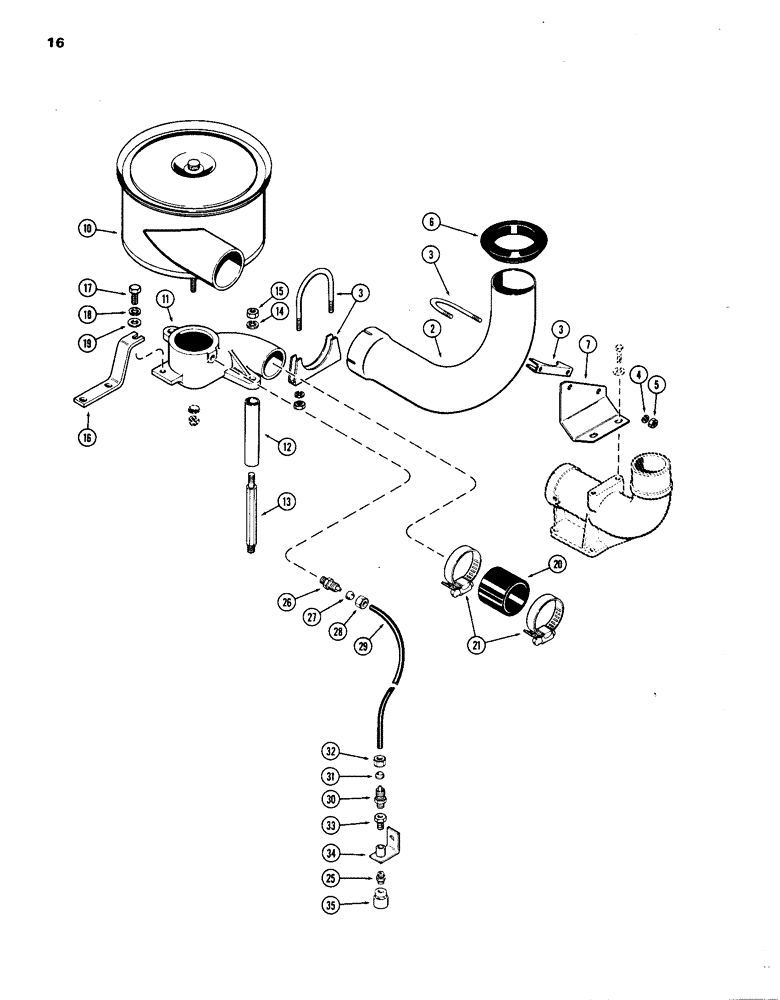

Запчасти Case IH 1270 (016) - AIR CLEANER SYSTEM, 451 BDT, DIESEL ENGINE (02) - ENGINE

1

A43616

FILTER

PRE-CLEANER ASSY. - (See Figure 018)

1шт.

2

A64433

TUBE

- air cleaner inlet

1шт.

3

A56092

CLAMP

- inlet tube

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-123

NUT,3/8"-24, G5

2шт.

6

A63753

GROMMET

- hood

1шт.

7

A63751

BRACKET

- inlet tube support

1шт.

10

A63745

X

AIR CLEANER ASSY. - (See Figure 018)

1шт.

11

A63746

JUNCTION

ELBOW - air cleaner support

1шт.

12

A63747

SPACER

- support elbow

2шт.

13

A63748

JACK SCREW,1/2" - 13 x 8.32"

JACK SCREW - support elbow

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

16

A63749

BRACKET

- support elbow

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

3шт.

20

A61631

HOSE

- turbo-charger intake

1шт.

21

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

2шт.

25

D36264

FITTING

FILTER - safety

1шт.

26

222-5130

FITTING,7/16"-24 x 1/8" NPT Fem

COUPLING - 1/4" tube, 1/8" P.T.

1шт.

27

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

28

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

29

A61938

TUBE - air restrictor indicator (nylon)

1шт.

30

222-5102

COUPLING, BREAK AWAY,7/16"-24 x 1/8" NPT

COUPLING - 1/4" tube, 1/8" P.T.

1шт.

31

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

32

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

33

217-194

FITTING,1/8" - 27 Male NPTF x 1/8" - 27 Male NPTF

NIPPLE - 1/8 x 1/8" brass hex.

1шт.

34

A61940

BRACKET

- air restrictor indicator

1шт.

35

A62574

INDICATOR

- air restriction

1шт.
