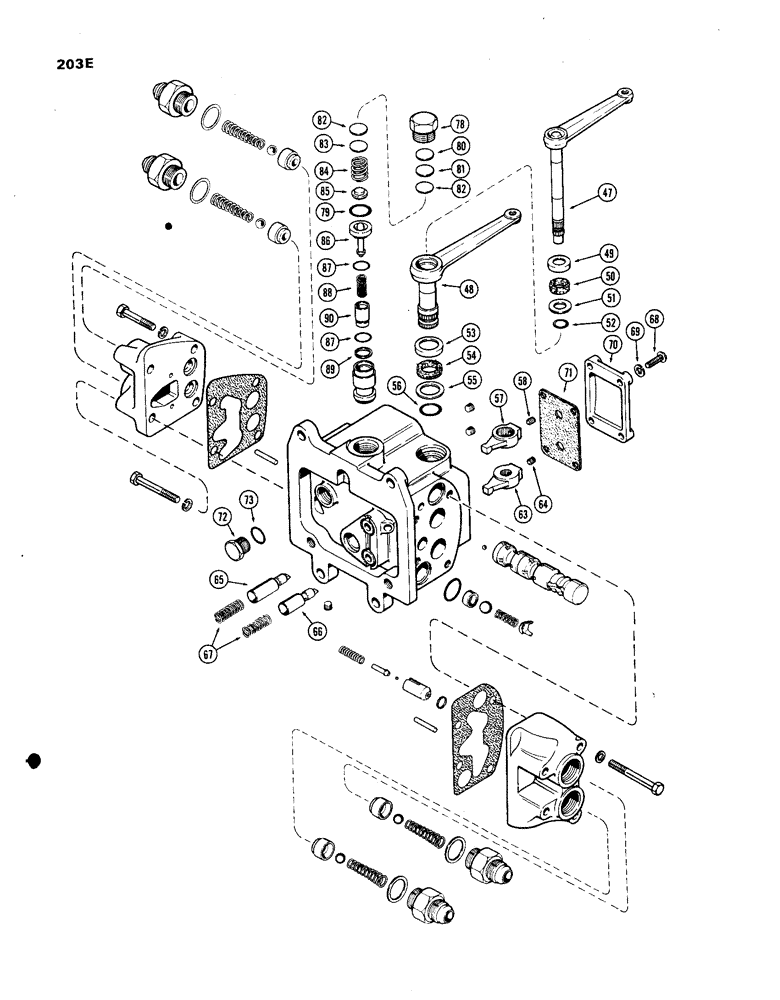

Запчасти Case IH 1270 (203E) - A63534 HYDRAULIC CONTROL VALVE, LEFT HAND OPTIONAL VARIABLE (08) - HYDRAULICS

A63534

VALVE

ASSY. - remote (Order A66726 Figure 200)

1шт.

47

A57605

LEVER

- shifter shaft (upper)

1шт.

48

A57604

LEVER

- shifter shaft (lower)

1шт.

49

A30875

RETAINER

- felt washer (17/32" hole)

1шт.

50

A30853

WASHER

- felt (1/2 x 15/16 x 1/4")

1шт.

51

A27409

WASHER

- spool seal (33/64 x 63/64 x 1/32")

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle (1/2 x 11/16 x 1/32")

1шт.

53

A30880

RETAINER

- felt washer (49/64" hole)

1шт.

54

A30879

WASHER

- felt (3/4 x 1-3/16 x 1/4")

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spool seal (49/64 x 1-15/64 x 1/32")

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - shaft seal (3/4 x 15/16 x 3/32")

1шт.

57

A57546

ARM

ASSY. - spool shifter (upper)

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt., hdless. cup pt.)

1шт.

63

A57547

ARM

ASSY. - spool shifter (lower)

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt., hdless. cup pt.)

1шт.

65

A57554

PLUNGER

- valve spool, upper

1шт.

66

A57555

PLUNGER

- valve spool, lower (w/hole)

1шт.

67

A30883

SPRING

- plunger, hydraulic valve spool

2шт.

68

75-414

SCREW,Rd, 1/4" x 7/8"

- machine (1/4 x 7/8" N.C. rd. hd.)

4шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

70

A57552

CAP

- hydraulic valve body

1шт.

71

A30854

GASKET

- hydraulic valve body cap

1шт.

72

86512512

PLUG,7/8" - 14 ORB

1шт.

73

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

78

A34392

PLUG

- pilot relief valve

1шт.

79

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

80

A34694

SHIM,.0201" Thk

Pilot relief spring .0201" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

81

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

82

A34391

SHIM,.0149" Thk

Pilot relief spring .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

82

A34390

SHIM,.0329" Thk

Pilot relief valve .0329" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

83

A34849

SHIM,.0105" Thk

Pilot relief spring .0105" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

84

A34492

SPRING

- pilot relief (49/64" O.D. x 23/32" free length)

1шт.

85

A57558

RETAINER

- pilot spring

1шт.

86

A57556

PISTON

ASSY. - pilot

1шт.

87

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot relief sleeve (5/8 x 3/4 x 1/16")

2шт.

88

A34382

SPRING

- pilot relief valve (15/32" O.D. x 1" free length)

1шт.

89

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

90

A57553

PISTON

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal (Includes ref. 9,16,22,36,37 Figure 203E and 49 thru 56, 71, 73, 79, 87 & 89 Figure 203E)

1шт.

A42888

KIT

- seal, pilot relief valve (Includes ref. 79, 87 & 89)

1шт.
