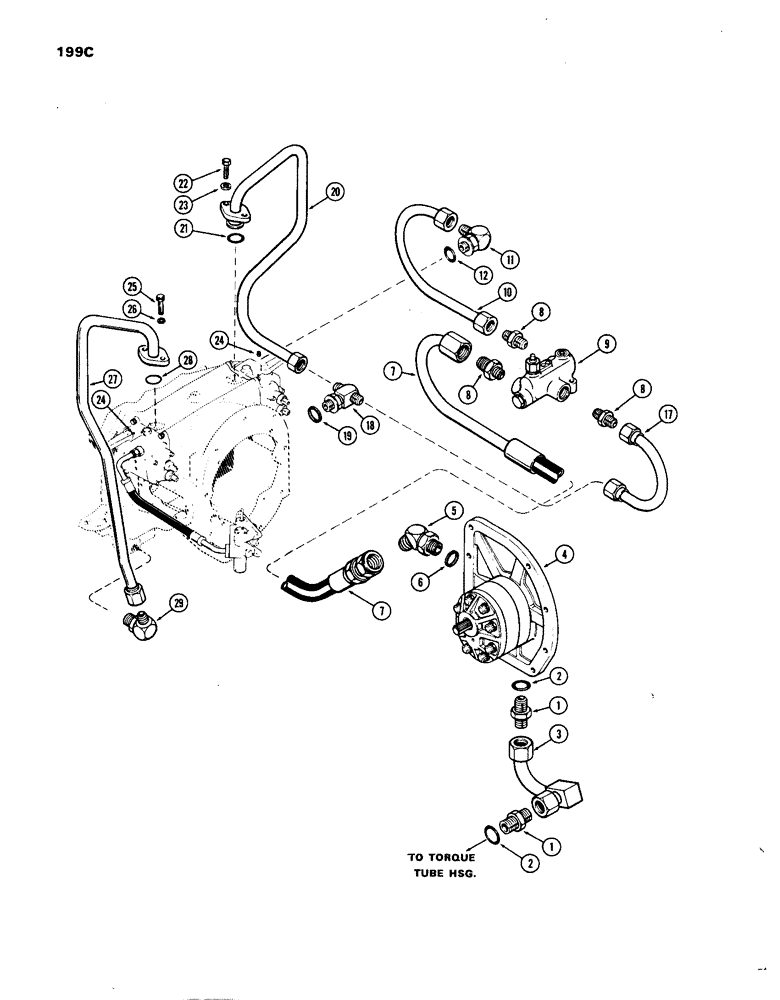

Запчасти Case IH 1270 (199C) - HYDRAULICS, RIGHT HAND STD. REMOTES, W/ OPTIONAL LEFT HAND, USED PRIOR TO TRANSMISSION S/N 2414447 (08) - HYDRAULICS

1

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSY. - straight, 1" tube x 1-1/16"-12

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1 x 1-11/64 x 1/8")

1шт.

3

A64183

TUBE

- torque, Serial Range: tube-pump

1шт.

4

A64174

PUMP

ASSY. - L.H. variable remotes (Repairs Figure 204)

1шт.

5

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 3/4" tube x 1-1/16"-12, 45 deg.

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 93/4 x 59/64 x 1/8")

1шт.

7

A64184

TUBE

- pump to flow divider valve

1шт.

8

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight (3/4" tube x 3/4" P.T.)

3шт.

9

REF

INSTRUCTION

VALVE ASSY. - flow divider (See Figure 205A)

1шт.

10

A65611

TUBE

- divider valve to L.H. remote valve

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 3/4" tube x 1-1/16"-12, 90 deg.

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

17

A64186

TUBE

- divider valve to sump tee

1шт.

18

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - trans. case (3/4" tube x 3/4" tube x 1-1/16"-12)

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

20

A65612

TUBE

- tee to sump (Replaces A64437)

1шт.

21

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket)

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 3/4" N.C. hex.)

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

A64018

PIPE

TUBE - trans., Serial Range: case-manifold

1шт.

28

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

29

A64020

ELBOW

- tube to manifold (7/8"-14 x 1-1/16"-12, 90 deg.)

1шт.
