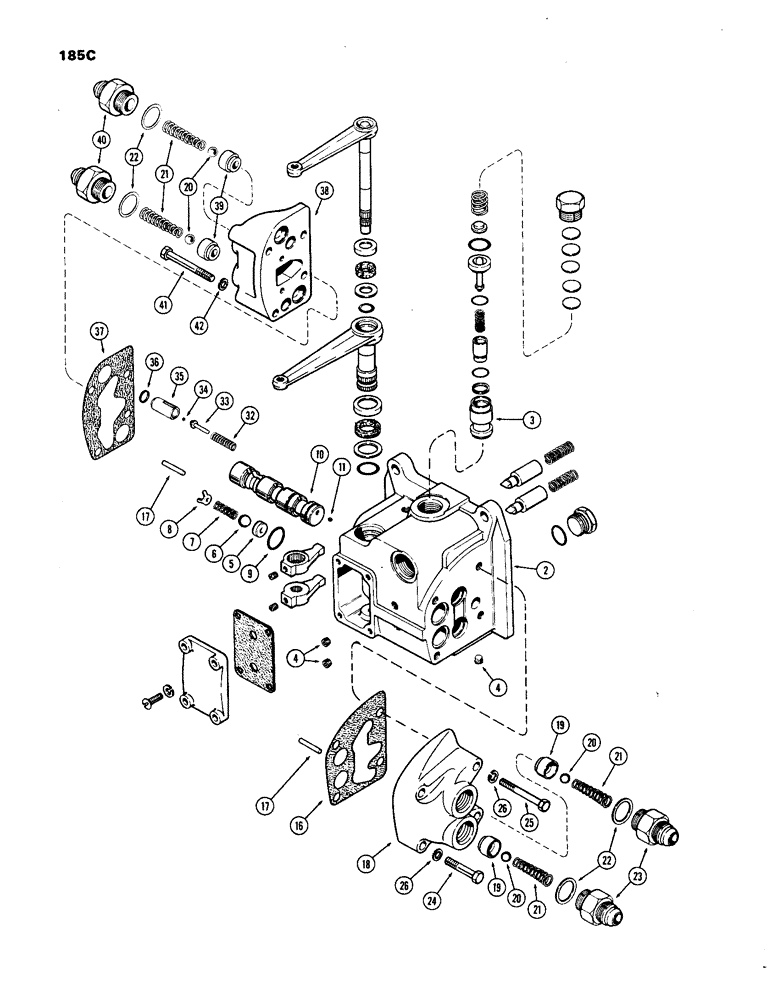

Запчасти Case IH 1270 (185C) - A63534 HYDRAULIC CONTROL VALVE, RIGHT HAND STANDARD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A63534
VALVE
ASSY. - remote (Order A66726 Figure 182)
1шт.
2
A63535
BODY
ASSY. - hydraulic valve
1шт.
3
A57536
SLEEVE
- hydraulic valve pilot relief
1шт.
4
221-849
PLUG,Hex Soc, 1/8"-27
- pipe (1/8" hex. socket)
3шт.
5
A57537
SEAT
- hydraulic valve body ball check
4шт.
6
211-15
BALL,5/8" Dia
- (5/16" dia.)
4шт.
7
A27452
SPRING
- check (1/2" O.D. x 1-1/8" free length)
4шт.
8
A27364
GUIDE
- ball check spring
4шт.
9
A58602
O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro
"O" RING - (15/16 x 1-1/8 x 3/32")
4шт.
10
A57538
SPOOL
ASSY. - hydraulic valve
2шт.
11
211-5
BALL,3/16" Dia
- (.) 3/16" Dia
1шт.
16
A57560
GASKET
- hydraulic valve head, front
1шт.
17
A57559
SPOOL
- auxiliary
4шт.
18
A57564
VALVE
HEAD ASSY. - hydraulic valve, front
1шт.
19
NSS
NOT SOLD SEPARAT
SEAT - ball
2шт.
20
211-13
BALL,1/2" Dia
- return, hydraulic valve (chrome steel) 1/2" Dia
4шт.
21
A30877
SPRING
- check, return ball
4шт.
22
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - (3/4 x 59/64 x 1/8")
4шт.
23
A64708
FITTING
- hydraulic valve outlet
2шт.
24
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
25
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- (3/8 x 2-1/2" N.C. hex.)
2шт.
26
92-6
LOCK WASHER,3/8"
4шт.
32
A57396
SPRING
- relief ball (21/64" O.D. x 1-1/8" free length)
2шт.
33
A62272
GUIDE
- thermal valve ball
2шт.
34
211-3
BALL,1/8" Dia
- (.) 1/8" Dia
2шт.
35
A62273
SEAT
- valve
2шт.
36
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
"O" RING - valve (3/8 x 9/16 x 3/32")
2шт.
37
A57561
GASKET
- hydraulic valve head, rear
1шт.
38
A57565
VALVE
HEAD ASSY. - hydraulic valve, rear
1шт.
39
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
40
A64708
FITTING
- hydraulic valve outlet
2шт.
41
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- (3/8 x 2-3/4" N.C. hex.)
4шт.
42
92-6
LOCK WASHER,3/8"
4шт.
Выбрано товаров: 33
