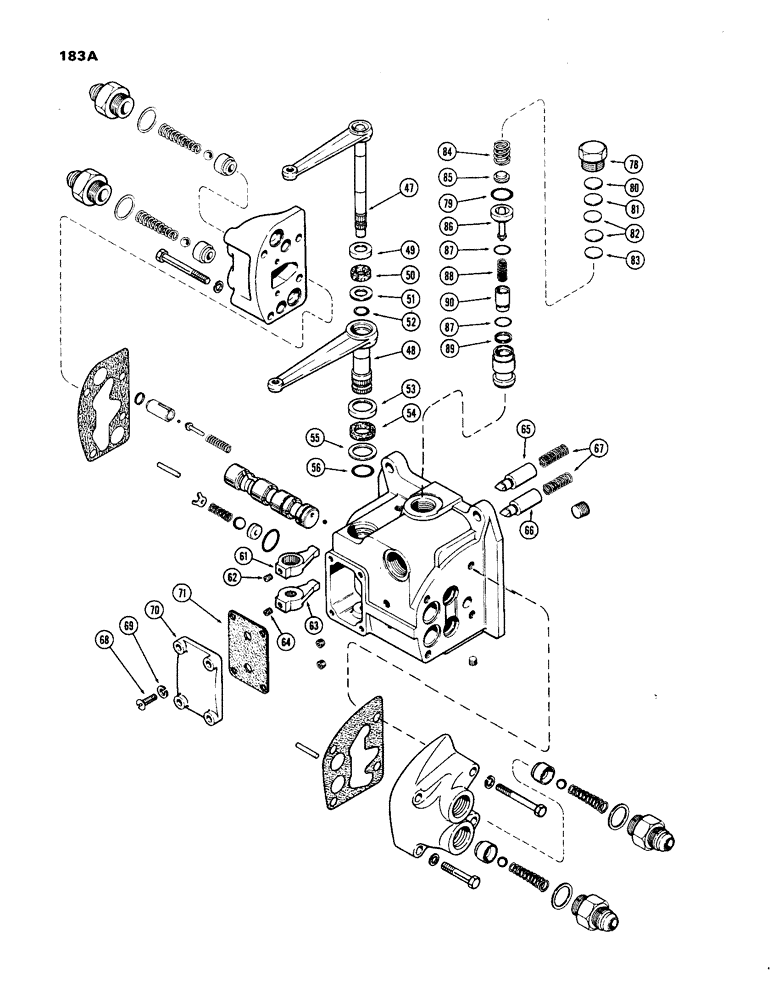

Запчасти Case IH 1270 (183A) - A66726 HYDRAULIC CONTROL VALVE, RIGHT HAND STANDARD (08) - HYDRAULICS

A66726

VALVE

ASSY. - remote, Includes: Ref. 47 - 90 and 2 - 42 on Fig. 182

1шт.

47

A57605

LEVER

- shifter shaft (outer)

1шт.

48

A57604

LEVER

- shifter shaft (inner)

1шт.

49

A30875

RETAINER

- felt washer (17/32" hole)

1шт.

Part of Seal Kit, P/N A43086

1шт.

50

A30853

WASHER

- felt (1/2 x 15/16 x 1/4")

1шт.

Part of Seal Kit, P/N A43086

1шт.

51

A27409

WASHER

- spool seal (33/64 x 63/64 x 1/2")

1шт.

Part of Seal Kit, P/N A43086

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle (1/2 x 11/16 x 3/32")

1шт.

Part of Seal Kit, P/N A43086

1шт.

53

A30880

RETAINER

- felt washer (49/64" hole)

1шт.

Part of Seal Kit, P/N A43086

1шт.

54

A30879

WASHER

- felt (3/4 x 1-3/16 x 1/4")

1шт.

Part of Seal Kit, P/N A43086

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spool seal (49/64 x 1-15/64 x 1/32")

1шт.

Part of Seal Kit, P/N A43086

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - shaft seal (3/4 x 15/16 x 3/32")

1шт.

Part of Seal Kit, P/N A43086

1шт.

61

A57546

ARM

ASSY. - spool shifter lever (upper)

1шт.

62

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

63

A57547

ARM

ASSY. - spool shifter lever (lower), Includes: Ref. 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless, cup pt.)

1шт.

65

A57554

PLUNGER

- upper, valve spool

1шт.

66

A57555

PLUNGER

- lower, valve spool (w/hole)

1шт.

67

A66472

SPRING

- plunger (9/16" O.D. x 1-21/32" free length)

2шт.

68

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

70

A66435

CAP

- valve body

1шт.

71

A76374

GASKET

- body cap

1шт.

Part of Seal Kit, P/N A43086

1шт.

78

A34392

PLUG

- pilot relief valve

1шт.

79

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

Part of Seal Kit, P/N A42888

1шт.

Part of Seal Kit, P/N A43086

1шт.

80

A34694

SHIM,.0201" Thk

Pilot relief spring .0201" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

81

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

82

A34391

SHIM,.0149" Thk

Pilot relief spring .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

82

A34390

SHIM,.0329" Thk

Pilot relief spring .0329" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

83

A34849

SHIM,.0105" Thk

Pilot relief spring .0105" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

84

A34492

SPRING

- pilot relief (49/64" O.D. x 23/32" free length)

1шт.

85

A57558

RETAINER

- pilot spring

1шт.

86

A57556

PISTON

ASSY. - pilot

1шт.

87

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - sleeve (5/8 x 3/4 x 1/16")

2шт.

Part of Seal Kit, P/N A42888

1шт.

Part of Seal Kit, P/N A43086

1шт.

88

A34382

SPRING

- pilot relief (15/32" O.D. x 1" free length), Includes: Ref. 89 and 90

1шт.

89

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Part of Seal Kit, P/N A42888

1шт.

Part of Seal Kit, P/N A43086

1шт.

90

A57553

PISTON

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal (Includes ref. 9, 16, 22, 36 & 37 Figure 182 and 49 thru 56, 71, 73, 79, 87 & 89 on this Fig.)

1шт.

A42888

KIT

- seal, relief valve (Includes ref. 79, 87 & 89)

1шт.
