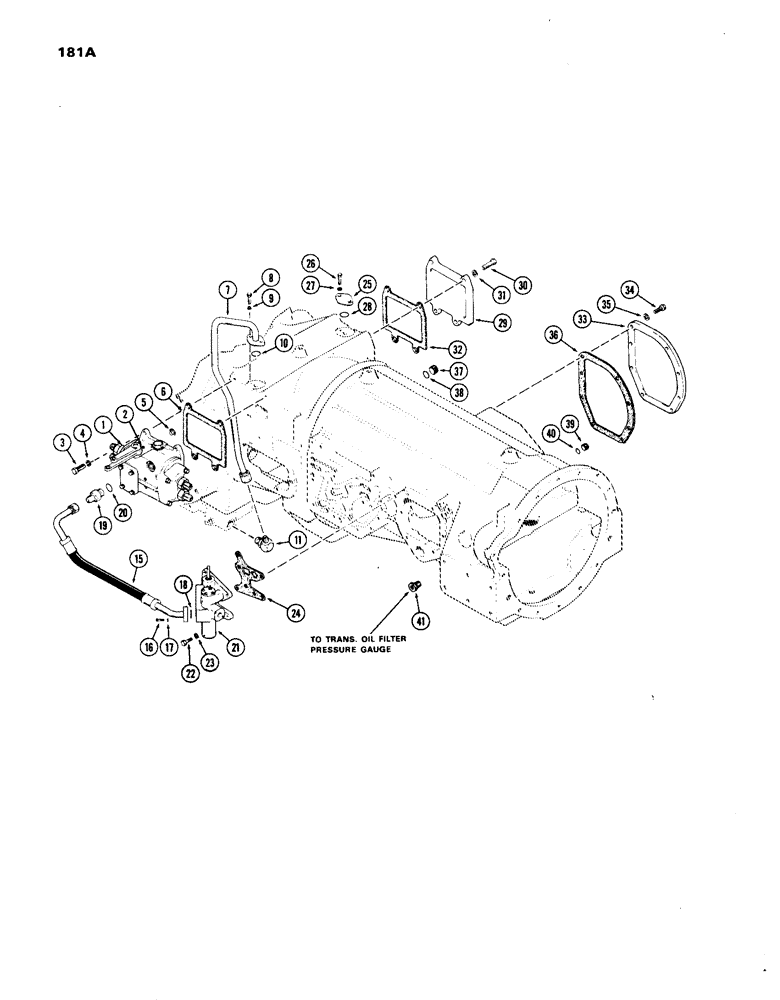

Запчасти Case IH 1270 (181A) - HYDRAULICS, RIGHT HAND STANDARD REMOTE HYDRAULICS CIRCUITRY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY. - remote (See Fig. 182, 184 & 185C)

1шт.

2

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket) (in valve)

1шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET - valve port (21/32 x 29/32" nylon)

1шт.

6

A65509

GASKET

- valve body (Replaces A34138)

1шт.

7

A64018

PIPE

TUBE -, Serial Range: oil-manifold

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

11

A64020

ELBOW

- 90deg. (in manifold)

1шт.

15

A64328

HYD TUBE

- pressure, regulator valve

1шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - 3/4" tube x 1-1/16" - 12, Incl. Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 93/4 x 59/64 x 1/8")

1шт.

21

REF

INSTRUCTION

VALVE ASSY. - P.T.O. & clutch regulator (See Figure 158)

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A66113

GASKET

-, Serial Range: valve-housing

1шт.

25

A63771

PLATE

CAP - flange

1шт.

26

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

27

92-5

LOCK WASHER,5/16"

2шт.

28

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

29

A63772

COVER

- remote valve opening L.H.

1шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

31

92-8

LOCK WASHER,1/2"

4шт.

32

A65509

GASKET

- cover (Replaces A34138)

1шт.

33

A63792

PLATE

COVER - pump opening

1шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

35

92-6

LOCK WASHER,3/8"

8шт.

36

A63793

GASKET

- cover pump opening

1шт.

37

9841223

PLUG,1-1/16" - 12 ORB

ASSY. - trans. case (3/4" tube x 1-1/16 - 12), Incl. Ref. 38

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

39

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Assy - torque tube (1" tube x 1-5/16" - 14), Incl. Ref 40

1шт.

40

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1 x 1-23/32 x 1/8")

1шт.

41

221-87

REDUCER,1/2" NPT x 1/8" NPT

BUSHING - reducing (1/2 x 1/8" P.T.)

1шт.
