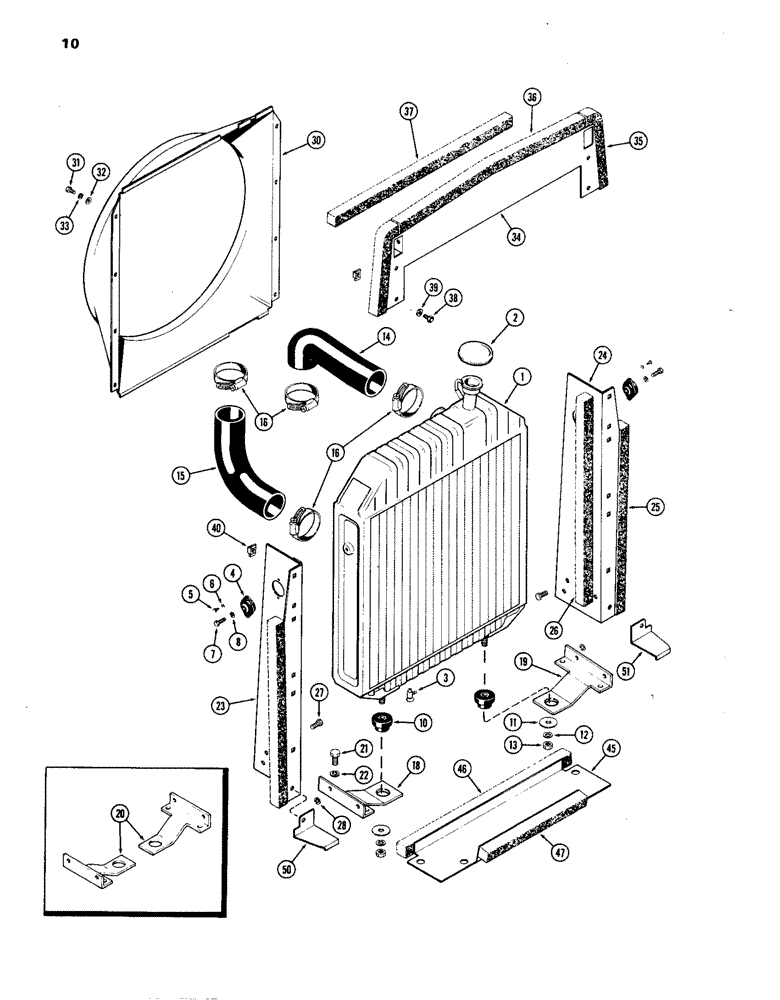

Запчасти Case IH 1270 (010) - RADIATOR AND ATTACHING PARTS, 451BDT, DIESEL ENGINE (02) - ENGINE

1

A64483

RADIATOR

1шт.

2

A59861

RADIATOR

CAP - radiator, w/o air conditioner (7 PSI)

1шт.

2

A61784

CAP

- radiator, w/air conditioner (14 PSI)

1шт.

Ref #2B - A141846 Radiator Cap, 10 PSI Non-Vented

1шт.

3

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

4

A64069

MOUNTING PARTS

MOUNT - radiator support

2шт.

5

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6 x 3/8" N.F. rd. hd.

4шт.

6

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

7

13-426

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- 1/4 x 5/8" N.C. hex.

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

A59863

MOUNTING PARTS

MOUNT - center bonded

2шт.

11

NLS

NO LONGER SERVICED

- center bonded mount snubber

2шт.

12

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

14

A63727

LARGE HOSE,2.50" ID x 10.90", SAE 20R4 CLASS D2

RADIATOR HOSE, , Inlet 2.50" ID x 10.90", SAE 20R4 CLASS D2

1шт.

15

A63728

HOSE,2.62" ID x 7.90", SAE 20R4 CLASS R GRADE 1 OR 1A

RADIATOR HOSE, , Outlet 2.62" ID x 7.90", SAE 20R4 CLASS R GRADE 1 OR 1A

1шт.

16

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

4шт.

18

A65098

BRACKET

- radiator, R.H. (1st used trac. ser. no. 8706063)

1шт.

19

A65099

BRACKET - radiator, L.H. (1st used trac. ser. no. 8706063)

1шт.

20

A63715

BRACKET - radiator (used prior to trac. ser. no. 8706063)

2шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

A63716

SUPPORT

ASSY. - radiator side, R.H. (Incl. Refs. 25 & 26)

1шт.

24

A63717

SUPPORT

ASSY. - radiator side, L.H.

1шт.

25

A63720

SEAL

- radiator, outside

1шт.

To be attached with adhesive

1шт.

26

A63721

SEAL

- radiator, inside

1шт.

To be attached with adhesive

1шт.

27

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8 x 1/2" N.C. hex.

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

30

A63726

SHROUD

- fan

1шт.

31

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

32

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

8шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

34

A63722

BAFFLE

ASSY. - radiator front

1шт.

35

A63724

SEAL

- radiator, upper

2шт.

To be attached with adhesive

1шт.

36

A63725

SEAL

- radiator, top upper

1шт.

To be attached with adhesive

1шт.

37

A63720

SEAL

- radiator, top lower

1шт.

To be attached with adhesive

1шт.

38

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

39

92-5

LOCK WASHER,5/16"

4шт.

40

1502286C2

NUT,Floating Cage, 5/16"-18

- 5/16" N.C. Tinnerman

4шт.

45

A63711

BAFFLE

ASSY. - radiator lower, Includes: Ref. 46 and 47

1шт.

46

A63713

SEAL

- radiator, lower

1шт.

To be attached with adhesive

1шт.

47

A63714

SEAL - radiator baffle, front

1шт.

To be attached with adhesive

1шт.

50

A63870

BAFFLE

- radiator lower, R.H.

1шт.

51

A63871

BAFFLE

- radiator lower, L.H.

1шт.
