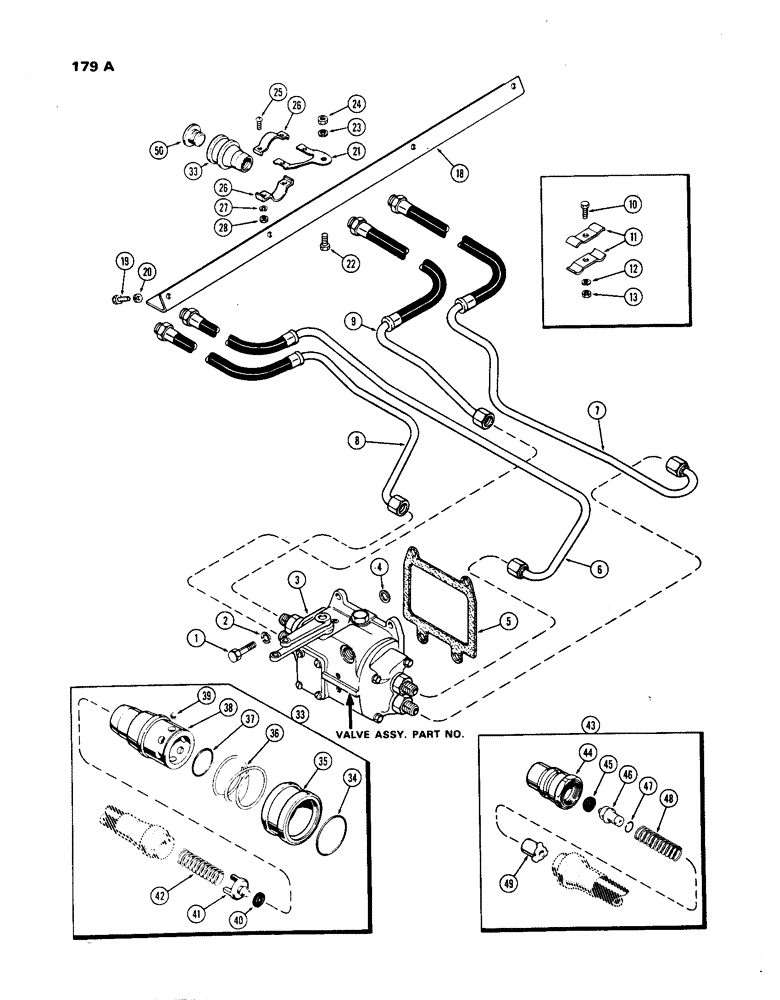

Запчасти Case IH 1270 (179A) - HYDRAULICS, RIGHT HAND STANDARD REMOTE HOSES AND COUPLINGS, FIRST USED TRANSMISSION S/N 2403837 (08) - HYDRAULICS

1

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N.C. hex.)

4шт.

2

92-8

LOCK WASHER,1/2"

4шт.

3

REF

INSTRUCTION

VALVE ASSY. - control (See Fig. 182, 184 & 185C)

1шт.

4

A32438

SNAP RING

GASKET - nylon, valve port (21/32 x 29/32 x 5/32")

1шт.

5

A65509

GASKET

- valve body (Replaces A34138)

1шт.

6

A65604

TUBE

- remote, upper front

1шт.

7

A65600

TUBE ASSY.

TUBE - remote, lower front

1шт.

8

A65606

TUBE

- remote, upper rear

1шт.

9

A65602

TUBE ASSY.

TUBE - remote, lowe rear

1шт.

10

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

11

A63323

CLAMP

- remote tubes

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

4шт.

18

A63537

BRACKET

- mounting, break-away coupling

1шт.

19

13-206

SCREW

BOLT - (3/8 x 3/4" N.C. hex.)

4шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

21

A27360

BRACKET

- mounting, break-away coupling

4шт.

22

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" N.C. Gripco)

4шт.

25

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- machine (#8-32 x 5/8" rd. hd.)

8шт.

26

A27423

CLAMP

- mounting, break-away coupling

8шт.

27

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

8шт.

28

129-6

NUT,#8-32

8шт.

33

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - female, break-away, Includes: Ref. 34 - 42

4шт.

34

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining

1шт.

35

A27353

SLEEVE

SLEEVE - lock & release

1шт.

36

A27354

SPRING

- sleeve tension

1шт.

37

A34848

O-RING

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

38

A27349

BODY

- coupling

1шт.

39

211-7

BALL,1/4" Dia

- steel 1/4" Dia

8шт.

40

A33964

SEAL

- piston

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

41

A26215

PISTON

- coupling

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

42

A11324

SPRING

- piston pressure

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

43

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - male, break-away, Includes: Ref. 44 - 49

1шт.

44

A27356

PIPE FITTING

BODY - coupling

1шт.

45

A33964

SEAL

- piston

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

46

A27508

PISTON

- coupling

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

47

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston (1/4 x 3/8 x 1/16")

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

48

A27351

SPRING

- piston

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

49

A9634

SLEEVE

- piston

1шт.

Part of Coupling Repair Kit P/N A40459

1шт.

A40459

KIT

- repair, coupling, Includes: Ref. 37, 40, 41, 42, 45, 46, 47, 48 and 49

1шт.

50

A65044

PLUG

- dust, female coupling (black) (upper)

2шт.

50

A65045

PLUG

- dust, female coupling (yellow) (upper)

2шт.
