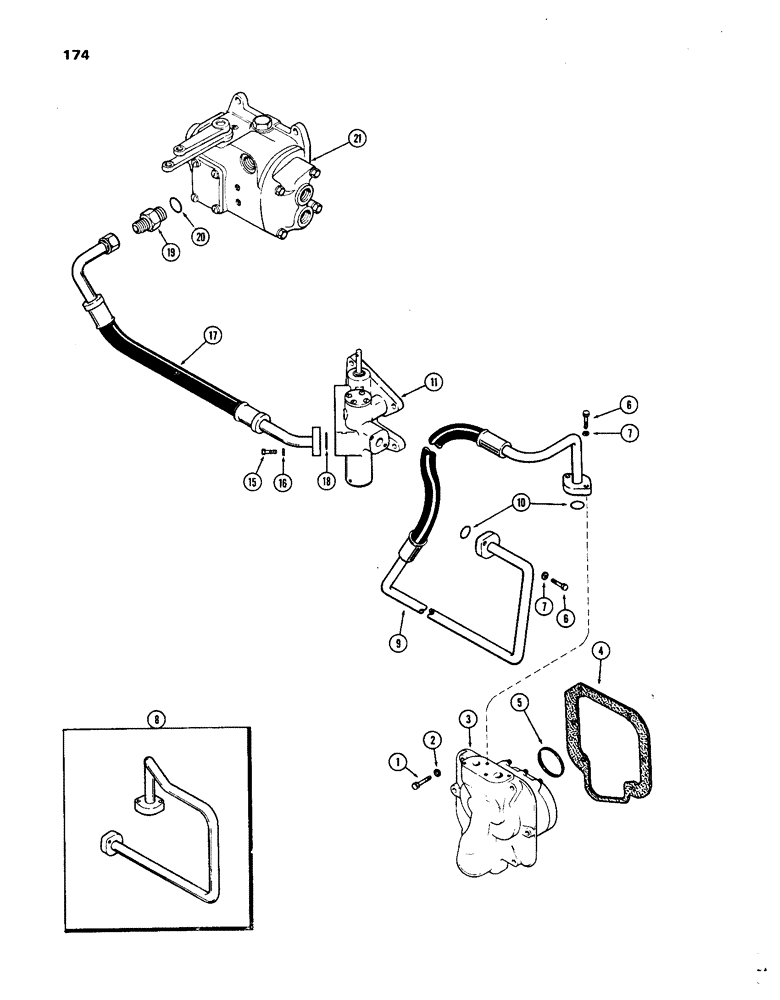

Запчасти Case IH 1270 (174) - HYDRAULICS, DOUBLE GEAR PUMP AND PLUMBING (08) - HYDRAULICS

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

2

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

3

A63302

PUMP

PUMP ASSY. - hyd., dual (For Repairs See Figure 175A)

1шт.

3

AR63302

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

3

AC63302

CORE-HYDRAULIC PUMP

Return Number

1шт.

4

A63304

GASKET

GASKET - hyd. dual pump

1шт.

5

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

SEAL - hyd. dual pump

1шт.

6

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - (5/16 x 1-1/4" N.C. hex.)

4шт.

7

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

8

A64329

SPARE PART TUBE ASSY. - pump to valve (Order A65078)

1шт.

9

A65078

TUBE

TUBE -, Serial Range: pump-valve

1шт.

10

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

2шт.

11

A65672

VALVE

VALVE ASSY. - P.T.O. & clutch regulator (Replaces A63353) (For Repairs See Figure 158)

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT - (5/16 x 1-1/4" N.C. hex.)

2шт.

16

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

17

A64328

HYD TUBE

TUBE - P.T.O. & clutch regulator valve to R.H. standard remote hydraulics valve

1шт.

18

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight (3/4" tube O.D.), Incl. Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

21

A66467

VALVE

VALVE ASSY. - R.H. remote hydraulics (Replaces A63534) (For Repairs See Figures 184 and 185A)

1шт.
