Запчасти Case IH 1270 (154) - POWER ASSIST BRAKE SYSTEM, POWER ASSIST BRAKE VALVE ASSEMBLY USED WITHOUT DIFFERENTIAL LOCK (07) - BRAKES

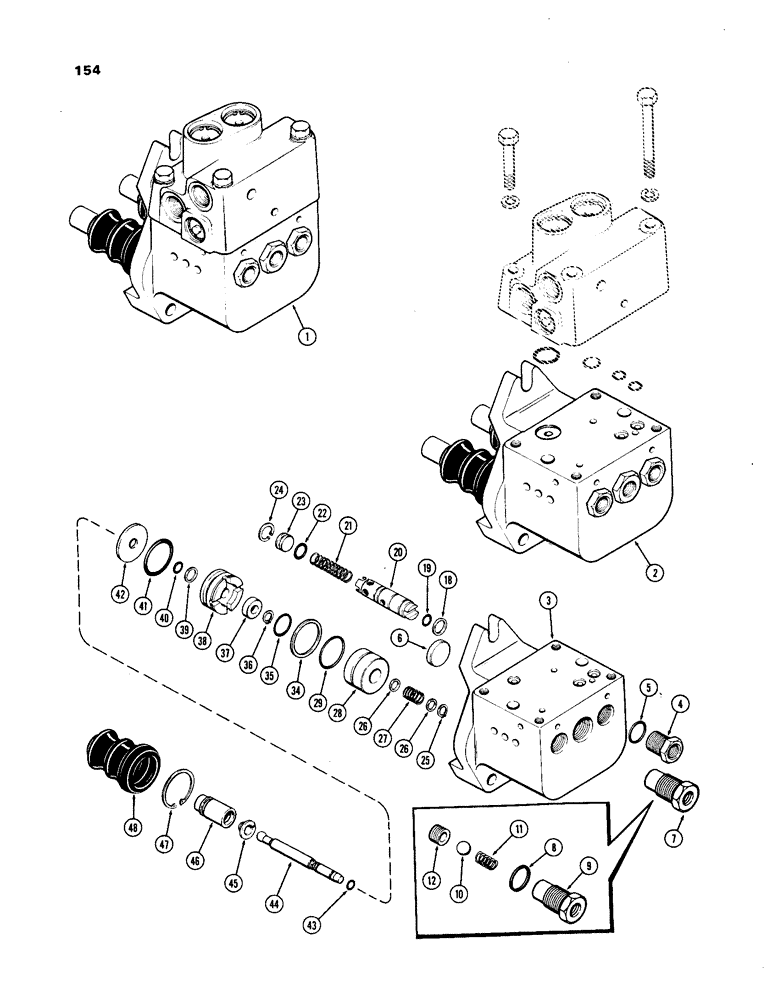

Схема запчастей Case IH 1270 - (154) - POWER ASSIST BRAKE SYSTEM, POWER ASSIST BRAKE VALVE ASSEMBLY USED WITHOUT DIFFERENTIAL LOCK (07) - BRAKES
46
36
43
23
2
21
29
4
42
11
3
37
40
20
22
5
35
39
38
27
45
1
8
19
7
24
18
26
44
25
28
10
9
47
48
12
26
41
6
34

Артикул

Название

Примечание

Количество

1

A65728

VALVE

ASSY. - power assist brake (Replaces A64909), Includes: Ref. 2 - 47

1шт.

2

A65731

VALVE

ASSY. - master cylinder (Replaces A64910), Includes: Ref. 3 - 47

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve, master cylinder (Order A65731)

1шт.

4

A59948

PLUG

- reducer, valve body

2шт.

6

41-1016

PLUG,Cup, 1"

- cup, valve body

1шт.

7

A60643

VALVE

ASSY. - relief (Replaces A61508), Includes: Ref. 8 - 12

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - relief valve (3/4 x 15/16 x 3/32")

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

10

211-12

BALL,7/16 Dia

- (7/16" dia)

1шт.

11

A61510

SPRING

- compression (21/32" free length)

1шт.

12

A61511

SEAT

- relief valve

1шт.

18

A59951

RING

- sealing, boost spool

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Boost spool

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

20

A61104

SPOOL

- boost

2шт.

21

A59950

SPRING

- boost spool (1-3/4" free length)

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - (7/16 x 5/8 x 3/32")

2шт.

23

A64911

PLUG

- boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , boost spool plug 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston spring retainer #31, Ext

2шт.

26

A59958

RETAINER

- piston spring (1/16" thick) (Order A65936)

4шт.

26

A65936

COLLAR

RETAINER - piston spring (1/8" thick) (inner only)

2шт.

27

A59957

SPRING

- piston (21/32" free length)

2шт.

28

A59953

PISTON

- master cyl. boost

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - piston (1-3/16 x 1-5/16 x 1/16")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

34

A59955

SEALING RING

RING - sealing, rectangular

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

35

T22211

X

"O" RING - piston (3/4 x 7/8 x 1/16")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston seal #31, Ext

2шт.

37

A64912

WASHER

- piston seal

2шт.

38

A62072

SEAT

STOP - piston

2шт.

39

A59961

RING

- back-up, piston stop

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - piston stop (3/8 x 9/16 x 3/32")

2шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - piston stop (1-1/4 x 1-1/2 x 1/8")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

42

A60646

SPACER

RETAINER - piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - piston rod (3/16 x 5/16 x 1/16")

2шт.

44

A64913

ROD

- piston

2шт.

45

A60647

COLLAR

RETAINER - piston rod connector (Nylon)

2шт.

46

A63313

FITTING

CONNECTOR - piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston stop 1.50", Int, #150

2шт.

48

A59966

BOOT

- piston rod

2шт.

A43710

KIT

- repair, power brake valve assy., (Not Illust.) Includes: Ref. 5, 18, 19, 22, 29, 34, 35, 39, 40, 41, 43, 45 and 48

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - valve body reducer (41/64 x 13/16 x 3/32")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.
