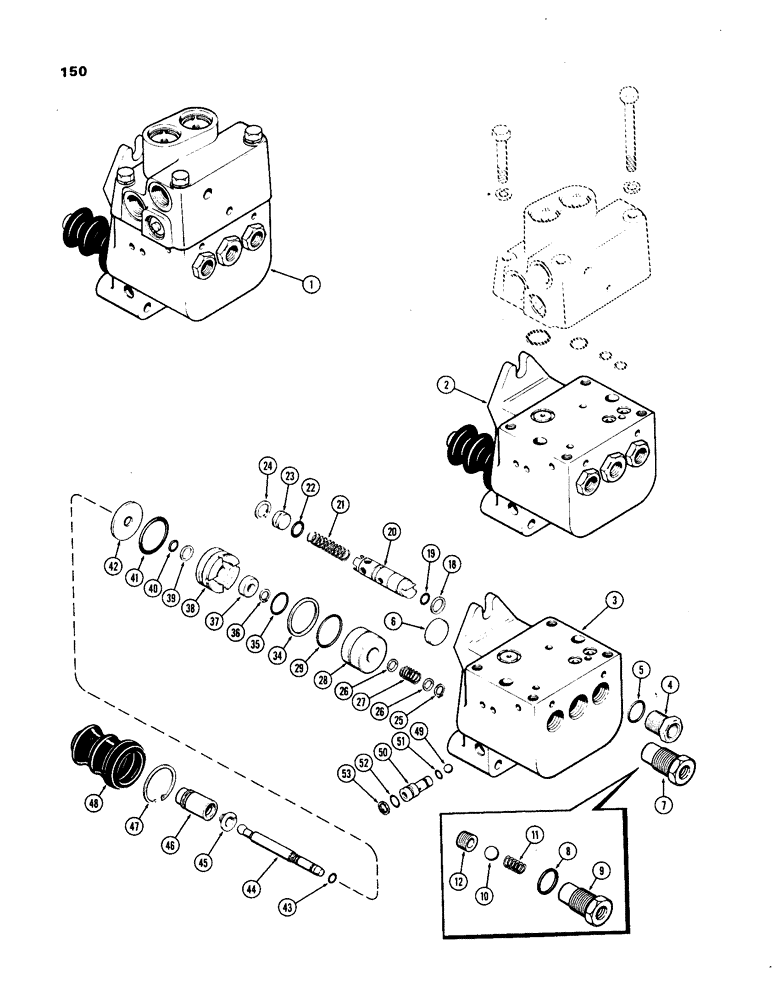

Запчасти Case IH 1270 (150) - POWER ASSIST BRAKE SYSTEM, POWER ASSIST BRAKE VALVE ASSEMBLY USED WITH DIFFERENTIAL LOCK (07) - BRAKES

1

A65727

VALVE

ASSY. - power assist brake, (Replaces A64920), Includes: Ref. 2 - 53

1шт.

2

A65729

VALVE

ASSY. - master cylinder (Replaces A64921), Includes: Ref. 3 - 12

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - valve, master cylinder (Order A65729)

1шт.

4

A59948

PLUG

- reducer, valve body

2шт.

6

41-1016

PLUG,Cup, 1"

- valve body

1шт.

7

A60643

VALVE

ASSY. - relief (Replaces A61508), Includes: Ref. 8 - 12

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - relief valve (3/4 x 15/16 x 3/32")

1шт.

Part of power brake valve repair kit P/N A43710

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

10

211-12

BALL,7/16 Dia

- (7/16" dia.)

1шт.

11

A61510

SPRING

- relief valve (21/32" free length)

1шт.

12

A61511

SEAT

- relief valve

1шт.

18

A59951

RING

- seal, master cyl. boost spool

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

19

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Boost spool

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

20

A61104

SPOOL

- boost, master cylinder

2шт.

21

A59950

SPRING

- master cyl. boost spool (1-3/4" free length)

2шт.

22

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - (7/16 x 5/8 x 3/32")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

23

A64911

PLUG

- master cyl. boost spool

2шт.

24

G46147

SNAP RING,0.625", Int, #62

Ring, Snap, , master cyl. boost spool 0.625", Int, #62

2шт.

25

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston spring retaining #31, Ext

2шт.

26

A59958

RETAINER

- spring (1/16" thick) (Order A65936)

4шт.

26

A65936

COLLAR

RETAINER - spring (1/8" thick) (inner only)

2шт.

27

A59957

SPRING

- master cyl. piston (21/32" free length)

2шт.

28

A59953

PISTON

- boost, master cyl.

2шт.

29

A59954

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

"O" RING - master cyl. piston (1-3/16 x 1-5/16 x 1/16")

2шт.

34

A59955

SEALING RING

RING - sealing, master cyl. piston

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

35

T22211

X

"O" RING - (3/4 x 7/8 x 1/16")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

36

G10659

SNAP RING,#31, Ext

Ring, Snap, , piston seal washer #31, Ext

2шт.

37

A64912

WASHER

- seal, piston

2шт.

38

A62072

SEAT

STOP - piston

2шт.

39

A59961

RING

- back-up, piston stop

2шт.

40

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - piston stop (3/8 x 9/16 x 3/32")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

41

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - piston stop (1-1/4 x 1-1/2 x 1/8")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

42

A60646

SPACER

RETAINER - piston stop

2шт.

43

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - piston rod (3/16 x 5/16 x 1/16")

2шт.

Part of power brake valve repair kit P/N A43709

1шт.

44

A64913

ROD

- piston

2шт.

45

A60647

COLLAR

RETAINER - piston rod connector (nylon)

2шт.

Part of power brake valve repair kit P/N A43709

1шт.

46

A63313

FITTING

CONNECTOR - piston rod

2шт.

47

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston stop 1.50", Int, #150

2шт.

48

A59966

BOOT

- piston rod

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

49

211-11

BALL,3/8" Dia

- differential lock release

1шт.

50

A63312

SEAT

- differential lock release

2шт.

51

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - differential lock release

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

52

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - differential lock release

2шт.

Part of power brake valve repair kit P/N A43710

1шт.

53

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, , differential lock release 0.50", Int, #50

2шт.

A43710

KIT

- repair, power brake valve assy., (Not Illust.) Includes: Ref. 5, 8, 18, 19, 22, 29, 34, 35, 39, 40, 41, 43, 45, 48, 51 and 52

2шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - valve body reducer (41/64 x 13/16 x 3/32")

2шт.

Part of power brake valve repair kit P/N A43710

1шт.
