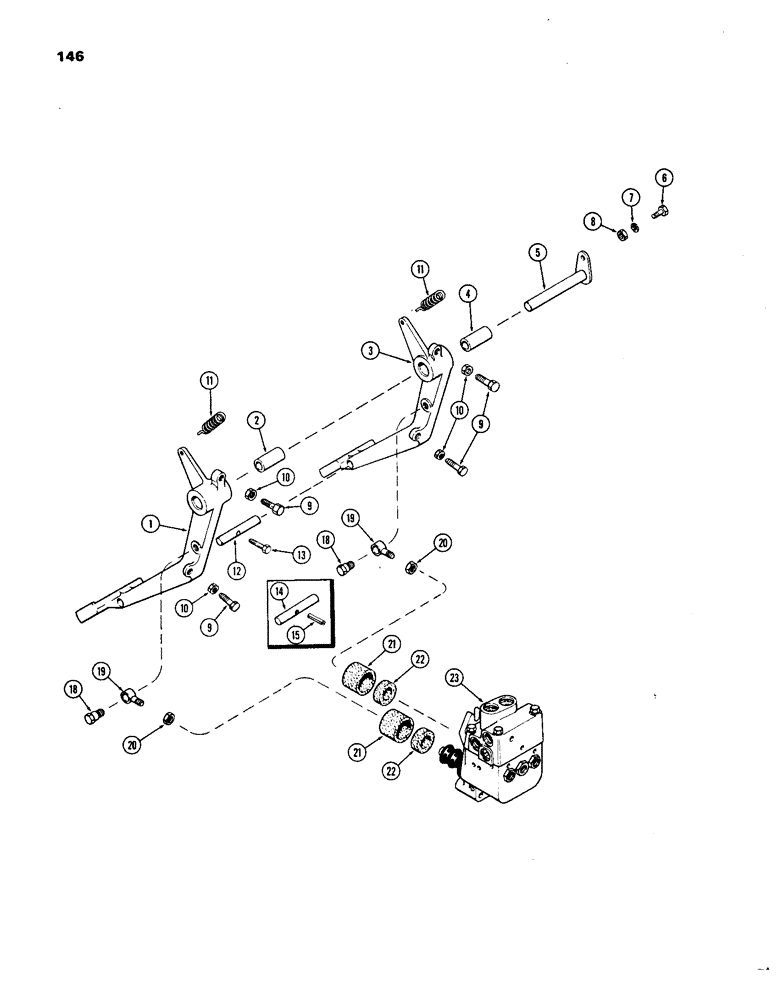

Запчасти Case IH 1270 (146) - POWER ASSIST BRAKE SYSTEM, BRAKE PEDALS AND CIRCUITRY (07) - BRAKES

1

A63370

PEDAL

ASSY. - brake (R.H.), Includes: Ref. 2

1шт.

2

A59475

BUSHING

- brake pedal

1шт.

3

A63371

PEDAL

ASSY. - brake (L.H.), Includes: Ref. 4

1шт.

4

A59475

BUSHING

- brake pedal

1шт.

5

A59452

SHAFT

- brake pedal pivot

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

4шт.

10

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. (5/16" N.C. jam)

4шт.

11

A59470

SPRING

- brake pedal return

2шт.

12

A65344

PIN

- brake pedal lock (Replaces A63369)

1шт.

13

A65343

BOLT

- lock pin (5/16 x 1-1/2" N.C. hex.) (Replaces 138-138)

1шт.

14

A63369

PIN

- brake pedal lock (Order A65343 & A65344)

1шт.

15

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

18

A59152

STEP BOLT

BOLT - shoulder, brake pedal to master cylinder

2шт.

19

A63314

BOLT

- eye, push rod

2шт.

20

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" N.C. jam)

2шт.

21

A61288

COLLAR

- air seal, outer

2шт.

22

A61287

COLLAR

- air seal, inner

2шт.

23

REF

INSTRUCTION

VALVE ASSY. - power assist brake (used w/differential lock) (See Figures 148 and 150)

1шт.

23

REF

INSTRUCTION

VALVE ASSY. - power assist brake (used w/o diff. lock) (See Figures 152 and 154)

1шт.
