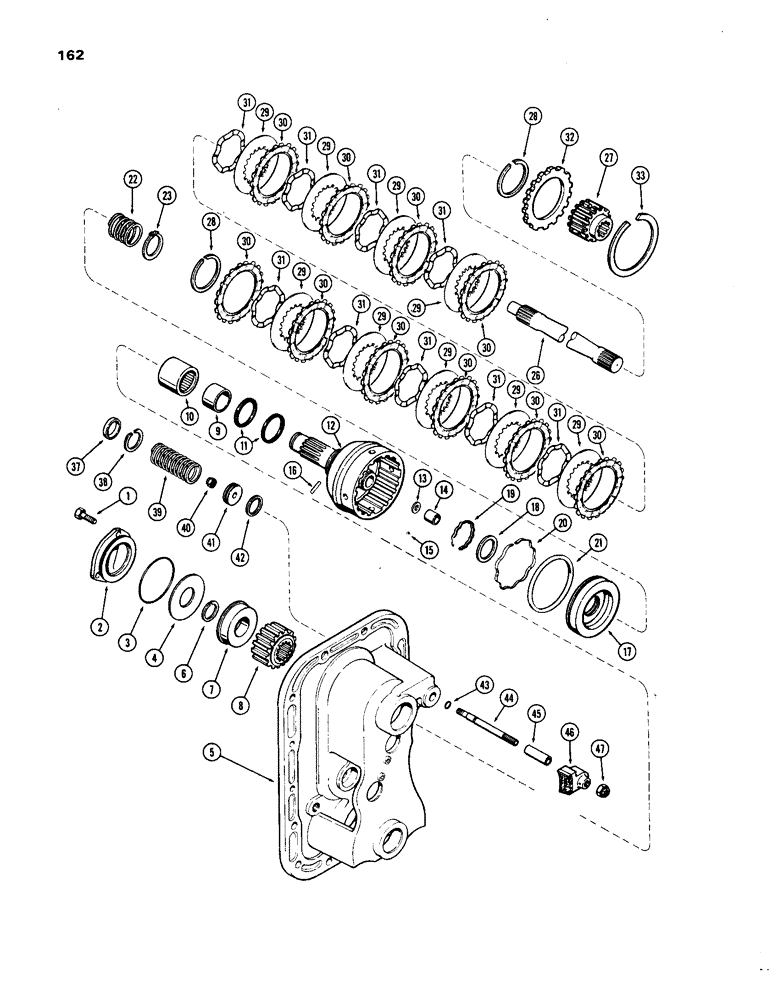

Запчасти Case IH 1270 (162) - P.T.O. CLUTCH AND BRAKE (06) - POWER TRAIN

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

2

A63272

COVER

- lube oil inlet

1шт.

3

A63274

O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro

"O" RING - inlet cover

1шт.

4

A63273

GUARD

SHIELD - oil

1шт.

5

A66405

HOUSING

- P.T.O. (Replaces A63252)

1шт.

6

A26946

RING

- snap, bearing retaining

1шт.

7

A63271

BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"

BEARING - ball, carrier (with snap ring)

1шт.

8

A63270

GEAR

- driver

1шт.

9

A63268

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.26"

SLEEVE - needle bearing

1шт.

10

A63269

NEEDLE BEARING,2.0625" ID x 2.5317" OD x 1"

BEARING - needle, carrier

1шт.

11

A63267

SEAL

RING - oil control, carrier

2шт.

12

A65820

CARRIER

ASSY. - piston & clutch (Replaces A64452), Includes: Ref. 13 - 16

1шт.

13

A63265

WASHER

- thrust, input shaft

1шт.

14

A64451

BUSHING,20.54mm ID x 25.41mm OD x 22.35mm L

BEARING - input

1шт.

15

211-6

BALL,7/32" Dia

steel 7/32" Dia

1шт.

16

138-2059

PIN,1/16" x 3/4", Coiled

1шт.

17

A63257

PISTON

- P.T.O. clutch

1шт.

18

A63258

SEAL

- piston, internal

1шт.

19

A63259

SPRING

- piston seal, internal

1шт.

20

A59012

SPRING

- piston seal, external

1шт.

21

A59011

RING

SEAL - piston, external

1шт.

22

A63260

SPRING

- piston return (1-5/8" I.D. x 1-3/4" free length)

1шт.

23

T37909

SNAP RING,#150, Ext

Ring, Snap, , return spring #150, Ext

1шт.

26

A64005

SHAFT - power input

1шт.

27

A65899

HUB

- clutch carrier (Replaces A63264)

1шт.

28

A32442

SNAP RING,#300, 2.830, Ext

RING - snap, external

2шт.

29

A65425

PLATE

- steel, P.T.O. clutch (Replaces A57170)

9шт.

30

A59231

PLATE

- sintered, P.T.O. clutch

10шт.

31

A59013

SPRING

- separator, clutch plate

8шт.

32

A63261

PLATE

- back-up, clutch

1шт.

33

A63262

RING

SNAP RING - back-up plate

1шт.

37

41-1628

PLUG,Cup, 1 3/4", Stainless

- Mercury

1шт.

38

A63279

RING, SNAP

SNAP RING - internal

1шт.

39

A64976

SPRING

- brake actuating (Replaces A63278)

1шт.

40

131-556

NUT

- (3/8" hex. Flexloc, heavy duty, thin)

1шт.

41

A58994

PISTON

- brake cylinder

1шт.

42

A58989

RING

- piston

1шт.

43

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" RING - actuating rod

1шт.

44

A63276

ROD

- brake actuating

1шт.

45

A63277

BUSHING

GUIDE - P.T.O. brake shoe support

1шт.

46

A65818

SHOE

ASSY. - brake facing carrier (Replaces A63275) (Includes facing. Facing no longer serviced)

1шт.

47

131-558

NUT

- lock (1/2" - 13 thin Flexloc)

1шт.
