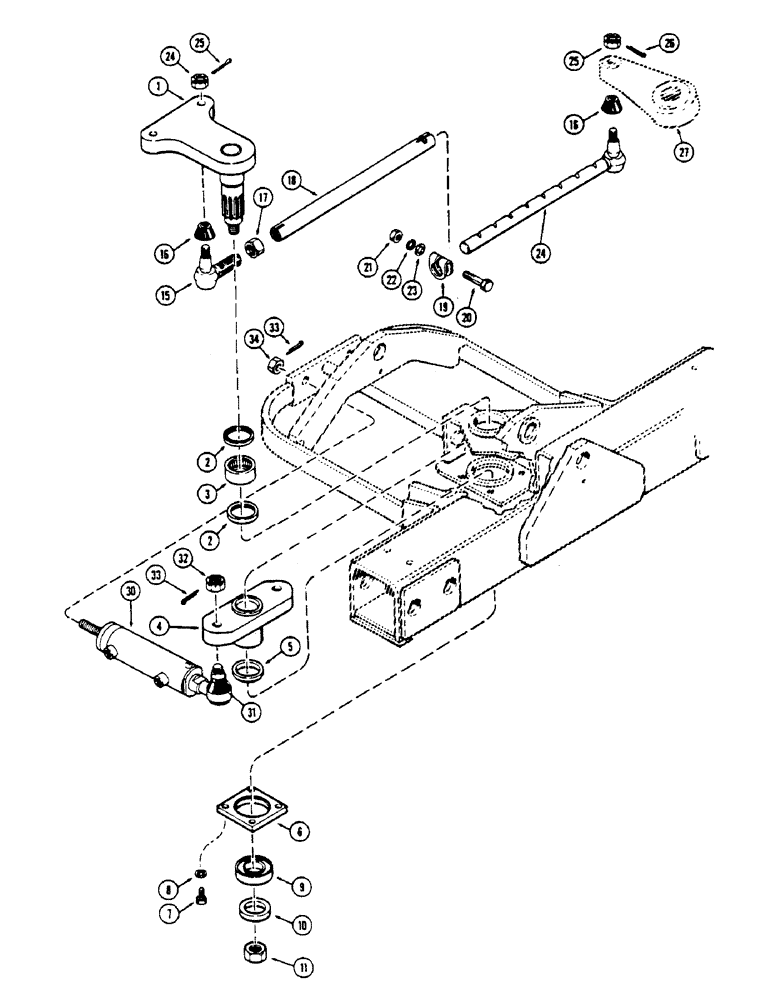

Запчасти Case IH 1175 (093A) - CENTER STEERING ARM AND TIE ROD, USED PRIOR TO TRACTOR SERIAL NUMBER 8736747 (05) - STEERING

1

A65613

ARM

- steering, upper center (Replaces A63985)

1шт.

2

A61414

OIL SEAL

- oil (2-1/8 x 2-1/2 x 3/16")

2шт.

3

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

1шт.

4

A62231

ARM

- steering, lower center

1шт.

5

A65539

WASHER

- center steering shaft (Replaces A62233)

1шт.

6

A62212

PLATE

CAP - bearing, center shaft

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A61888

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball, center steering

1шт.

10

195-2098

WASHER,15/16" x 2" x .238"

- 15/16 x 2 x 3/16"

1шт.

11

A65435

LOCK NUT

- lock (7/8" N.C. 2-way) (Replaces A59649)

1шт.

15

A44762

ROD

END - tie rod (Replaces A41512)

2шт.

16

A41515

SEAL

- dust, tie rod end

2шт.

17

A41511

NUT

- jam (1"-16 thrd.)

2шт.

18

A59659

TUBE

- tie rod (18-3/8" long)

2шт.

19

A41561

CLAMP

- tube

2шт.

20

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex.

2шт.

21

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

22

92-8

LOCK WASHER,1/2"

2шт.

23

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

24

A59658

STEERING TIE-ROD

ROD - tie (18" long. 8 notches)

2шт.

25

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - slotted, 5/8" N.F. hex.

4шт.

26

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

27

A64574

ARM

- steering, R.H. spindle

1шт.

27

A64575

ARM

- steering, L.H. spindle

1шт.

30

A62067

CYLINDER

- hydraulic (Repairs Figure 087C)

2шт.

31

A31186

BOOT

SEAL - weather

2шт.

32

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - slotted, 5/8" N.F. hex.

2шт.

33

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

34

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

2шт.
