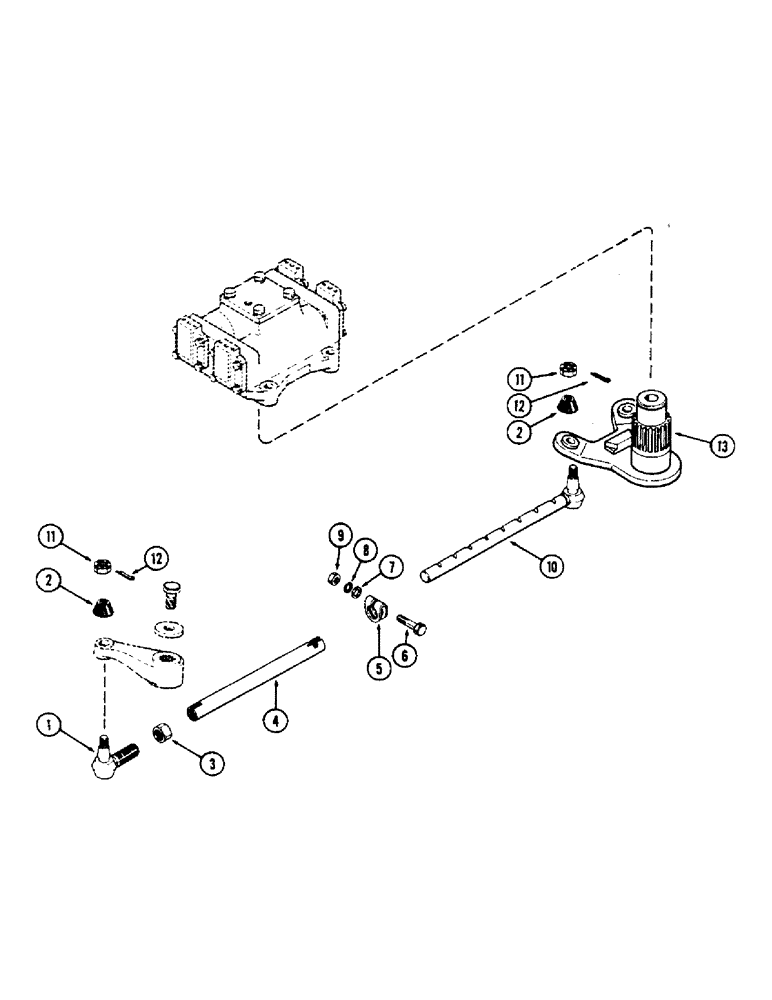

Запчасти Case IH 1175 (092) - TIE RODS, FIRST USED TRACTOR SERIAL NUMBER 8736747 (05) - STEERING

1

A44762

ROD

END - tie rod

2шт.

2

A45102

BOOT

SEAL - dust, tie rod end (Replaces A41515)

2шт.

3

A41511

NUT

- 1"-16 hex. jam

2шт.

4

A59659

TUBE

- tie rod, 18-3/8" long

2шт.

5

A41561

CLAMP

- tube

2шт.

6

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

10

A59658

STEERING TIE-ROD

ROD - tie, 18" long (8 notches)

2шт.

11

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex., sltd.

4шт.

12

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

13

A66466

STEERING KNUCKLE

SPINDLE - actuator (part of actuator assy.)

1шт.
