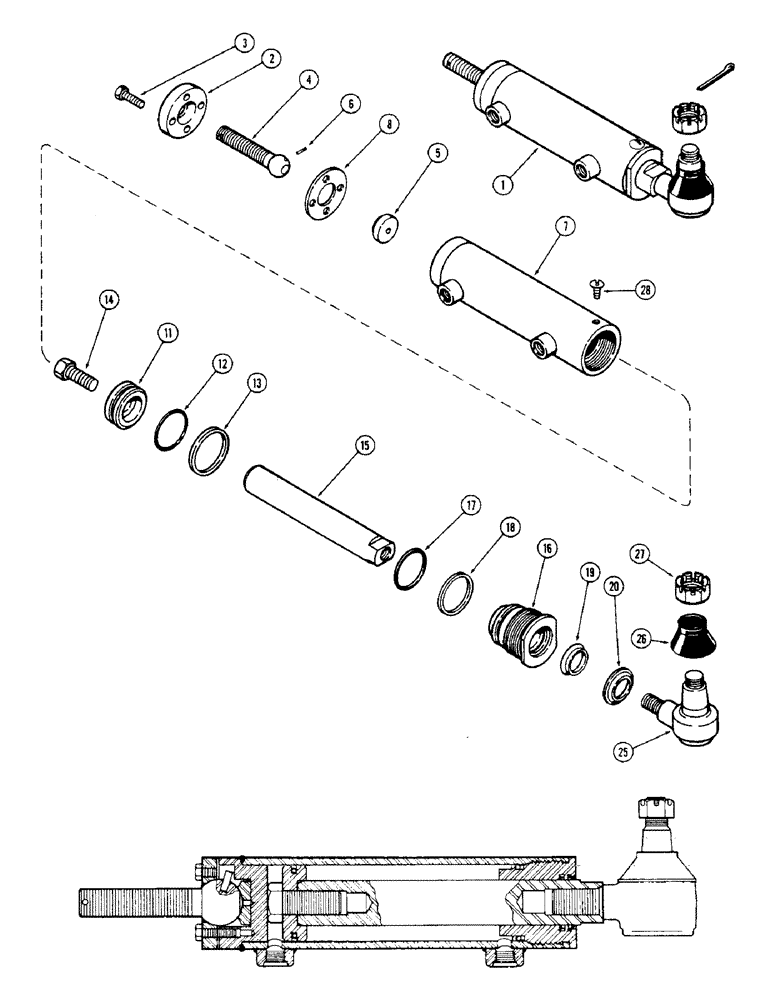

Запчасти Case IH 1175 (087C) - A62067 STEERING CYLINDER, USED PRIOR TO TRACTOR SERIAL NUMBER 8736747 (05) - STEERING

1

A62067

CYLINDER

ASSY. - steering, Includes: Ref. 2 - 28

1шт.

2

A61439

PLATE

- end

1шт.

3

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

- 1/4 x 7/8" N.F. hex

4шт.

4

A61431

STUD

- ball

1шт.

5

A57918

SEAT

- ball stud

1шт.

6

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order A62067)

1шт.

8

G32837

SHIM,.002" Thk

(Plastic) (Orange) .002" Thk

1шт.

8

G32838

SHIM,.003" Thk

(Plastic) (Cream) .003" Thk

1шт.

8

G32839

SHIM,.005" Thk

(Plastic) (Red) .005" Thk

1шт.

8

A61436

SHIM,.010" Thk

(Steel) .010" Thk

1шт.

8

A61437

SHIM,.025" Thk

(Steel) .025" Thk

1шт.

8

A61438

SHIM,.035" Thk

(Steel) .035" Thk

1шт.

11

A61428

PISTON ASSY.

PISTON

1шт.

12

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

"O" RING - piston, 1-11/16 x 1-7/8 x 3/32"

1шт.

Included w/ SEAL KIT, A43296

1шт.

13

A61430

SEALING RING

RING - seal, piston

1шт.

Included w/ SEAL KIT, A43296

1шт.

14

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

1шт.

15

A62068

ROD

- piston

1шт.

16

A62071

SHAFT

GLAND - packing

1шт.

17

A60212

O-RING

"O" RING - gland, 1-15/16 x 2-1/8 x 3/32"

1шт.

Included w/ SEAL KIT, A43296

1шт.

18

A62070

RING

- back-up

1шт.

19

A61425

SEAL

- piston rod

1шт.

Included w/ SEAL KIT, A43296

1шт.

20

A61426

WIPER SEAL

WIPER - piston rod

1шт.

Included w/ SEAL KIT, A43296

1шт.

25

A62069

HYDRAULIC SWIVEL

JOINT ASSY. - ball, Includes: Ref. 26 and 27

1шт.

26

A31186

BOOT

SEAL - dust

1шт.

27

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.C. hex

1шт.

28

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" rd. hd.

1шт.

A43296

KIT

- seal, Includes: Ref. 12, 13 and 17 - 20

1шт.
