Запчасти Case IH 1175 (087A) - A66604 STEERING ACTUATOR, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NUMBERS 8741587 TO 8757256 (05) - STEERING

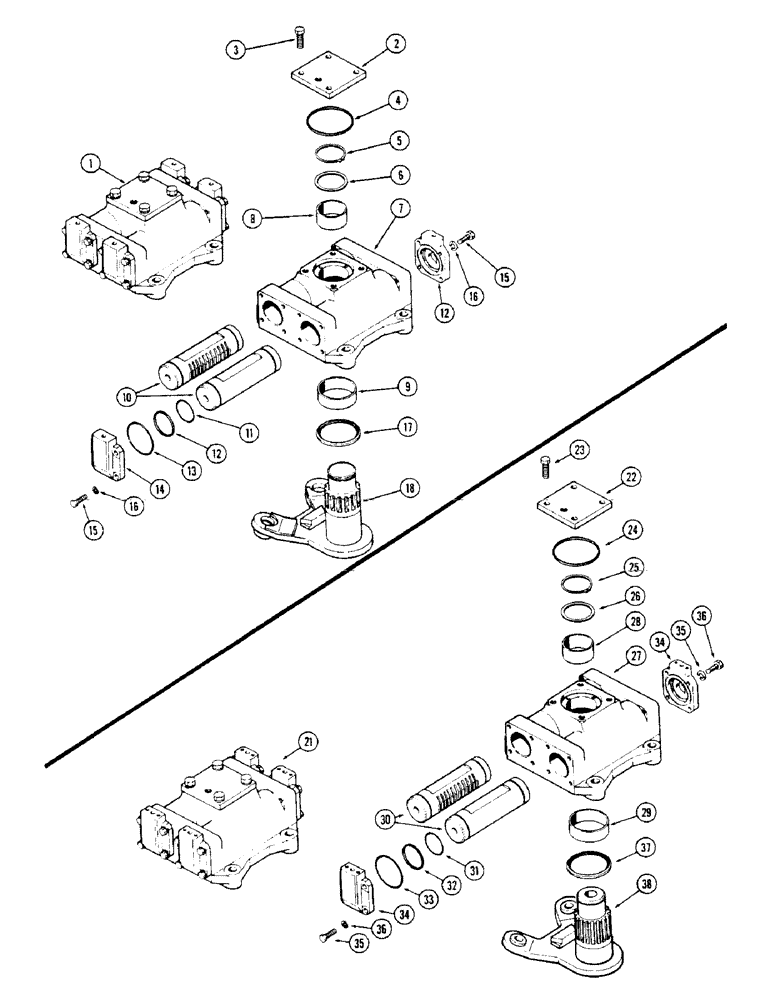

Схема запчастей Case IH 1175 - (087A) - A66604 STEERING ACTUATOR, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NUMBERS 8741587 TO 8757256 (05) - STEERING
15
35
4
36
32
22
31
15
12
11
24
23
37
14
8
5
33
3
30
1
27
26
28
7
2
13
6
18
29
38
16
12
36
10
17
34
35
9
16
25
34
21

Артикул

Название

Примечание

Количество

1

A66604

ACTUATOR

ASSY. - steering, Includes: Ref. 2 - 18, Serial Range: 8741587-8757256

1шт.

2

A60218

COVER

- top, housing, Serial Range: 8741587-8757256

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

, Serial Range: 8741587-8757256

4шт.

4

A60219

SEALING RING

"O" RING - cover seal, 4 x 4-17/64 x 9/64", Serial Range: 8741587-8757256

1шт.

Included w/ SEAL KIT, A42399

1шт.

5

A60216

SNAP RING,#250, Ext

Ring, Snap, , spindle #250, Ext, Serial Range: 8741587-8757256

1шт.

6

A60215

WASHER

- thrust, spindle, Serial Range: 8741587-8757256

1шт.

7

A64506

HOUSING - actuator (Order A60209), Includes: Ref. 8 and 9, Serial Range: 8741587-8757256

1шт.

8

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64", Serial Range: 8741587-8757256

1шт.

9

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32", Serial Range: 8741587-8757256

1шт.

10

A64908

PISTON

- actuator (Replaces A59285), Serial Range: 8741587-8757256

2шт.

11

A60212

O-RING

"O" RING -piston, 1-5/16 x 2-1/8 x 3/32", Serial Range: 8741587-8757256

4шт.

Included w/ SEAL KIT, A42399

1шт.

12

A60213

RING

- seal, piston, Serial Range: 8741587-8757256

4шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - cover seal, 2-7/8 x 3-1/8 x 1/8", Serial Range: 8741587-8757256

4шт.

Included w/ SEAL KIT, A42399

1шт.

14

A66605

COVER

- end, Serial Range: 8741587-8757256

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex, Serial Range: 8741587-8757256

16шт.

16

92-6

LOCK WASHER,3/8"

, Serial Range: 8741587-8757256

16шт.

17

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8"), Serial Range: 8741587-8757256

1шт.

Included w/ SEAL KIT, A42399

1шт.

18

A66466

STEERING KNUCKLE

SPINDLE - actuator, Serial Range: 8741587-8757256

1шт.

A42399

SEAL

KIT - actuator, Includes: Ref. 4, 11, 13 and 17, Serial Range: 8741587-8757256

1шт.

21

A66494

ACTUATOR

ASSY. - steering (Order A66716), Includes: Ref. 22 - 38

1шт.

22

A60218

COVER

- top, housing

1шт.

23

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

24

A60219

SEALING RING

"O"RING - cover seal, 4 x 4-17/64 x 9/64"

1шт.

Included w/ SEAL KIT, A42399

1шт.

25

A60216

SNAP RING,#250, Ext

Ring, Snap, , spindle #250, Ext

1шт.

26

A60215

WASHER

- thrust, spindle

1шт.

27

A64506

HOUSING - actuator (Order A60209), Includes: Ref. 28 and 29

1шт.

28

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

29

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

30

A64908

PISTON

- actuator (Replaces A59285)

2шт.

31

A60212

O-RING

"O" RING - piston, 1-5/16 x 2-1/8 x 3/32"

4шт.

Included w/ SEAL KIT, A42399

1шт.

32

A60213

RING

- seal, piston

4шт.

Included w/ SEAL KIT, A42399

1шт.

33

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - cover seal, 2-7/8 x 3-1/8 x 1/8"

4шт.

Included w/ SEAL KIT, A42399

1шт.

34

A59533

COVER

- end

4шт.

35

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex

16шт.

36

92-6

LOCK WASHER,3/8"

16шт.

37

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8")

1шт.

Included w/ SEAL KIT, A42399

1шт.

38

A66466

STEERING KNUCKLE

SPINDLE - actuator

1шт.

A42399

SEAL

KIT - actuator, Includes: Ref. 24, 31 - 33 and 37

1шт.
