Запчасти Case IH 1175 (085G) - STEERING PUMP UPPER COVER AND SEALS (05) - STEERING

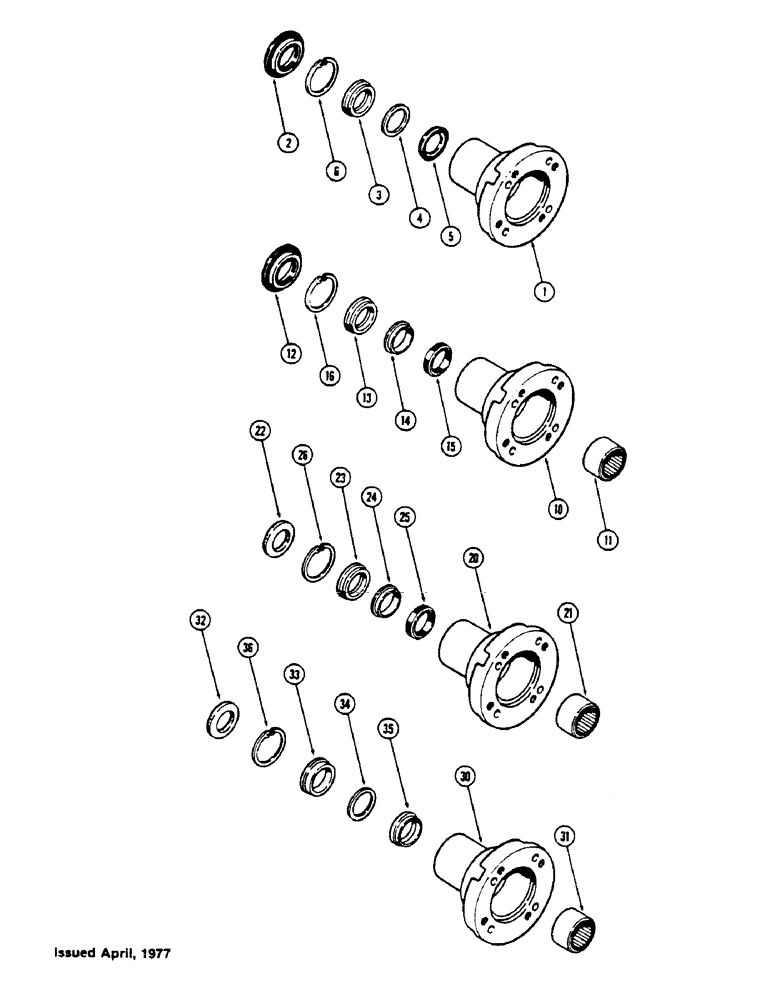

Схема запчастей Case IH 1175 - (085G) - STEERING PUMP UPPER COVER AND SEALS (05) - STEERING
31
20
14
5
6
26
30
12
2
22
32
36
13
33
1
34
21
11
23
35
25
4
16
18
24
15
3

Артикул

Название

Примечание

Количество

1

D65139

COVER

ASSY. - upper (Replaces A43562), Start Serial: 8786013

1шт.

A45535

KIT

- seal, shaft (Replaces A45272), Includes: Ref. 2 - 5, Start Serial: 8786013

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - dirt (plastic), Start Serial: 8786013

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - seal, Start Serial: 8786013

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, Start Serial: 8786013

1шт.

5

NSS

NOT SOLD SEPARAT

RING - seal, Start Serial: 8786013

1шт.

6

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, Start Serial: 8786013

1шт.

10

A43562

ASSY. - upper (Order D65139), Includes: Ref. 11, Serial Range: 8736747-8786013

1шт.

11

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, Serial Range: 8736747-8786013

1шт.

A45272

KIT

- seal, shaft (Replaces A44582) (Order A45535), Includes: Ref. 12 - 15, Serial Range: 8736747-8786013

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - dirt (plastic), Serial Range: 8736747-8786013

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - seal, Serial Range: 8736747-8786013

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, Serial Range: 8736747-8786013

1шт.

15

NSS

NOT SOLD SEPARAT

RING - seal, Serial Range: 8736747-8786013

1шт.

16

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, Serial Range: 8736747-8786013

1шт.

20

A43562

ASSY. - upper (Order D65139), Includes: Ref. 21, Serial Range: 8727973-8736747

1шт.

21

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, Serial Range: 8727973-8736747

1шт.

A44582

REPAIR KIT

KIT - seal, shaft (Order A45535), Includes: Ref. 22 - 25, Serial Range: 8727973-8736747

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - felt, Serial Range: 8727973-8736747

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER - seal, Serial Range: 8727973-8736747

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - shaft, Serial Range: 8727973-8736747

1шт.

25

NSS

NOT SOLD SEPARAT

RING - shaft seal, Serial Range: 8727973-8736747

1шт.

26

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, Serial Range: 8727973-8736747

1шт.

30

A43562

ASSY. - upper (Order D65139), Includes: Ref. 31, Serial Range: -8727973

1шт.

31

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle, Serial Range: -8727973

1шт.

A40624

SEAL

KIT - seal, drive shaft, Includes: Ref. 32 - 35, Serial Range: -8727973

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - felt, Serial Range: -8727973

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - spacer, Serial Range: -8727973

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - back-up, Serial Range: -8727973

1шт.

35

NSS

NOT SOLD SEPARAT

PACKING - shaft, Serial Range: -8727973

1шт.

36

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, Serial Range: -8727973

1шт.

Выбрано товаров: 31
