Запчасти Case IH 1175 (085C) - A66390 STEERING PUMP, USED TRACTOR SERIAL NUMBERS 8727973 TO 8736747 (05) - STEERING

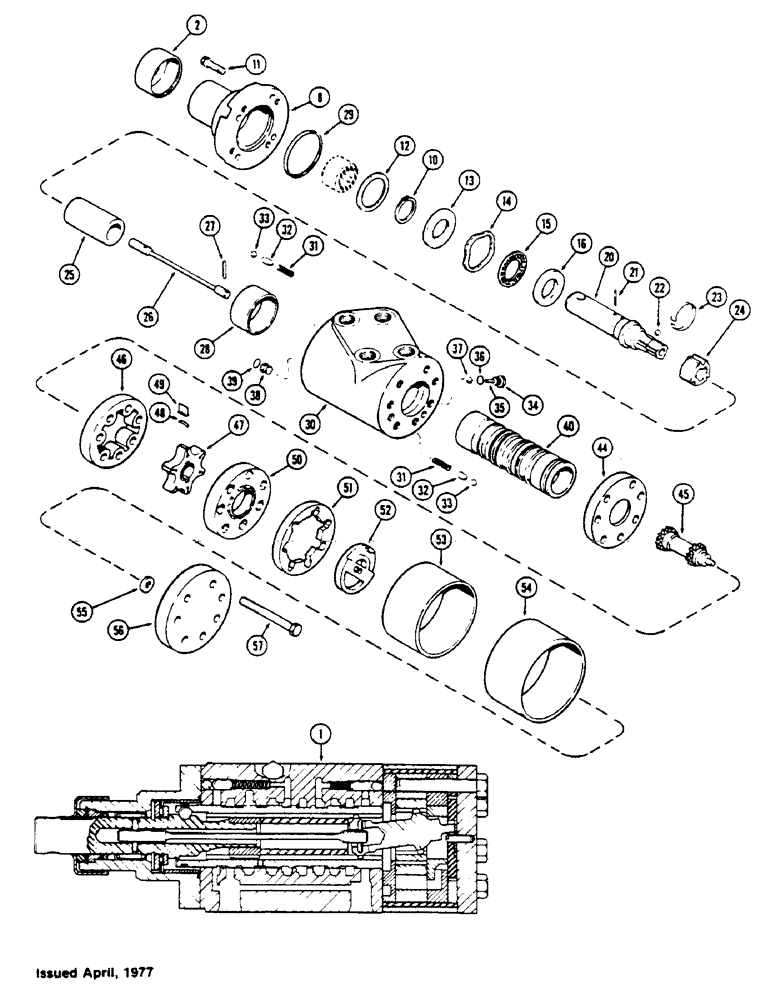

Схема запчастей Case IH 1175 - (085C) - A66390 STEERING PUMP, USED TRACTOR SERIAL NUMBERS 8727973 TO 8736747 (05) - STEERING
28
25
46
13
36
39
33
12
1
14
57
11
48
38
16
15
52
27
24
55
53
22
54
35
37
26
10
49
44
45
2
21
34
30
31
56
32
23
47
33
32
6
29
20
50
40
31
51

Артикул

Название

Примечание

Количество

1

A66390

PUMP

ASSY. - steering, Includes: Ref. 2 - 57

1шт.

2

A42057

SEAL

SHIELD - shaft seal

1шт.

8

NSS

NOT SOLD SEPARAT

COVER ASSY. AND SEALS (See Figure 085G)

1шт.

10

A43720

RING

- snap, bearing retainer

1шт.

11

A43567

BOLT

- upper cover

4шт.

12

A44435

SHIM

KIT - bearing, shim

1шт.

13

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

14

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring

1шт.

15

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover bearing

1шт.

16

F19634

BEARING WASHER

WASHER - thrust, bearing

1шт.

20

A43551

SHAFT

- input

1шт.

21

D53297

PIN

- torsion, Serial Range: bar-shaft

1шт.

22

211-9

BALL,5/16" Dia

- 5/16" Dia

1шт.

23

A43560

SPRING

RETAINER - ball

1шт.

24

A43554

RING

- drive

1шт.

25

A43555

SPACER

- drive link, 2-3/32" long

1шт.

26

A43552

ROD

T-BAR ASSY. - torsion (orange tip), Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

28

A43728

SPACER

- shaft pre-load spring

1шт.

29

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

32

NSS

NOT SOLD SEPARAT

ROLLER - check spring

2шт.

33

211-7

BALL,1/4" Dia

3шт.

F82943

VALVE

KIT - relief plug, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

35

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

36

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

37

211-7

BALL,1/4" Dia

1шт.

38

A43565

PLUG

- port, body

1шт.

39

A43729

O-RING

- plug

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

44

A43569

BUSHING

PLATE - spacer

1шт.

45

A43568

LINK

- drive

1шт.

46

NSS

NOT SOLD SEPARAT

STATOR

1шт.

47

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

A43570

ROTOR

SET, Includes: Ref. 48

1шт.

48

A42219

SPRING

- vane

6шт.

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

50

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY, Includes: Ref. 51 and 52

1шт.

51

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

52

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

53

A43577

SEAL

- rotor

1шт.

54

A43578

RETAINER

- rotor seal

1шт.

55

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - drive link bearing

1шт.

56

A43580

COVER

- end, rotor

1шт.

57

A43581

BOLT

- 5/16 x 2-3/4" N.C. hex

7шт.

Выбрано товаров: 48
