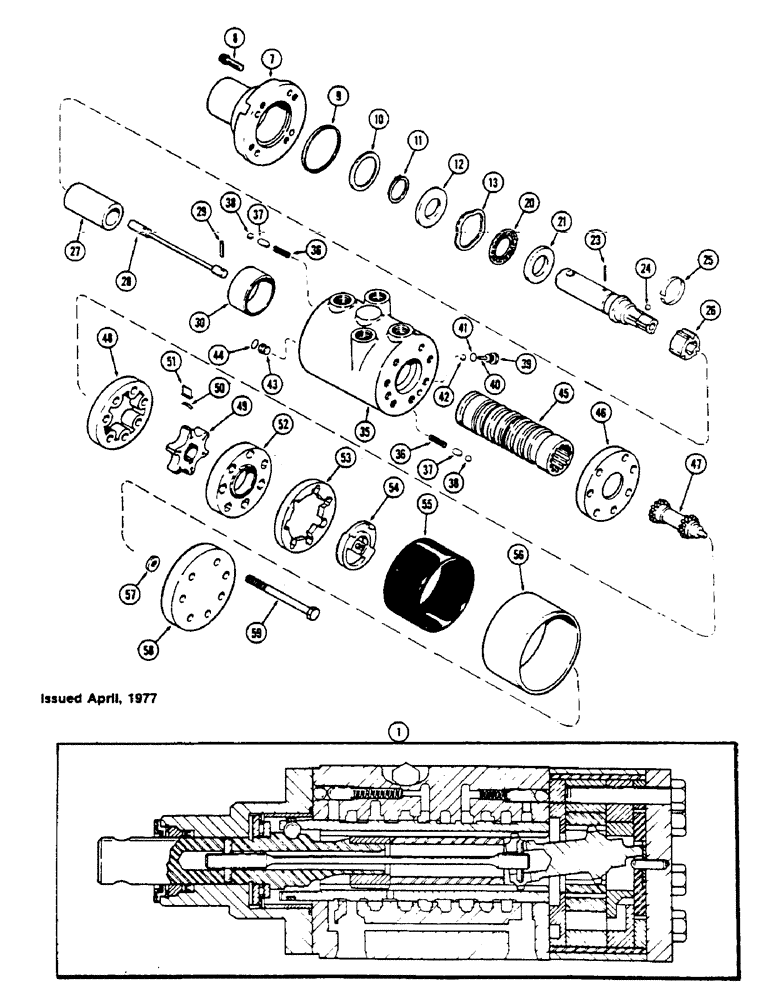

Запчасти Case IH 1175 (084) - A141904 STEERING PUMP, FIRST USED TRACTOR SERIAL NUMBER 8786013 (05) - STEERING

1

A141904

PUMP

ASSY. - steering control (Replaces A139840), Includes: Ref. 7 - 59

1шт.

7

NSS

NOT SOLD SEPARAT

COVER ASSY. AND SEALS - (See Figure 085G)

1шт.

8

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

BOLT - end top cover

4шт.

9

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

10

A44435

SHIM

KIT - end cover (.005")

4шт.

11

A43720

RING

- thrust washer retainer

1шт.

12

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, outer

1шт.

13

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave spring

1шт.

20

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust

1шт.

21

F19634

BEARING WASHER

WASHER - thrust, inner

1шт.

22

A43551

SHAFT

- input

1шт.

23

D53297

PIN

- retaining, torsion, Serial Range: bar-shaft

1шт.

24

211-9

BALL,5/16" Dia

- 5/16" Dia

1шт.

25

A43560

SPRING

RETAINER - ball, pre-load spring

1шт.

26

A43554

RING

- drive

1шт.

27

A43719

SPACER

- drive link

1шт.

28

A43552

ROD

T-BAR ASSY. - torsion, Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

30

A43728

SPACER

- shaft pre-load spring

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

37

NSS

NOT SOLD SEPARAT

ROLLER - housing

2шт.

38

NSS

NOT SOLD SEPARAT

BALL - 9/32" dia

3шт.

39

F82943

VALVE

PLUG ASSY. - relief, Includes: Ref. 40 and 41

1шт.

40

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

41

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

42

211-7

BALL,1/4" Dia

1шт.

43

A43565

PLUG

- porting, body

1шт.

44

A43729

O-RING

- plug

1шт.

45

NSS

NOT SOLD SEPARAT

VALVE - spool

1шт.

46

A43569

BUSHING

PLATE - spacer

1шт.

47

A43568

LINK

- drive

1шт.

48

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

49

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

A45260

ROTOR

SET - pump, Includes: Ref. 50 and 51

1шт.

50

A42219

SPRING

- vane

6шт.

51

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

52

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY. - pump, Includes: Ref. 53 and 54

1шт.

53

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

54

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump

1шт.

55

A45001

SEAL

- rotor (Replaces A43725)

1шт.

56

A45278

RETAINER

- rotor seal

1шт.

57

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

58

A43580

COVER

END COVER - rotor (Incl. pin)

1шт.

59

A43727

BOLT

- sealing, end cover

7шт.
