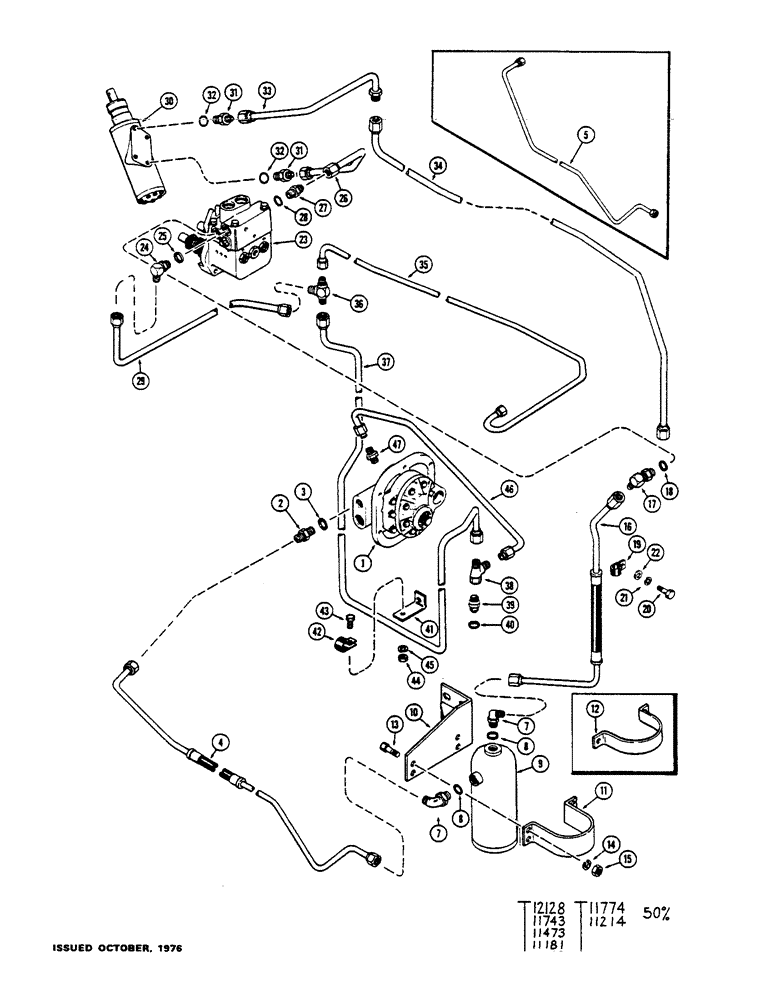

Запчасти Case IH 1175 (083A) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES, USED PRIOR TO TRACTOR SERIAL NUMBER 8715247 (05) - STEERING

1

A62051

PUMP

ASSY. - dual hydraulic (See Figure 166)

1шт.

1

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Tube to pump, 3/4" tube x 1-1/16", Incl. Ref 3

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

A143170

TUBE

Pump to filter (Replaces A67072 and A64478) (1st used trans. S/N 10035537)

1шт.

5

A67072

TUBE

Pump to filter (Replaces A64478) (Order A143170) to trans., Serial Range: -10035537

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Filter, 1/2" tube x 3/4"-16, Includes: Ref. 8

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

FILTER ASSY. - hydraulic oil (Repairs Figure 088)

1шт.

10

A62650

BRACKET

Filter mounting

1шт.

11

A60857

SPARE PART Filter (Order A65004)

1шт.

12

A65004

SPARE PART Filter (1st used trans. S/N 2397230)

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

4шт.

16

A62370

HOSE

TUBE - filter to brake valve

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Brake valve, 1/2" tube x 3/4"-16, Includes: Ref. 18

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

49833

CLAMP

Tube, filter to brake valve

1шт.

20

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

21

92-4

LOCK WASHER,1/4"

1шт.

22

95-4

WASHER,1/4"

Plain, 5/16 x 3/4 x 1/16"

1шт.

23

REF

INSTRUCTION

VALVE ASSY. - brake (See Figure 132)

1шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Valve, 1/2" tube x 3/4"-16, Includes: Ref. 25

1шт.

25

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

A64525

TUBE

Pressure-brake, Serial Range: valve-pump

1шт.

27

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Valve, 1/2" tube x 3/4"-16, Incl. Ref 28

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

A65037

SPARE PART Brake valve to tee (Replaces A64526)

1шт.

30

REF

INSTRUCTION

PUMP ASSY. - steering (See Figures 084 and 085A)

1шт.

31

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Tube to pump, Includes: Ref. 32

2шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

A64528

TUBE

SPARE PART Pump to oil cooler tube

1шт.

34

A64521

TUBE

Oil cooler (to pump)

1шт.

35

A64523

TUBE

Oil cooler (to tee)

1шт.

36

218-594

TEE,3/4"-16, 37 Degree

Junction, 3/4"-16

1шт.

37

A65038

TUBE

Tee to clutch housing (Replaces A64535)

1шт.

38

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

39

A62392

SPARE PART Restricting, clutch housing, Includes: Ref. 40

1шт.

40

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

41

A64710

BRACKET

Tube clamp

1шт.

42

49838

CLAMP

Tube

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

A62454

SPARE PART, Serial Range: Pump-housing

1шт.

47

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

Tube to pump, 1/2" tube x 1/4" P.T.

1шт.
