Запчасти Case IH 1175 (081C) - HYDROSTATIC STEERING SYSTEM, USED PRIOR TO TRACTOR SERIAL NUMBER 8736747 (05) - STEERING

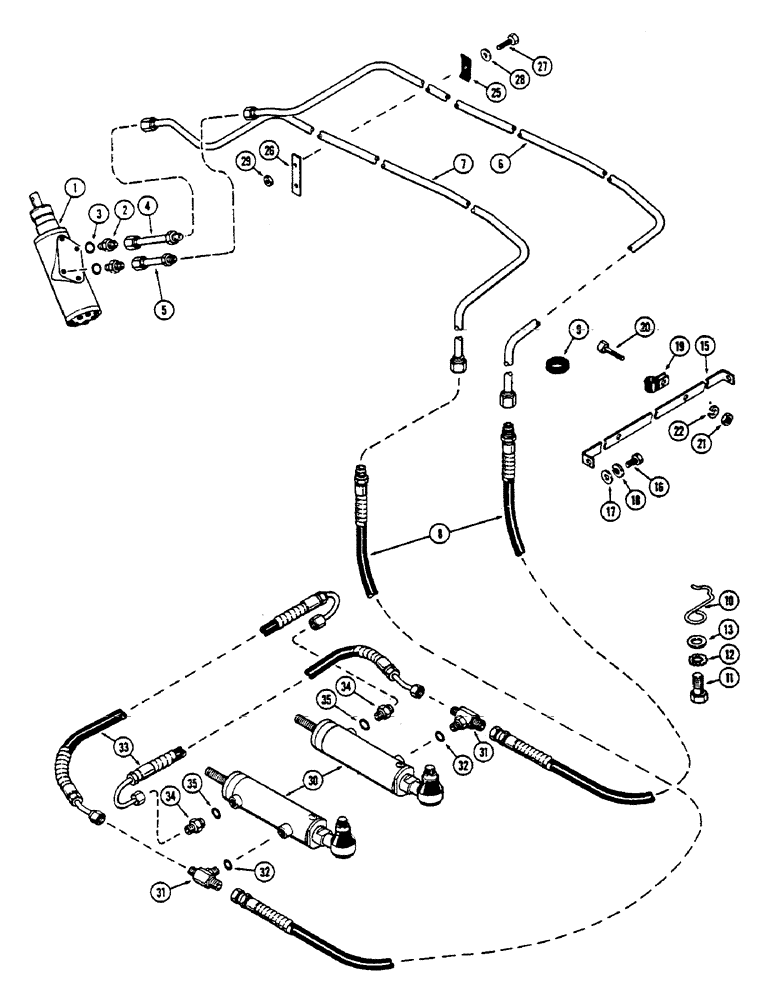

Схема запчастей Case IH 1175 - (081C) - HYDROSTATIC STEERING SYSTEM, USED PRIOR TO TRACTOR SERIAL NUMBER 8736747 (05) - STEERING
13
12
29
31
16
11
1
9
34
35
22
30
4
25
2
26
33
32
15
26
18
10
3
7
34
31
19
20
8
17
6
21
32
27
35
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSY. - steering (See Figures 084 and 085A)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Tube to pump, Includes: Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

A135522

SPARE PART LH turn (6-1/2" long)

1шт.

5

A64501

TUBE

SPARE PART RH turn (5" long)

1шт.

6

A65036

SPARE PART RH turn, pump tube to cyl. hose

1шт.

7

A65035

SPARE PART LH turn, pump tube to cyl. hose

1шт.

8

A64513

SPARE PART, Serial Range: Tube-cylinder

2шт.

9

A27519

GROMMET

Hose (1" I.D.)

2шт.

10

A61453

SUPPORT - hose

2шт.

11

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

12

A34651

LOCK WASHER

Lock

2шт.

13

195-45

WASHER,3/4"

2шт.

15

A61087

SUPPORT

Clamp, Serial Range: tube-grille

1шт.

16

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

17

195-128

WASHER,5/16"

3/8 x 1-1/8 x 5/64"

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

49838

CLAMP

Tube

2шт.

20

113-29

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

195-127

WASHER - 5/16 x 3/4 x 1/16"

2шт.

25

A60404

CLIP

Tube

2шт.

26

A60223

SPARE PART Support, tube clip

1шт.

27

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

28

195-18

WASHER,1/4"

9/32 x 5/8 x 3/64"

2шт.

29

25-104

NUT,1/4"-20, G5

2шт.

30

A62067

CYLINDER

ASSY, Steering (Repairs Page 87A)

2шт.

31

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

Hose fitting (1/2 x 3/8 x 3/8"), Includes: Ref. 32

2шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

A62360

TUBE ASSY.

HOSE - crossover, cylinder

2шт.

34

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Hose, 3/8" tube flare x 9/16"-18, Incl. Ref. 35

2шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 32
