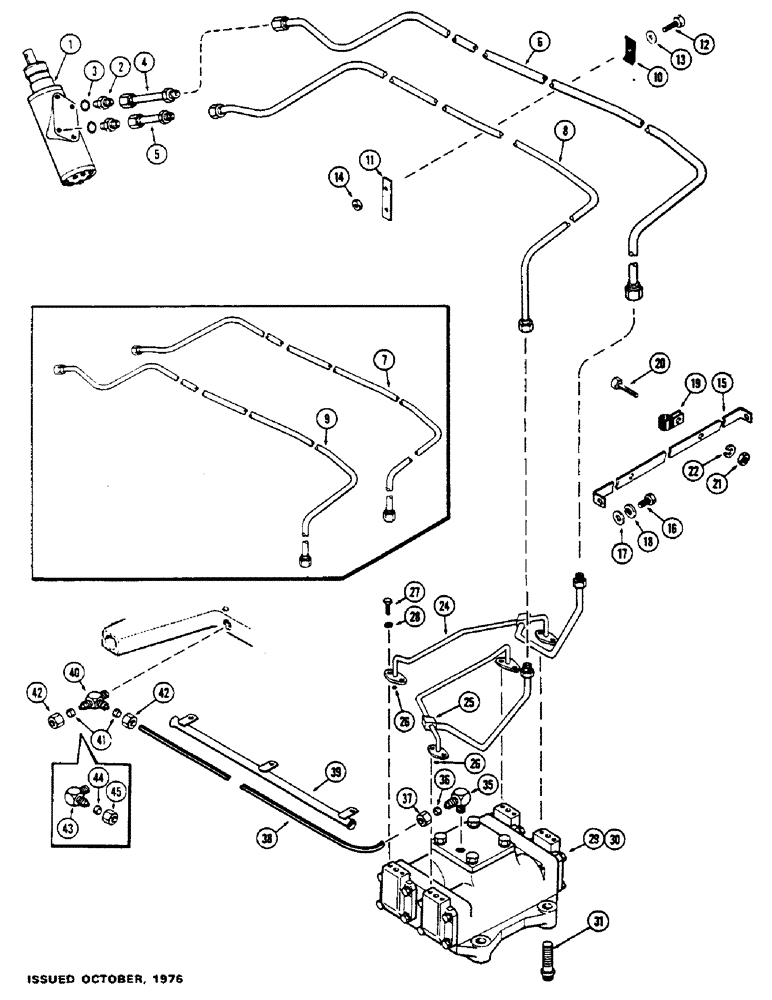

Запчасти Case IH 1175 (081A) - HYDROSTATIC STEERING SYSTEM, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NOS. 8736747 TO 8741587 (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSY. - steering (See Figure 084)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Tube to pump, Includes: Ref. 3

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

A135522

SPARE PART LH turn (6-1/2" long)

1шт.

5

A64501

TUBE

SPARE PART RH turn (5" long)

1шт.

6

A64516

TUBE

RH turn, pump to crossover (1st used trac. S/N 8736747)

1шт.

7

A65036

SPARE PART RH turn, pump to crossover to trac., Serial Range: -8736747

1шт.

8

A64905

SPARE PART LH turn, pump to crossover (1st used trac. S/N 8736747)

1шт.

9

A65035

SPARE PART LH turn, pump to crossover to trac., Serial Range: -8736747

1шт.

10

A60404

CLIP

Tube

2шт.

11

A60223

SPARE PART Support, tube clip

1шт.

12

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

13

195-18

WASHER,1/4"

9/32 x 5/8 x 3/64"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

A61087

SUPPORT

Clamp, Serial Range: tube-grille

1шт.

16

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

17

195-128

WASHER,5/16"

3/8 x 1-1/8 x 5/64"

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

49838

CLAMP

Tube

2шт.

20

113-29

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

195-127

WASHER - 5/16 x 3/4 x 1/16"

2шт.

24

A64514

TUBE

ASSY. - crossover, RH turn

1шт.

25

A64515

TUBE

ASSY. - crossover, LH turn

1шт.

26

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

1/2 x 11/16 x 3/32"

4шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

28

92-5

LOCK WASHER,5/16"

8шт.

30

REF

INSTRUCTION

ACTUATOR ASSY. - (See Figure 086)

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

3/4 x 2-1/2" N.C. ferry hd. cap

4шт.

35

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

90 Degrees, 3/8" O.D. x 1/4" P.T., Includes: Ref. 36 and 37

1шт.

36

222-5186

SLEEVE,3/8" Tube

1шт.

37

222-5181

NUT,9/16"-24

For 3/8" tube

1шт.

38

A60771

TUBE

Nylon, Serial Range: actuator-trans.

1шт.

39

A59930

TUBE

Conduit

1шт.

40

222-5120

TEE,7/16"-24 x 1/4" NPT Run

Reducing, 3/8" O.D. x 1/4" P.T. (w/power brakes), Includes: Ref. 41 and 42

1шт.

41

222-5186

SLEEVE,3/8" Tube

2шт.

42

222-5181

NUT,9/16"-24

For 3/8" tube

2шт.

43

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

3/8" O.D. x 1/4" P.T. (w/hydraulic brakes), Includes: Ref. 44 and 45

1шт.

44

222-5186

SLEEVE,3/8" Tube

1шт.

45

222-5181

NUT,9/16"-24

For 3/8" tube

1шт.

46

REF

INSTRUCTION

COVER - transmission (See Figure 110)

1шт.
