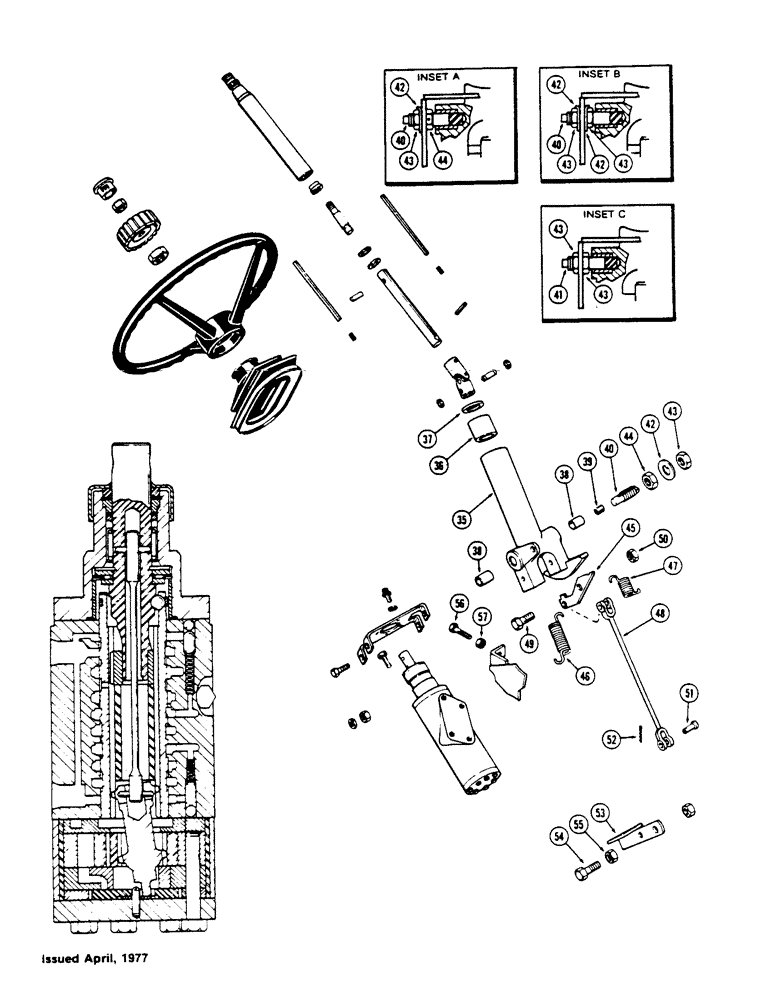

Запчасти Case IH 1175 (079A) - ADJUSTABLE STEERING COLUMN (05) - STEERING

A64122

STEERING ASSY

COLUMN ASSY. - steering, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

COLUMN - (Order A64122)

1шт.

36

A59808

BEARING

- steering shaft

1шт.

37

A61736

WIPER SEAL

- wiper, steering shaft

1шт.

38

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

- tilt pivot

2шт.

39

A59842

BUMPER

SNUBBER - pivot, steering column

1шт.

40

A137354

STUD

- pivot, w/tongue groove (1st used trac. ser. no. 8769831) (See Insets A and B)

2шт.

41

A59163

STUD

- pivot (Order A137354 and A137355) to trac. (See Inset C), Serial Range: -8769831

2шт.

42

A137355

WASHER

- pivot stud tongued (4 used trac. ser. nos. 8769831 to 8793790) (See Insets A and B)

1шт.

43

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex. (4 used to trac.) (See Insets), Serial Range: -8793790

1шт.

44

131-1113

JAM NUT,Jam, 5/8"-11

NUT - 5/8" hex. lock, gripco (1st used trac. ser. no. 8793790) (See Inset A)

2шт.

45

A64338

LATCH

- tilt control, steering column

1шт.

46

A63690

SPRING

- return, tilt

1шт.

47

A64125

SPRING

- tilt latch

1шт.

48

A64549

ROD

- tilt control

1шт.

49

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Rod to latch Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

50

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

51

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Rod to pedal 3/8" x 1.060"

1шт.

52

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

53

A64127

PEDAL

- tilt control

1шт.

54

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Pedal Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

55

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

56

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- stop, 5/16 x 1-1/2" N.C. hex

1шт.

57

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 5/16 x N.C. hex

1шт.
