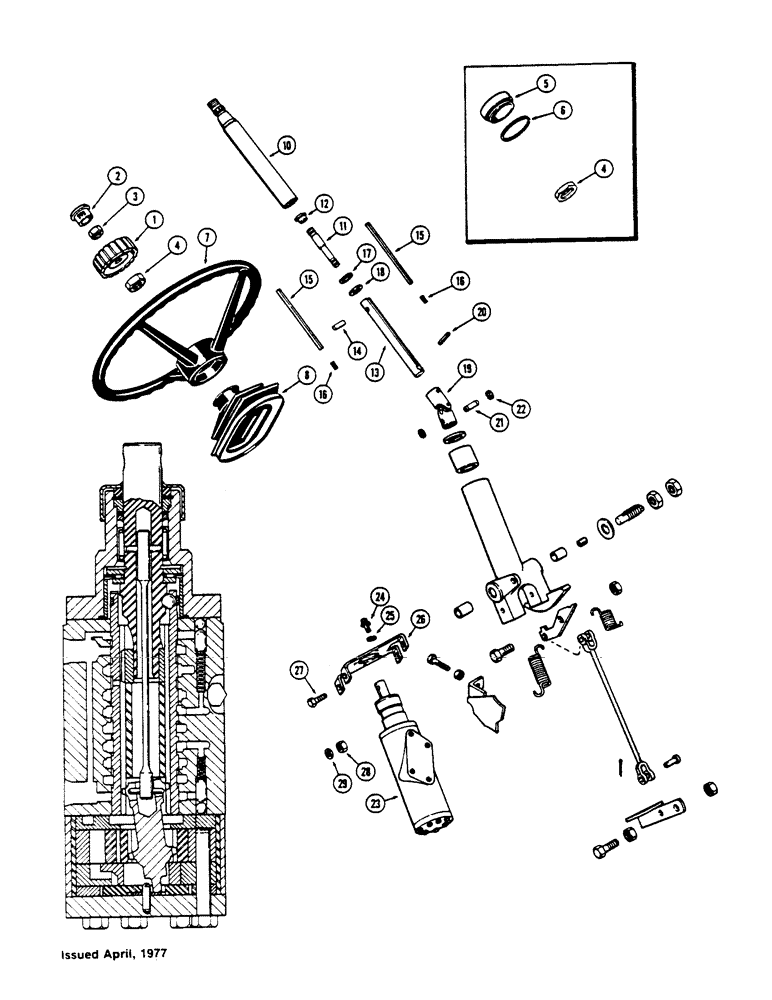

Запчасти Case IH 1175 (078) - ADJUSTABLE STEERING COLUMN (05) - STEERING

1

A141827

CAP

KNOB - lock, steering wheel (1st used trac. S/N 8808494)

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

PLUG - nylon, heyco (Used w/A141827 knob)

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

(Used w/A141827 knob)

1шт.

4

A14567

JAM NUT

Steering, Serial Range: wheel-shaft

1шт.

5

A62210

PLUG

MEDALLION - steering wheel to trac., Serial Range: -8808494

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

O-RING - 2-1/8 x 2-3/8 x 1/8" (Used w/A62210 medallion)

1шт.

7

A65544

STEERING WHEEL

1шт.

8

A61910

BOOT

Rubber, steering column

1шт.

10

A63681

SHAFT

Steering, outer

1шт.

11

A63683

SHAFT

Steering, inner lock

1шт.

12

A63684

LOCK NUT

Lock shaft

1шт.

13

A63697

SHAFT

Steering, inner telescoping

1шт.

14

A63685

PIN

Lock, telescoping shaft

1шт.

15

A63686

KEY

Inner shaft

2шт.

16

A63687

LOCK

Friction, telescoping shaft

2шт.

17

A63688

FRICTION WASHER

Friction, shaft retaining

1шт.

18

A58116

RING

Snap, washer

1шт.

19

A63689

JOINT

Universal, steering shaft

1шт.

20

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

1шт.

21

A64000

PIN,9.42mm OD x 38.1mm L

Universal to pump shaft

1шт.

22

A27795

RING

"E" - pin retaining

2шт.

23

REF

INSTRUCTION

PUMP ASSY, steering (See Figures 084 and 085A)

1шт.

24

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

Ferry

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

A65562

BRACKET

Pump mounting (Replaces A64121)

1шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.
