Запчасти Case IH 1175 (076) - RIGID STEERING COLUMN (05) - STEERING

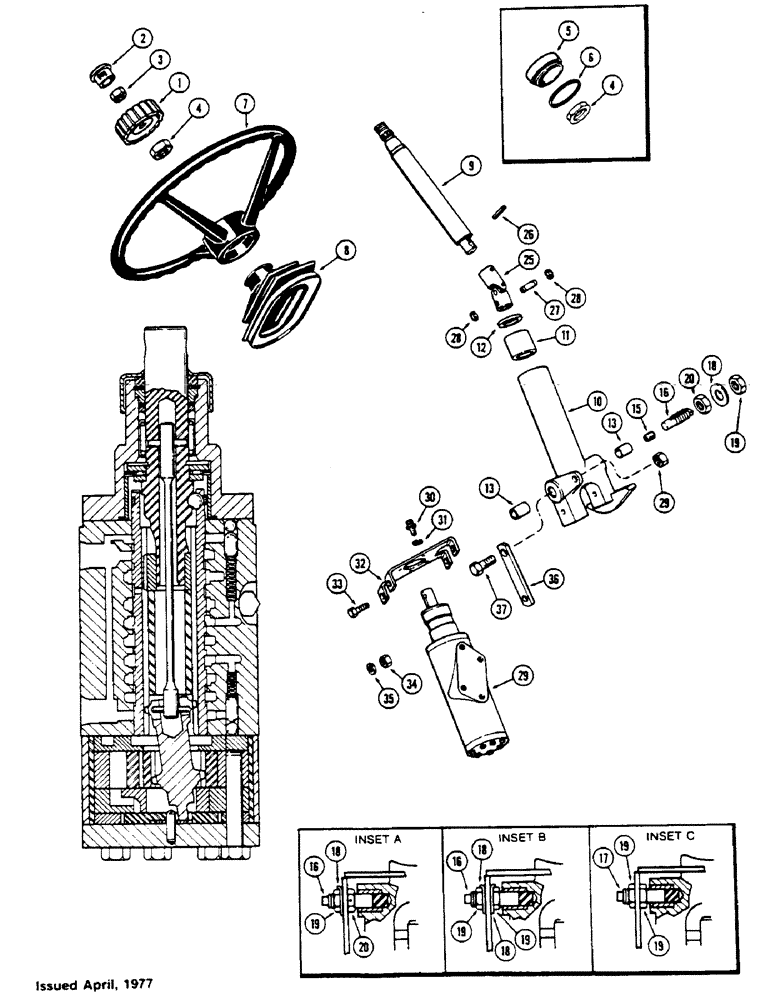

Схема запчастей Case IH 1175 - (076) - RIGID STEERING COLUMN (05) - STEERING
13
36
5
11
37
16
30
16
6
19
2
18
12
25
35
29
20
31
16
18
28
8
20
3
4
26
19
27
19
28
1
18
33
19
29
19
10
17
32
19
9
7
13
15
18
34
4

Артикул

Название

Примечание

Количество

1

A141827

CAP

KNOB - lock, steering wheel (1st used trac. S/N 8808494)

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

Nylon, Heyco (Used w/A141827 knob)

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

(Used w/A141827 knob)

1шт.

4

A14567

JAM NUT

Steering, Serial Range: wheel-shaft

1шт.

5

A62210

PLUG

MEDALLION - steering wheel to trac., Serial Range: -8808494

1шт.

6

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

(Used w/A62210 medallion)

1шт.

7

A65544

STEERING WHEEL

1шт.

8

A61910

BOOT

Steering column

1шт.

9

A64548

SPARE PART Steering wheel

1шт.

A64122

STEERING ASSY

COLUMN, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN - (Order A64122)

1шт.

11

A59808

BEARING

Steering shaft

1шт.

12

A61736

WIPER SEAL

Wiper, steering shaft

1шт.

13

A59809

BUSHING,12.8mm ID x 15.93mm OD x 25.4mm L

Pivot

2шт.

15

A59842

BUMPER

SNUBBER - pivot, steering column

1шт.

16

A137354

STUD

Pivot, w/tongue groove (1st used trac. S/N 8769831) (See Insets A and B)

2шт.

17

A59163

STUD

Pivot (Order A13, 354 and A137355) to trac. (See Inset C), Serial Range: -8769831

2шт.

18

A137355

WASHER

Pivot stud, tongued (4 used trac. S/N's 8769831 to 8793790) (See Insets A and B)

1шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

(4 used to trac. (See Insets), Serial Range: -8793790

1шт.

20

131-1113

JAM NUT,Jam, 5/8"-11

Hex, Gripco (1st used trac. S/N 8793790) (See Inset A)

2шт.

25

A63689

JOINT

Universal, Serial Range: shaft-pump

1шт.

26

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

1шт.

27

A64000

PIN,9.42mm OD x 38.1mm L

Joint to pump shaft

1шт.

28

A27795

RING

"E" - pin retaining

2шт.

29

REF

INSTRUCTION

PUMP ASSY, steering (See Figures 084 and 085A)

1шт.

30

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

Ferry

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

32

A65562

BRACKET

Pump mounting (Replaces A64121)

1шт.

33

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

34

9635082

NUT,5/16" - 18, Gr 5

Hex

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

A64550

SPARE PART Lock, steering column

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

Выбрано товаров: 33
