Запчасти Case IH 1175 (072) - CULTIVATING LAMPS (04) - ELECTRICAL SYSTEMS

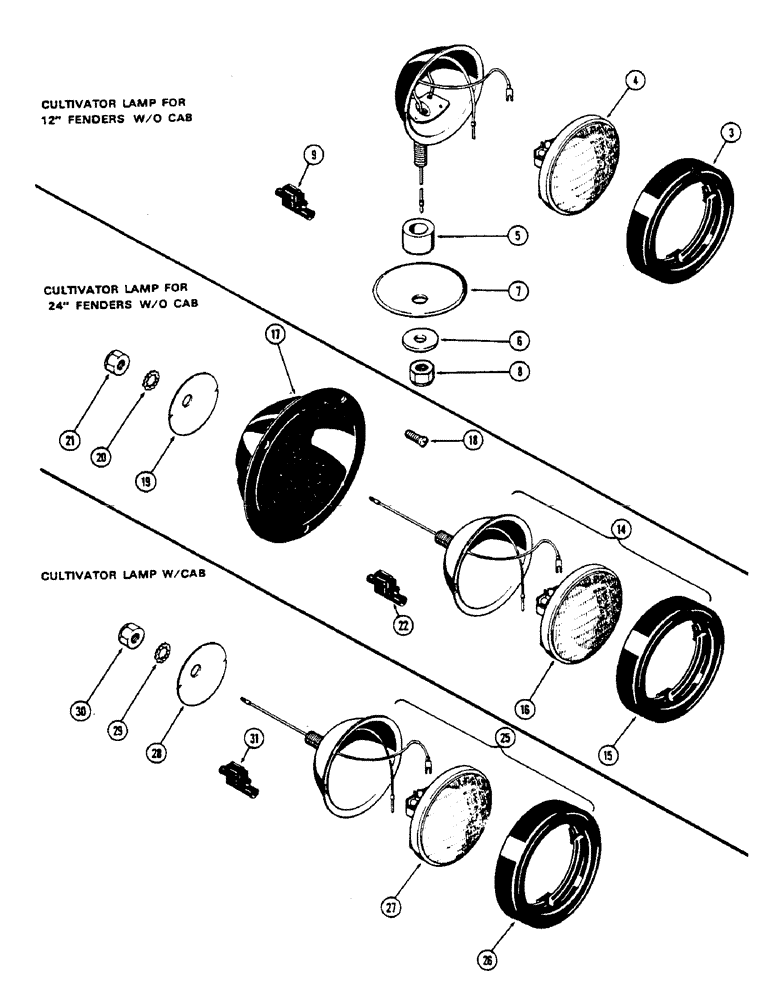

Схема запчастей Case IH 1175 - (072) - CULTIVATING LAMPS (04) - ELECTRICAL SYSTEMS
27
3
9
26
15
21
16
25
31
29
18
8
19
20
22
7
6
17
14
5
30
28
4

Артикул

Название

Примечание

Количество

A60510

LAMP

ATTACHMENT - lamp, cultivating, 12" fender W/O Cab, Includes: Ref. 3 - 9

1шт.

A59724

HEADLAMP

LAMP ASSY. - cultivating, 12" fender W/O Cab, Includes: Ref. 3 - 5

2шт.

3

A25213

RETAINER

- sealed beam, 12" fender W/O Cab

1шт.

4

A42294

SEALED BEAM UNIT

LAMP - sealed unit, 12" fender W/O Cab

1шт.

5

D37048

BUSHING

- pivot, lamp mounting, 12" fender W/O Cab

1шт.

6

D37049

WASHER

- mounting, 12" fender W/O Cab

2шт.

7

A59725

SPACER

BRACE - mounting, 12" fender W/O Cab

2шт.

8

129-125

NUT,1/2"-20, G5

12" fender w/o Cab 1/2"-20, G5

2шт.

9

A62556

CONNECTOR, ELEC

CONNECTOR - splice, 12" fender W/O Cab

2шт.

A60511

LAMP

ATTACHMENT - lamp, cultivating, 24" fender W/O Cab, Includes: Ref. 14 - 22

1шт.

14

A59723

LAMP

ASSY. - cultivating, 24" fender W/O Cab, Includes: Ref. 15 and 16

2шт.

15

A25213

RETAINER

- sealed beam, 24" fender W/O Cab

1шт.

16

A42294

SEALED BEAM UNIT

LAMP - sealed unit, 24" fender W/O Cab

1шт.

17

A59698

BEZEL

- mounting, R.H. lamp, 24" fender W/O Cab

1шт.

17

A59699

BEZEL

- mounting, L.H. lamp, 24" fender W/O Cab

1шт.

18

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - bezel, #10-24 x 1/2" rd. hd. self-tapping, 24" fender W/O Cab

6шт.

19

A59702

RETAINER

- lamp assy., 24" fender W/O Cab

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , for 24" fender, w/o Cab Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

24" fender w/o Cab 1/2"-13, G5

2шт.

22

A62556

CONNECTOR, ELEC

CONNECTOR - splice, 24" fender W/O Cab

2шт.

A61753

ATTACHMENT

- lamp, cultivating, with cab, Includes: Ref. 25 - 31

1шт.

25

A59723

LAMP

ASSY. - cultivating, with cab, Includes: Ref. 26 and 27

2шт.

26

A25213

RETAINER

- sealed beam, with cab

1шт.

27

A42294

SEALED BEAM UNIT

LAMP - sealed unit, with cab

1шт.

28

A59702

RETAINER

- lamp assy., with cab

2шт.

29

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/ Cab Ext-Int Tooth, 1/2"

2шт.

30

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

2шт.

31

A62556

CONNECTOR, ELEC

CONNECTOR - splice, with cab

2шт.

Выбрано товаров: 28
