Запчасти Case IH 1175 (070) - HEAD LAMP (04) - ELECTRICAL SYSTEMS

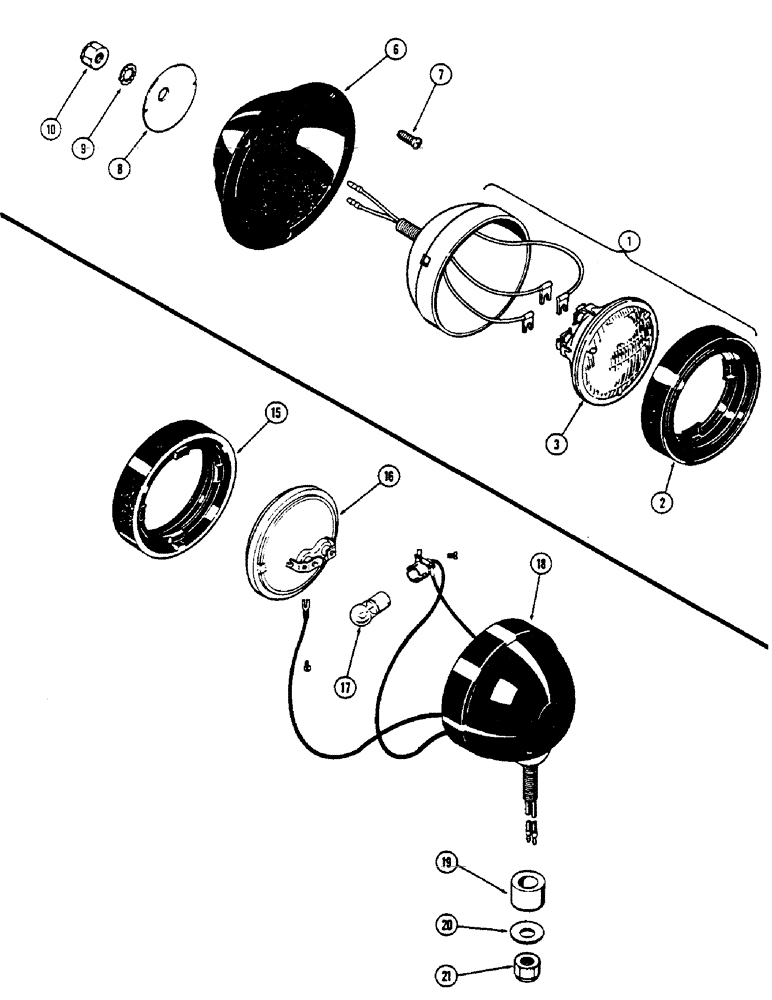

Схема запчастей Case IH 1175 - (070) - HEAD LAMP (04) - ELECTRICAL SYSTEMS
7
18
1
6
15
2
21
8
17
10
16
9
20
19
3

Артикул

Название

Примечание

Количество

1

A64498

LAMP

- front driving, Includes: Ref. 2 and 3

2шт.

2

A25213

RETAINER

- sealed beam

1шт.

3

A43712

LAMP

- sealed unit (Mfrs. #4457)

1шт.

6

A59698

BEZEL

- mounting, R.H. lamp (not used w/cab)

1шт.

6

A59699

BEZEL

- mounting, L.H. clamp (not used w/cab)

1шт.

7

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - bezel, #10-24 x 1/2" self-tapping

6шт.

8

A59702

RETAINER

- lamp assy.

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

A59703

LAMP

ASSY. - rear, tail and flood, Includes: Ref. 15 - 19

1шт.

15

A25213

RETAINER

- sealed beam, tail and flood lamp

1шт.

16

A42295

BULB

LAMP - sealed beam, tail and flood

12шт.

17

B50223

BULB

- red (Mfrs. #1003-R), tail and flood lamp

1шт.

18

NSS

NOT SOLD SEPARAT

BODY lamp (Order A59703), tail and flood

1шт.

19

D37048

BUSHING

- pivot, lamp mounting, tail and flood

1шт.

20

129-125

NUT,1/2"-20, G5

Tail and flood lamp 1/2"-20, G5

1шт.

21

D37049

WASHER

- wave, mounting nut, tail and flood lamp

1шт.

Выбрано товаров: 17
